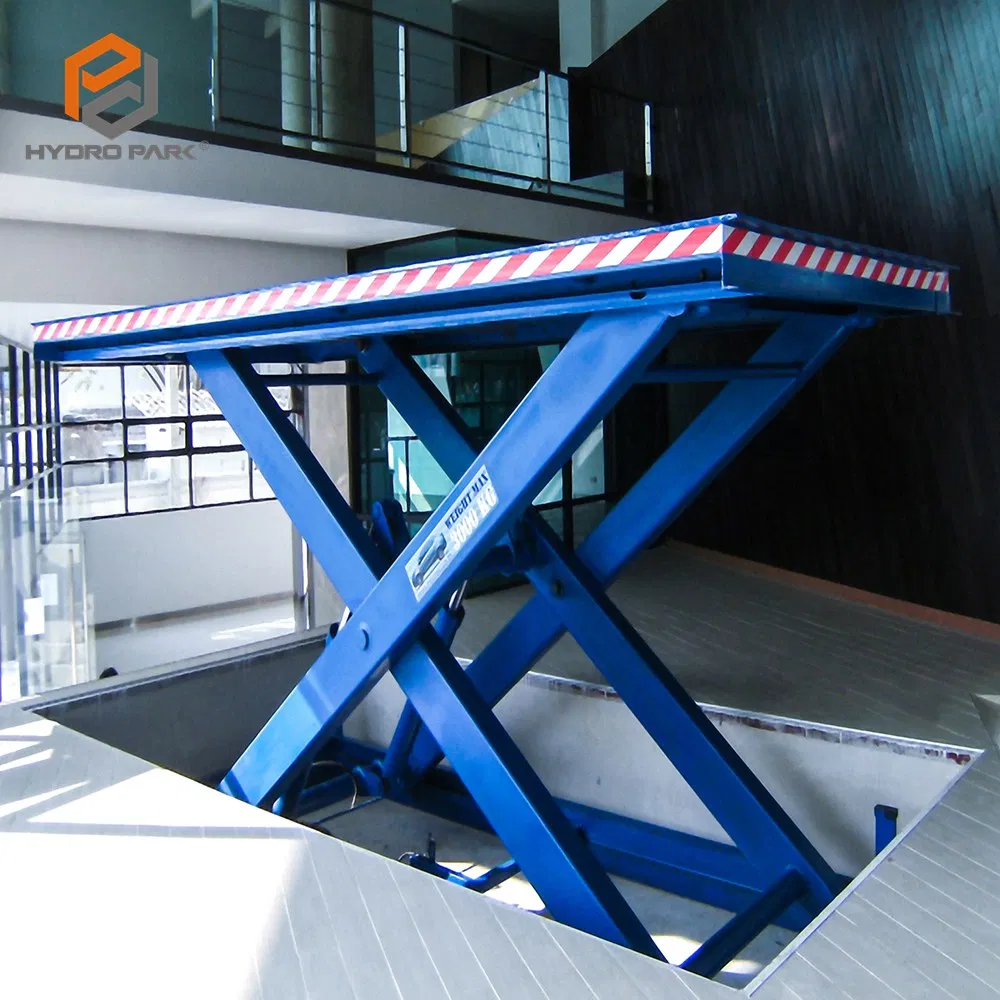

Vertical Double Deck Lifting Platform Car Parking Hydraulic Scissors Car Lift

Customization: Available
After-sales Service: 12 Months
Warranty: 1 Year, 1 Year

Product Description

Technical Specifications

Model NO.
SVRC
Type
Hydraulic Cylinders, Hydraulic Parking System
Lifting Capacity
2,000-10,000 Kg
Driving Type
Hydraulic
Certification
CE, ISO
Lift Type
Scissor Car Lift
Condition
New
Design
Four Post, Scissor
Lifting Height
up to 13.0m
Rated Capacity
up to 10tons
Platform Length
up to 6.0m
Power Pack
5.5/7.5kw
Speed
4m/Min
Finishing
Powder Coating
HS Code
84289020
Production
210 Units/Month

Product Overview

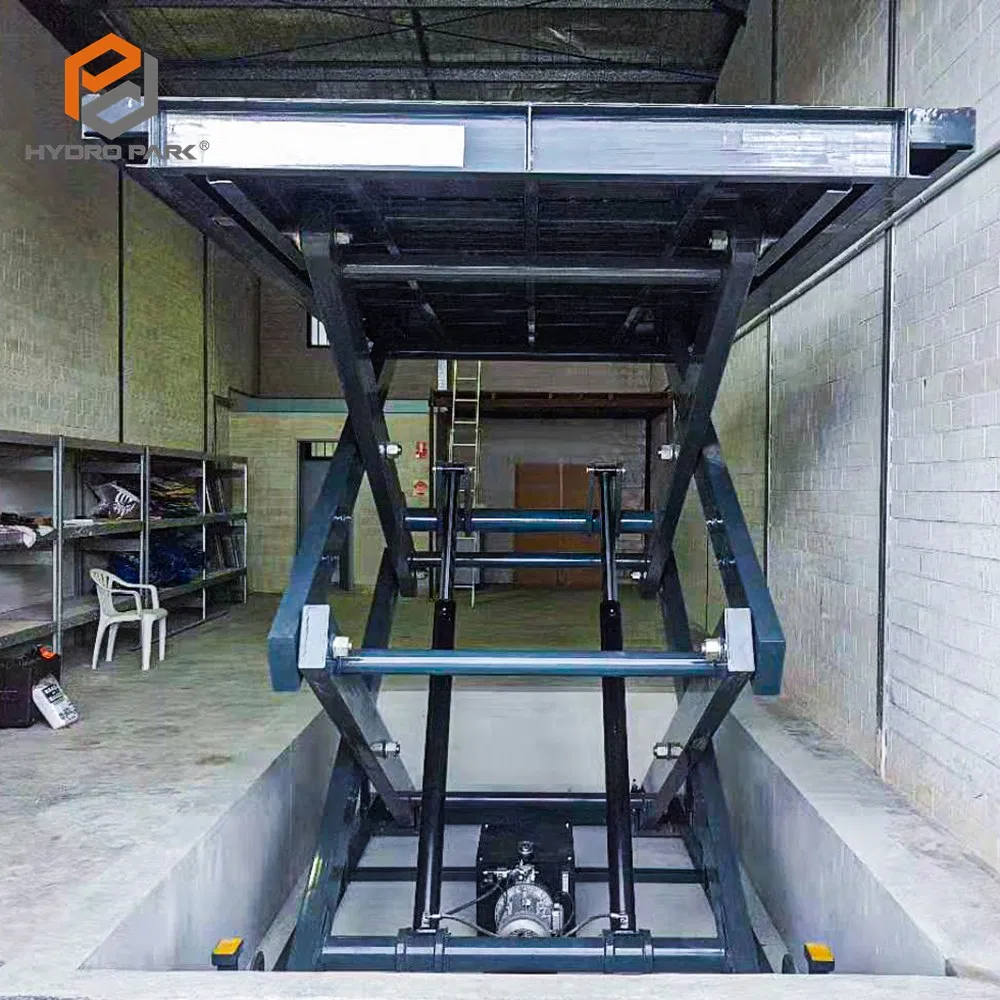

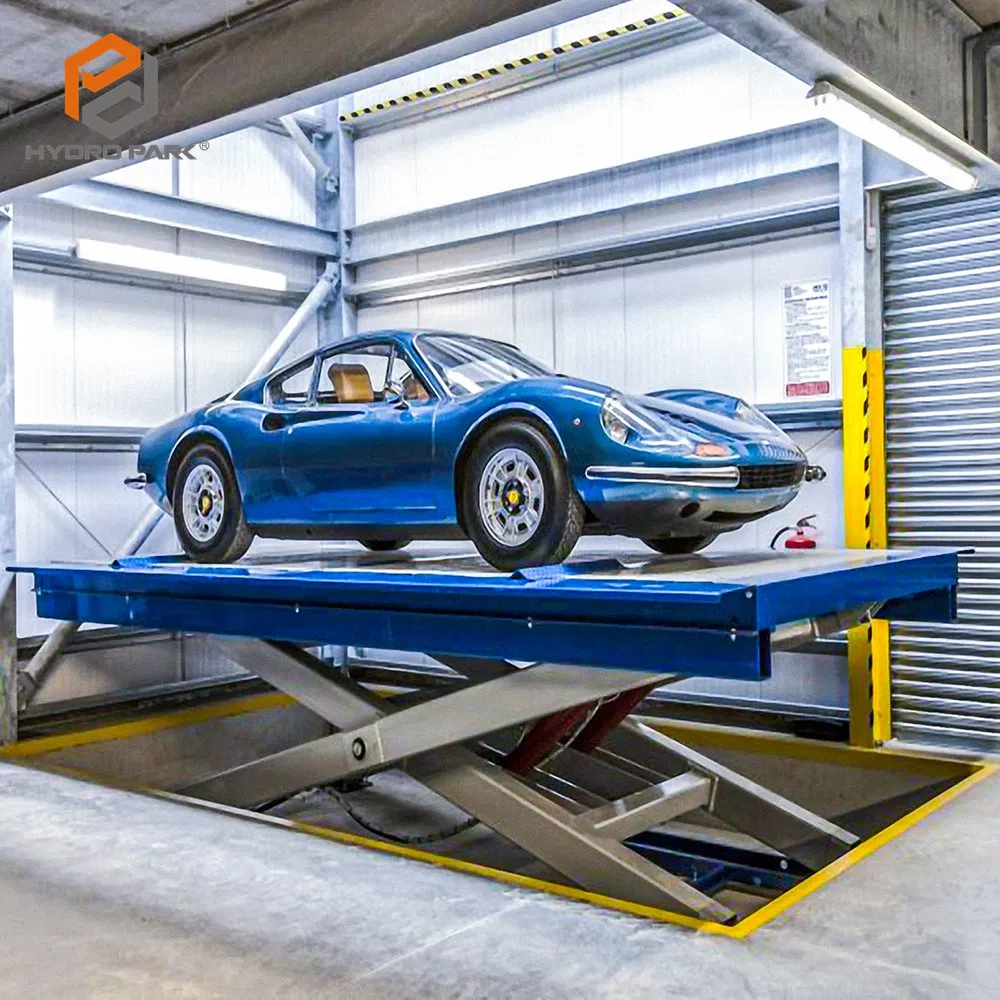

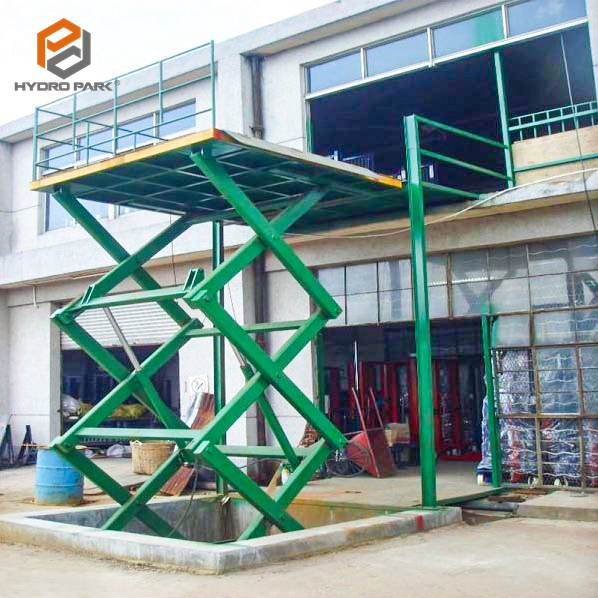

S-VRC is a high-performance scissor-type car elevator designed to transport heavy vehicles or goods efficiently between floors. The system features customizable dimensions and piston travel tailored to specific site conditions and customer requirements.
  • Customizable platform dimensions and lifting heights.
  • Dual-platform capability for seamless integration with surroundings.
  • Space-saving alternative to traditional concrete ramps.
  • Robust hydraulic driving system for heavy-duty performance.

Frequently Asked Questions

1. What is the maximum lifting capacity of the S-VRC?
The system is designed for heavy-duty use, supporting a rated capacity of up to 10,000 kg (10 tons).
2. How high can the platform lift vehicles?

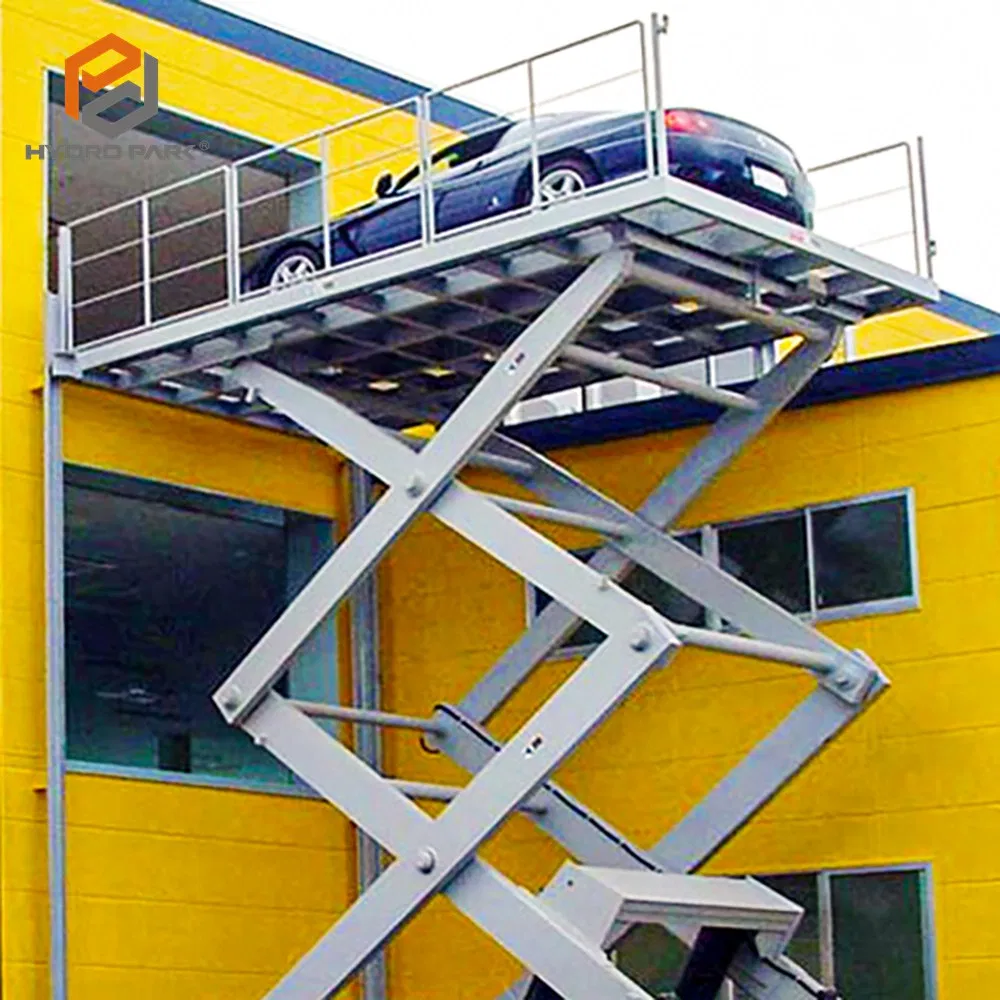

The S-VRC can reach a lifting height of up to 13.0 meters, making it suitable for multi-floor transport.
3. Can the platform size be customized for my site?

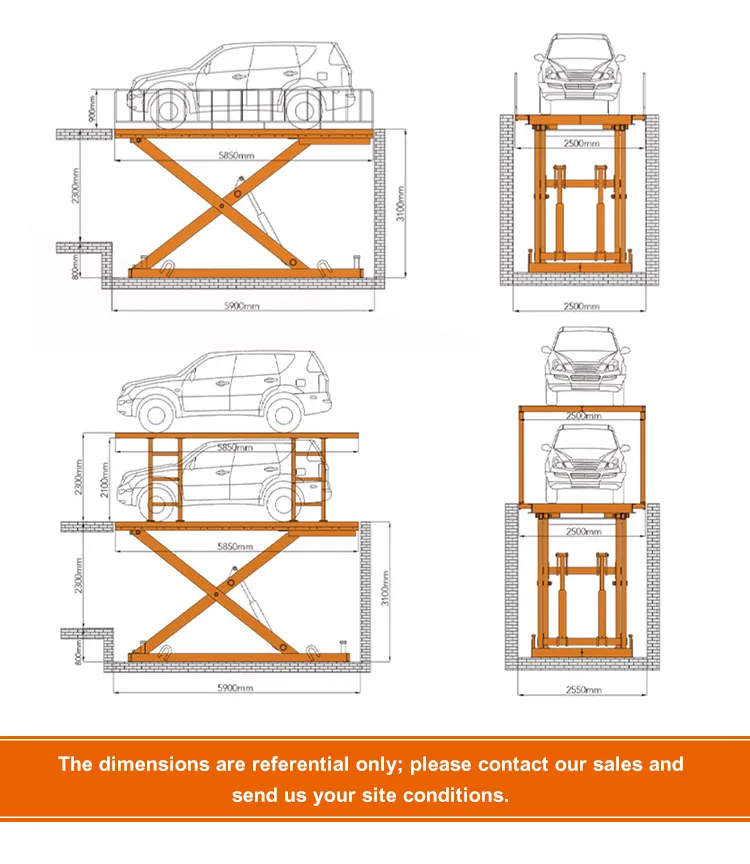

Yes, the platform length (up to 6.0m) and overall dimensions are fully customizable based on site conditions and specific requirements.
4. What type of finish is applied to the structure?
The lift is finished with a high-quality powder coating, providing excellent durability and resistance to wear.
5. Does the S-VRC include safety devices?
Yes, it features a falling prevention device and is CE and ISO certified to ensure operational safety.

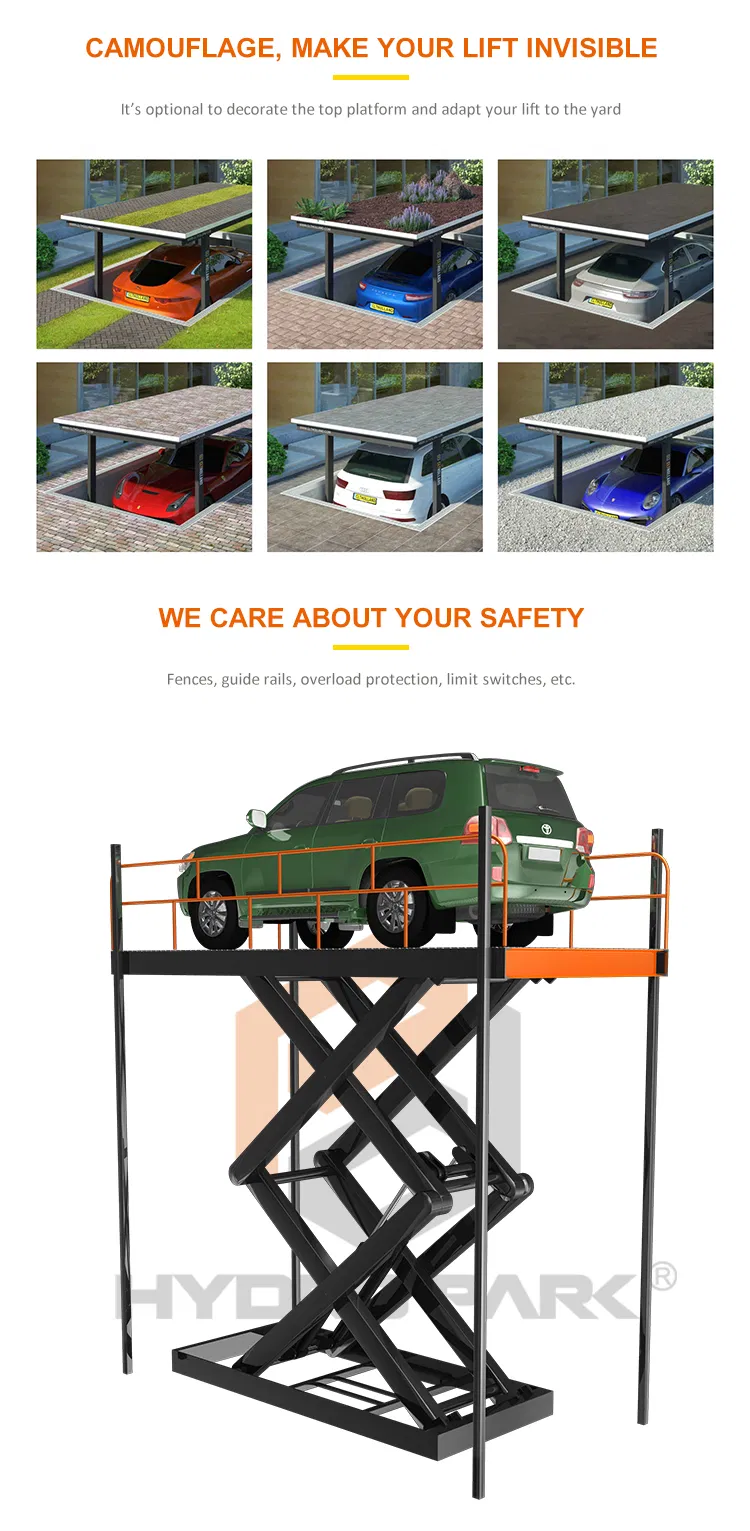

6. Is it possible to add a second platform on top?
Yes, adding another platform on top is possible, allowing the system to blend into the surrounding environment or provide double-deck parking.
