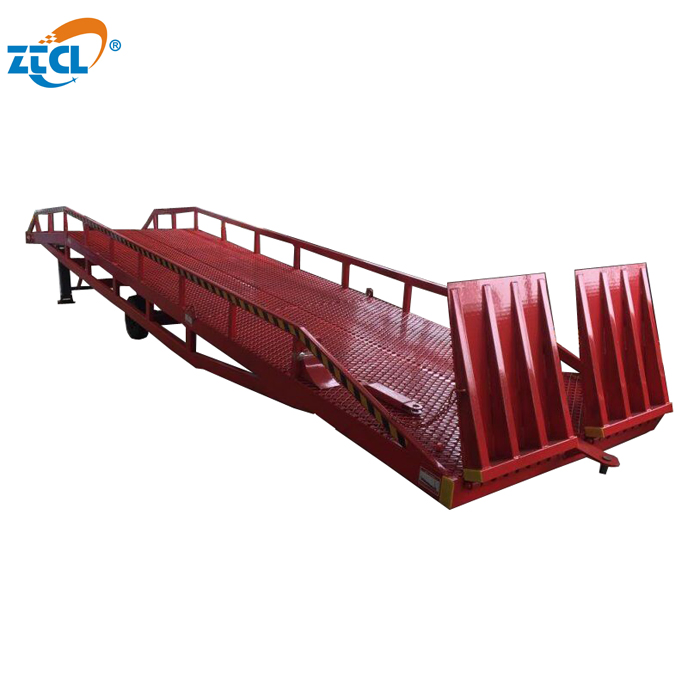

Ztcl Container Loading Dock Ramp Dock Leveler 6t-12t Mobile Movable Dock Ramps for Sale
Ztcl Container Loading Dock Ramp Dock Leveler 6t-12t Mobile Movable Dock Ramps for Sale
Ztcl Container Loading Dock Ramp Dock Leveler 6t-12t Mobile Movable Dock Ramps for Sale
Ztcl Container Loading Dock Ramp Dock Leveler 6t-12t Mobile Movable Dock Ramps for Sale
Ztcl Container Loading Dock Ramp Dock Leveler 6t-12t Mobile Movable Dock Ramps for Sale
1 / 5
Ztcl Container Loading Dock Ramp Dock Leveler 6t-12t Mobile Movable Dock Ramps for Sale
Ztcl Container Loading Dock Ramp Dock Leveler 6t-12t Mobile Movable Dock Ramps for Sale
Ztcl Container Loading Dock Ramp Dock Leveler 6t-12t Mobile Movable Dock Ramps for Sale
Ztcl Container Loading Dock Ramp Dock Leveler 6t-12t Mobile Movable Dock Ramps for Sale
Ztcl Container Loading Dock Ramp Dock Leveler 6t-12t Mobile Movable Dock Ramps for Sale

Ztcl Container Loading Dock Ramp Dock Leveler 6t-12t Mobile Movable Dock Ramps for Sale

Customization: Available
After-sales Service: Free Parts
Warranty: 12month
Send Inquiry

Product Description

Basic Specifications
Model NO.
ZTDCQY
Application
Workshop, Shipboard, Warehouse, Building
Lift Mechanism
Lift Chain
Driven Type
Hydraulic
Certification
GS, CE, ISO 9001
Capacity
6-15 Ton (Customizable)
Material
High Strength Steel
Specification
11000*2100*1100mm
Product Overview
Mobile loading ramp is cargo handling and forklift auxiliary equipment. It features adjustable height according to the level of the truck, allowing forklifts to drive directly into the interior of the vehicle for bulk cargo handling. Operated by a single person, it achieves rapid loading and unloading, significantly reducing labor costs and improving economic efficiency.

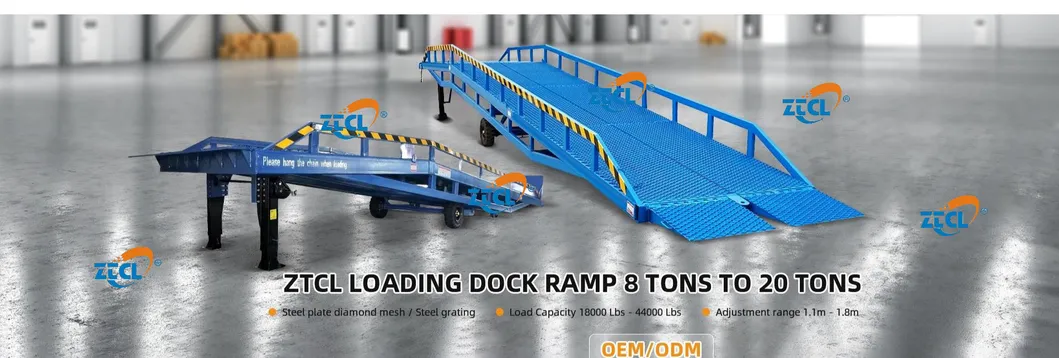

Mobile Loading Dock Ramp
Technical Parameters
Model ZTDCQY-6 ZTDCQY-8 ZTDCQY-10 ZTDCQY-12 ZTDCQY-15
Load Capacity 6t 8t 10t 12t 15t
Overall Size 11300*2100*1100mm
Adjustable Range 1100-1800mm
Steel Plate Thickness 3mm 3mm 4mm 5mm 5mm
Steel Mesh Thickness 8mm
Power System Manual hydraulic pump Manual + 2 aux legs Manual + 4 aux legs
Self-Weight ±2200kg ±2400kg ±2600kg ±3300kg ±4000kg

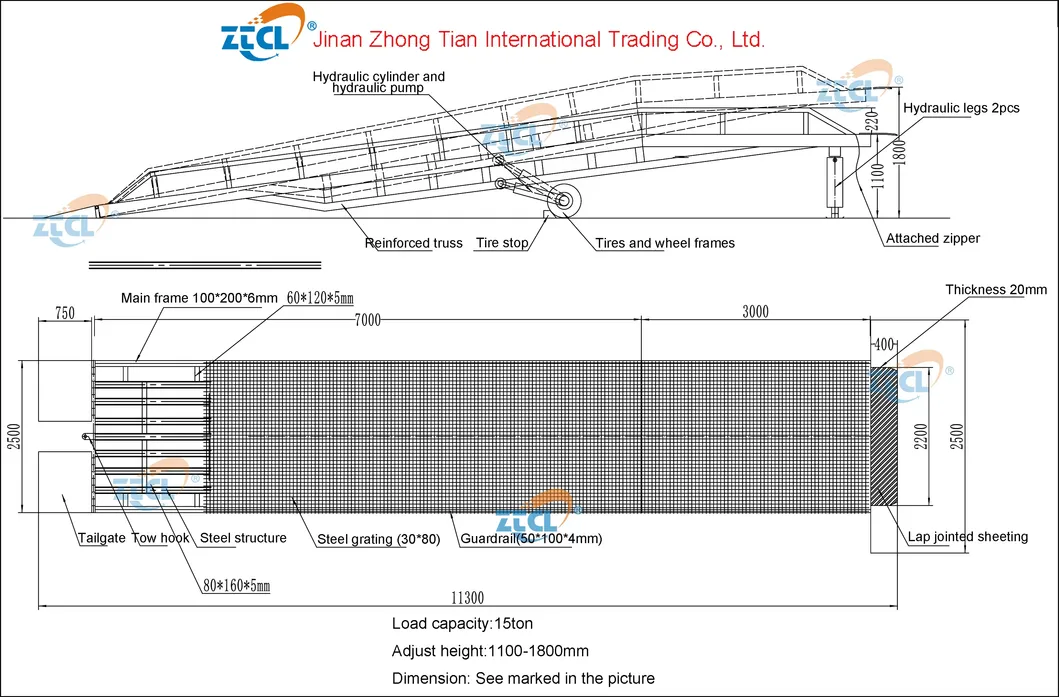

Detailed Dimensions
Detailed Components

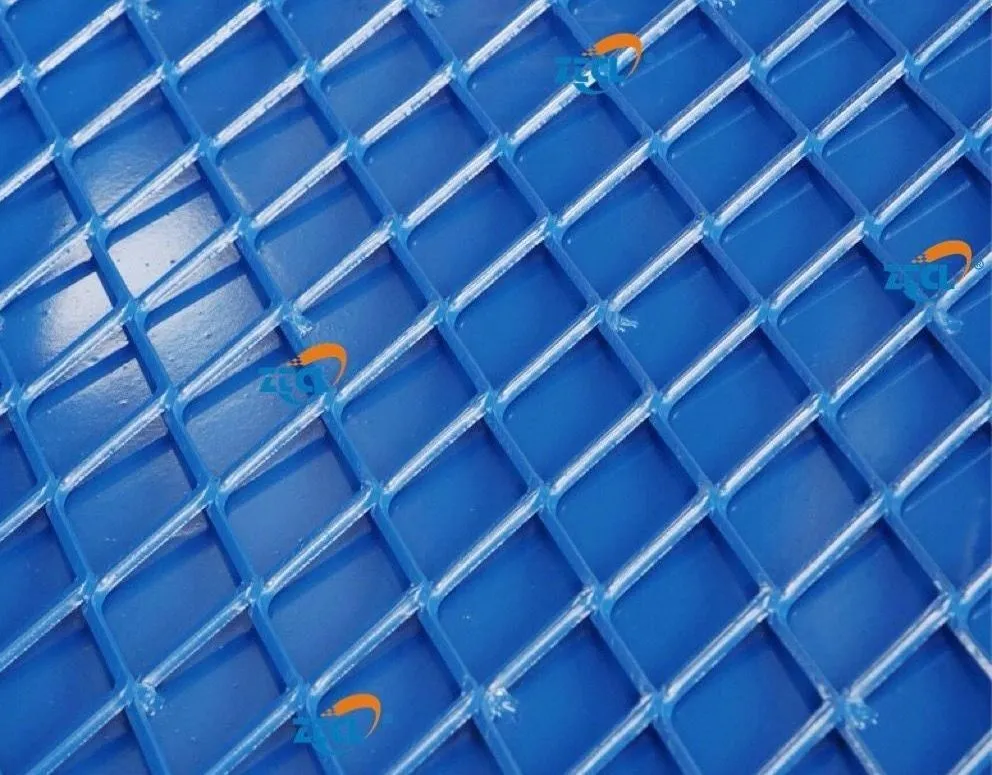

Anti slip diamond mesh
Anti-slip Diamond Mesh

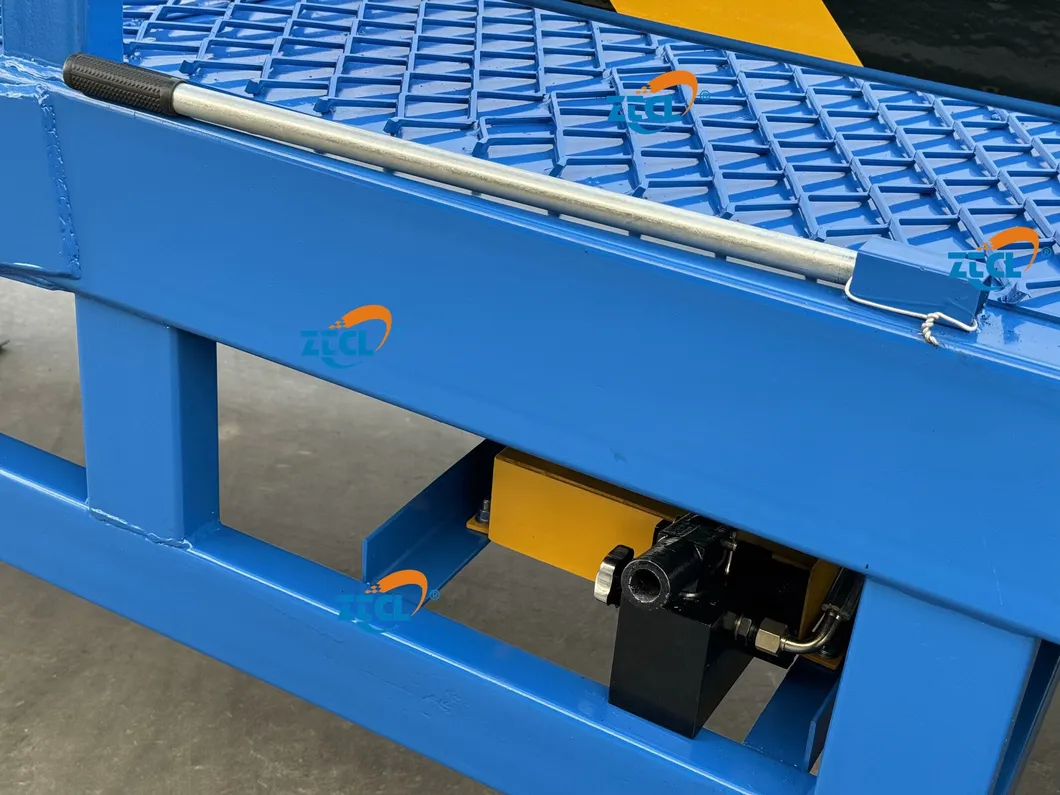

Hand hydraulic pump
Manual Hydraulic Pump

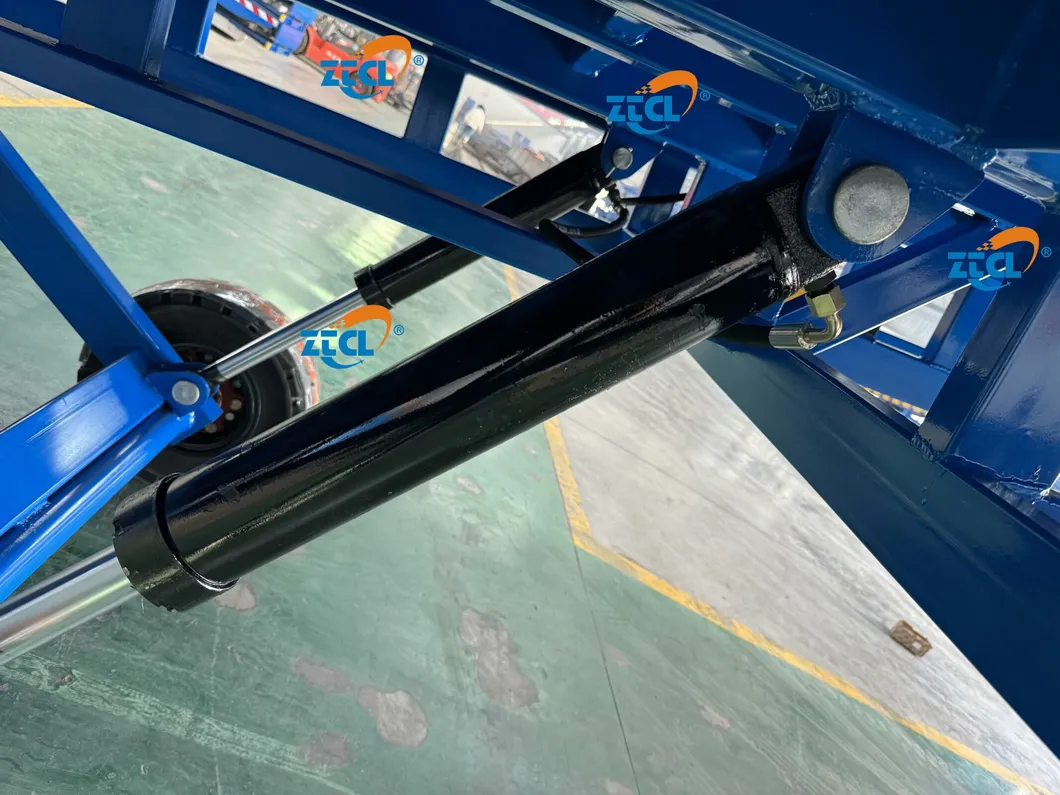

Oil cylinder
High-Pressure Oil Cylinder

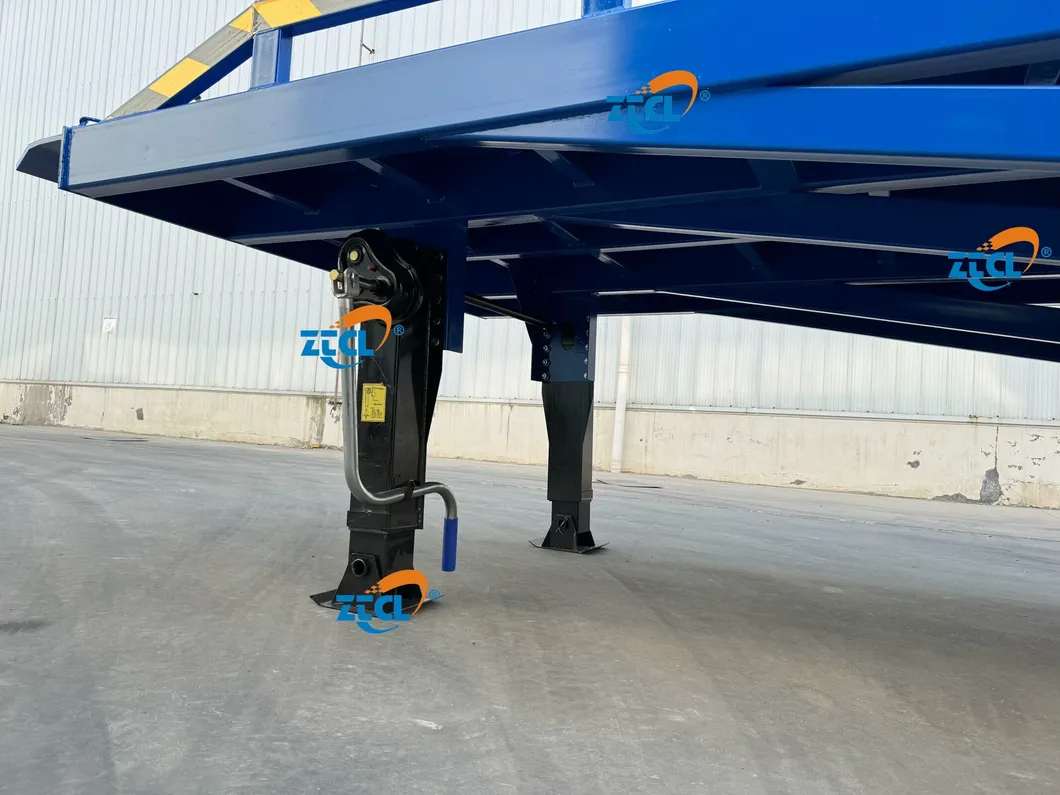

Support legs
Heavy Duty Support Legs

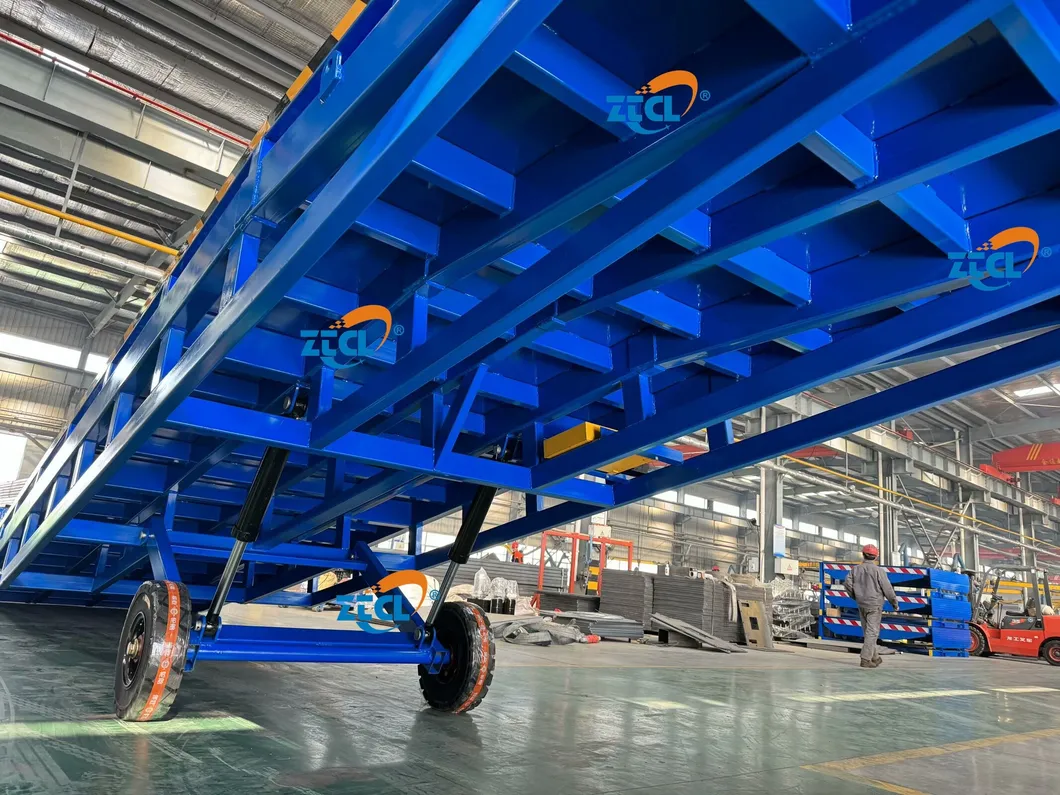

Strong bottom frame
Reinforced Bottom Frame

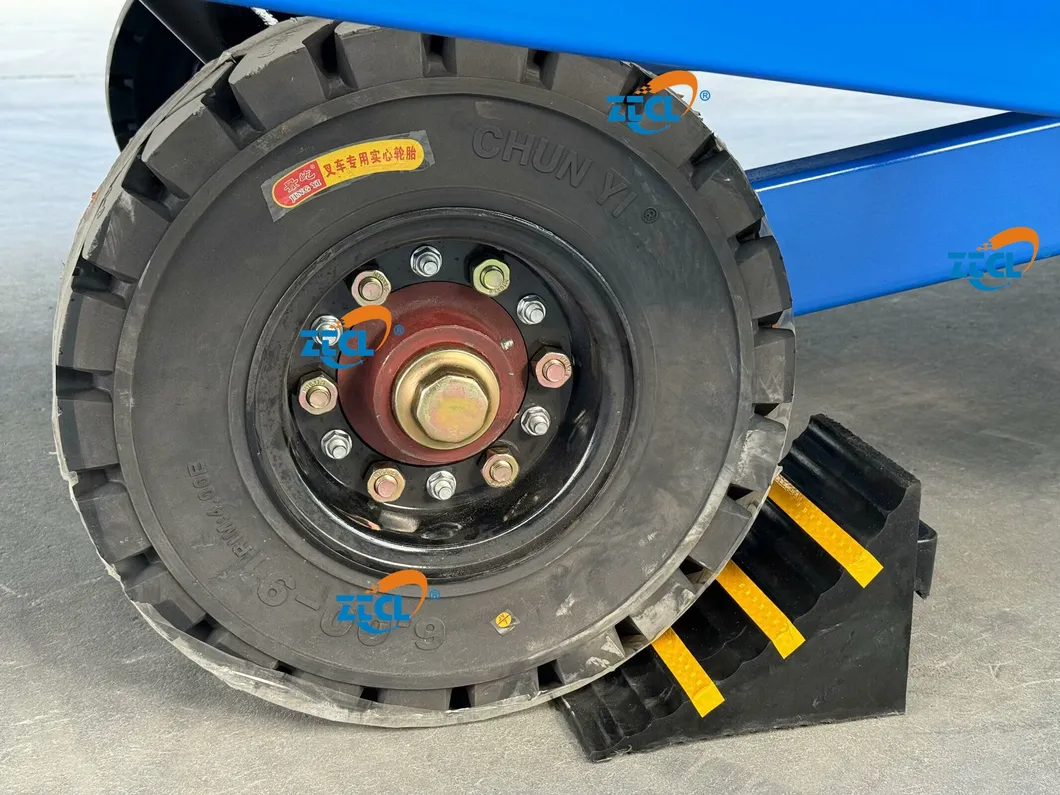

Antislip baffle
Safety Baffle and Solid Tire
Our Advantages
  • Heavy-duty Mobile Solid Tyres Mobile wheels adopt solid tyres, no inflation needed, durable, and equipped with brake pads to guarantee operation safety.
  • Adjustable Supporting Legs Prevents gravity concentration on the vehicle tail during forklift entry, ensuring vehicle stability and operation safety.
  • Manual Hydraulic System Equipped with a manual hydraulic device to adjust working height directly without the need for electricity.
  • Safety Anti-skid Steel Nets Special rhombic grid plates ensure excellent slip resistance even in rain or snow, allowing forklifts to climb safely.
  • High-Strength Bridge Structure Body constructed from high-strength manganese steel, offering massive carrying capacity and durability.

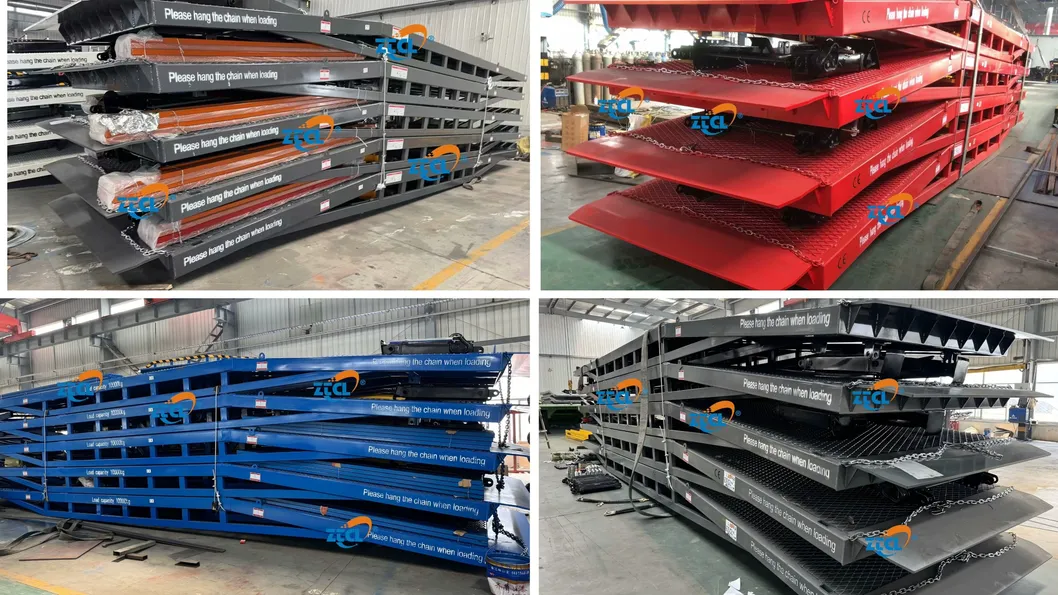

Product Show
Packaging & Certifications

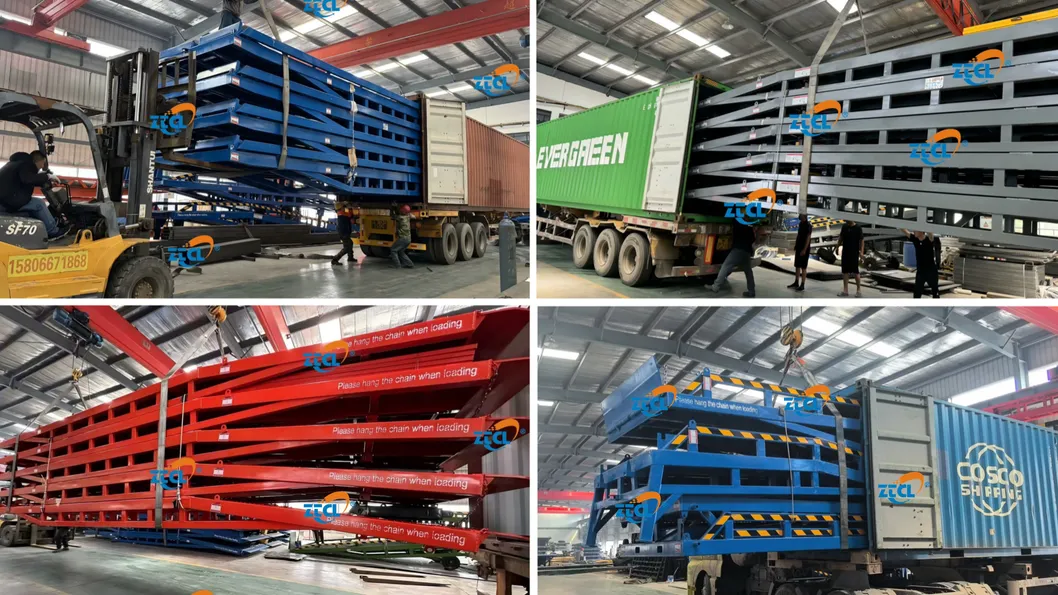

Packaging
Certifications
Frequently Asked Questions
What is the typical delivery time?
It usually takes approximately 10 working days after receipt of the deposit.
What payment methods are supported?
We support T/T, L/C, and Western Union. T/T is the most common method.
How should I proceed with an order?
First, share your specific requirements. Providing a photo of the intended usage area helps us offer the best suggestion and quote.
How is the machine transported?
Shipping is typically handled by sea, using plywood packaging or LCL in 20' containers.
Is logo customization available?
Yes, we can print your logo on the lift. Please provide a high-resolution file before production begins.
What kind of after-sales support is provided?
We aim to solve technical issues within 24 hours and can arrange the delivery of spare parts within 48 hours.
