Cargo Platform Imported Seals Fixed Boarding Bridge Stationary Edge of Dock Leveler
Cargo Platform Imported Seals Fixed Boarding Bridge Stationary Edge of Dock Leveler
Cargo Platform Imported Seals Fixed Boarding Bridge Stationary Edge of Dock Leveler
Cargo Platform Imported Seals Fixed Boarding Bridge Stationary Edge of Dock Leveler
Cargo Platform Imported Seals Fixed Boarding Bridge Stationary Edge of Dock Leveler
1 / 5
Cargo Platform Imported Seals Fixed Boarding Bridge Stationary Edge of Dock Leveler
Cargo Platform Imported Seals Fixed Boarding Bridge Stationary Edge of Dock Leveler
Cargo Platform Imported Seals Fixed Boarding Bridge Stationary Edge of Dock Leveler
Cargo Platform Imported Seals Fixed Boarding Bridge Stationary Edge of Dock Leveler
Cargo Platform Imported Seals Fixed Boarding Bridge Stationary Edge of Dock Leveler

Cargo Platform Imported Seals Fixed Boarding Bridge Stationary Edge of Dock Leveler

Customization: Available
After-sales Service: Available
Warranty: 1 Year
Send Inquiry

Product Description

1

Basic Specifications

Model NO.:DL54
Application:Warehouse Crane, Charge and Discharge
Lift Mechanism:Articulated Lift
Driven Type:Hydraulic
Certification:CE, RoHS, ISO 9001, AAA
Power Supply:380V/0.75kw
Hydraulic Unit:Swiss Bucher Hydraulic System
Loading Capacity:10000kg
Lip Plate:Standard 400mm, 500mm Optional
Working Range:-300 to +350mm
2

Electric Hydraulic Dock Leveller

Dock Leveler Overview

Our stationary dock levelers are designed for high-efficiency logistics unloading ports. Utilizing high-strength anti-skid pattern steel plates and top-tier hydraulic systems, they ensure smooth cargo handling between the warehouse and trucks.

3

Product Show

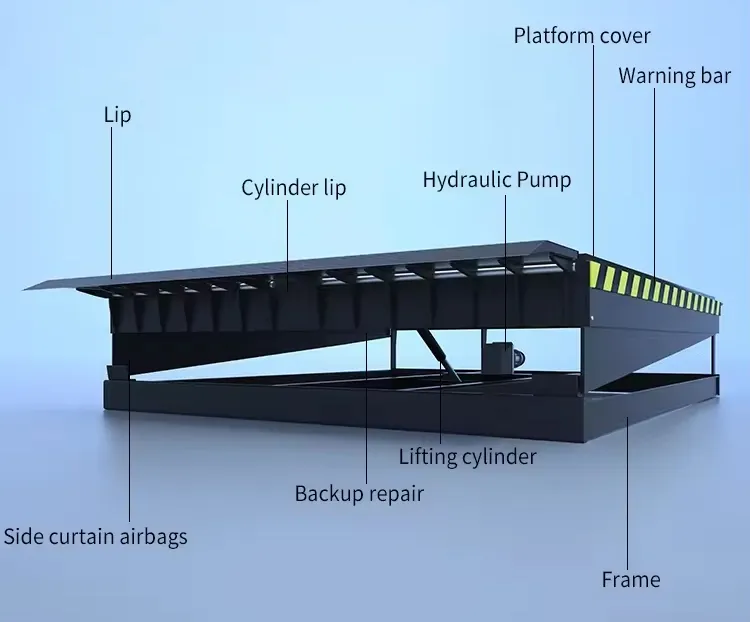

Product Show 1

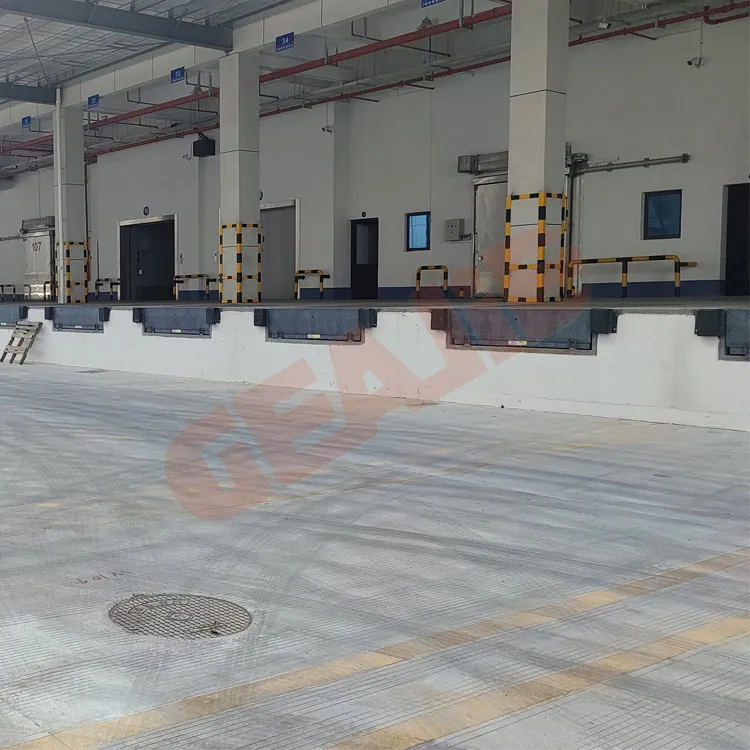

Product Show 2

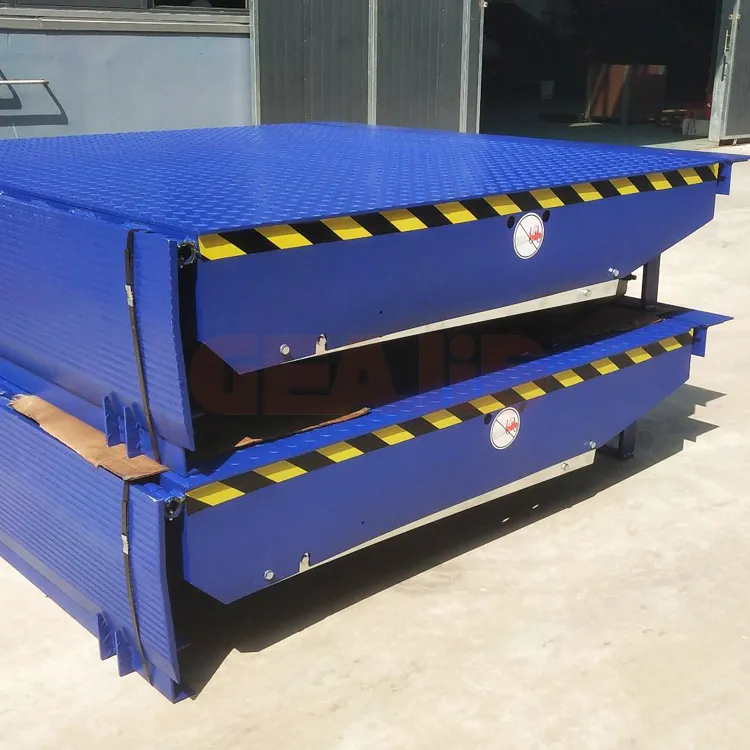

Product Show 3

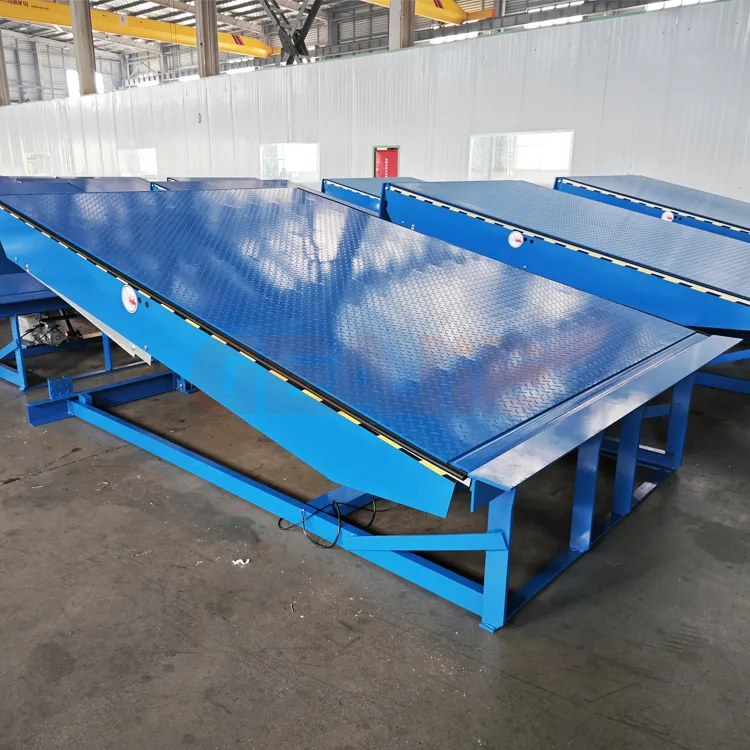

Product detail 4

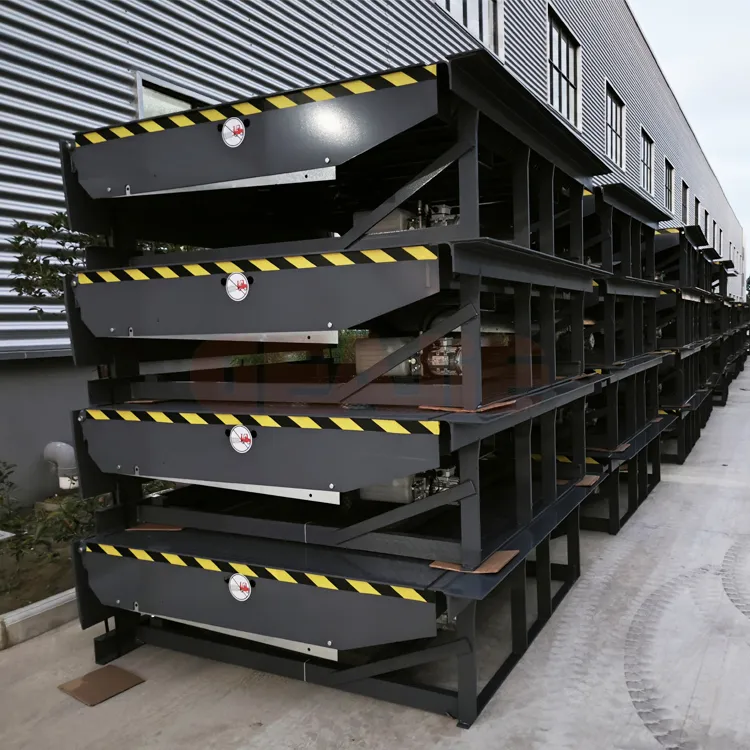

Product detail 5
Product detail 6
4

Material & Technical Data

Parameter Description
Load Capacity6 - 25 tons
Width Options1830mm, 2000mm, 2130mm
Length Options2000mm, 2500mm, 3000mm, 3500mm
Countertop Material8mm high-strength anti-skid pattern steel plate
Lip Thickness14mm / 16mm / 20mm (based on load)
Security ConfigurationAnti-fall function, anti-pinch protection, maintenance support rod
5

Structural Components

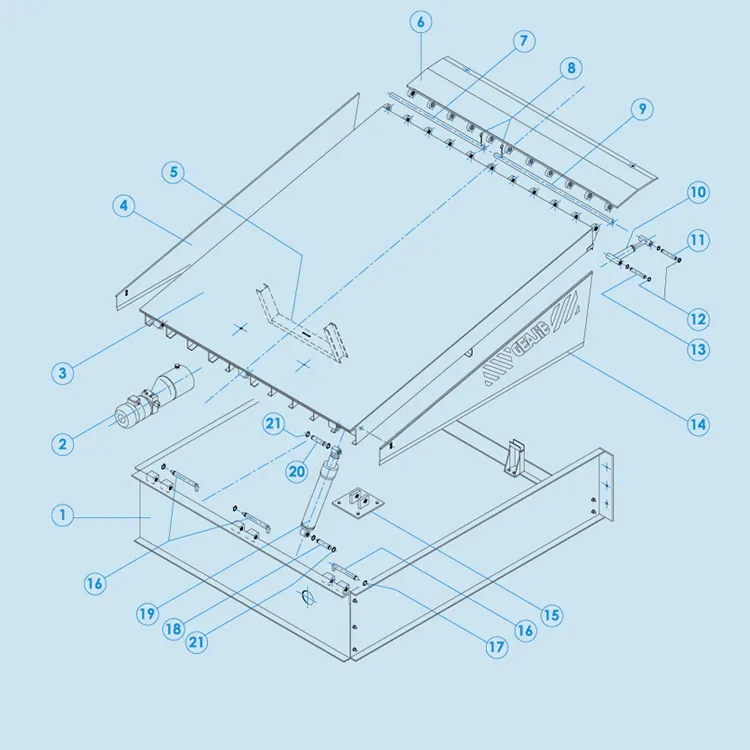

Structural Drawing
1. Mould12. Seeger straight pins of the lip
2. Hydraulic control unit13. Straight Pin body
3. Upper plate14. Right foot guard
6. Swinging lip19. Upper plate cylinder
6

Key Advantages

  • Diverse Types: Available in hydraulic, pneumatic, and mechanical versions to fit specific dock needs.
  • Durability: Made of high-grade steel with corrosion-resistant treatment.
  • Safety Focused: Features anti-slip surfaces, safety barriers, and sensors for personnel protection.
  • Adjustability: Heights can be tailored to accommodate various truck and dock dimensions.

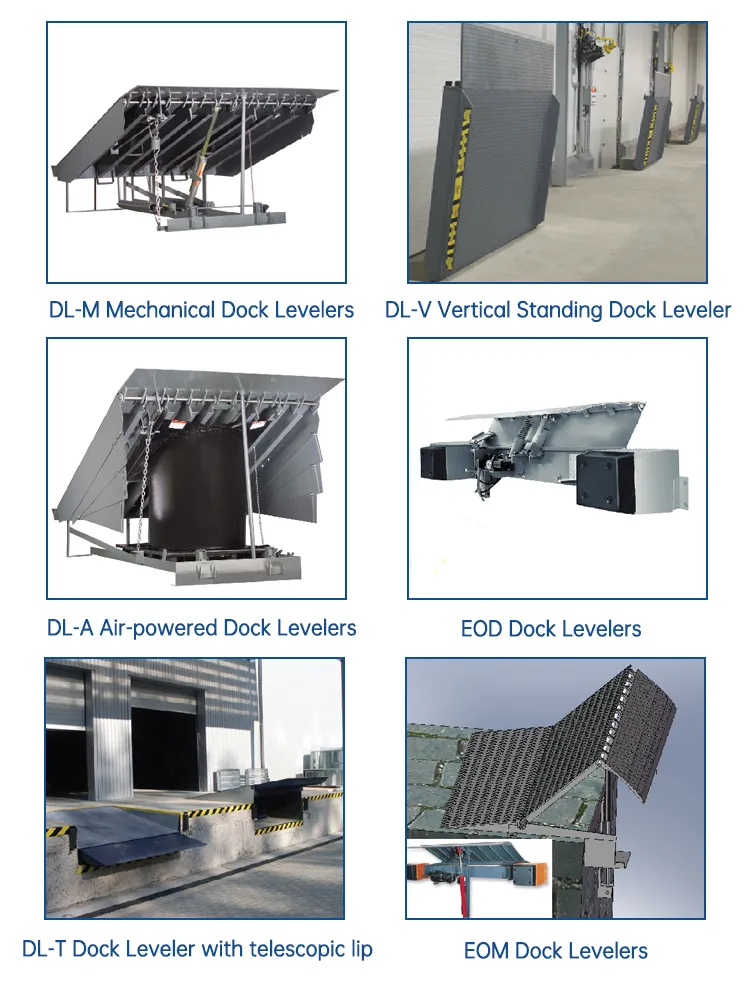

Similar Products 1
Similar Products 2
?

Frequently Asked Questions

What is the maximum load capacity available?
The dock levelers support a wide range of loads, typically from 6 tons up to 25 tons, depending on the specific model and reinforcement.
What kind of hydraulic system is used?
We use the Swiss Bucher Hydraulic System, known for its reliability and precision in heavy-duty industrial applications.
Can the size and color be customized?
Yes, we offer customizable overall dimensions and a variety of colors including black, gray, blue, and green to match your facility requirements.
What safety features are included?
Standard safety features include platform anti-fall functions, anti-pinch side guards, maintenance support rods, and night self-locking protection.
What is the standard power supply for these units?
The standard power requirement is 380V/0.75Kw, but 220V 1-phase options may be available for specific configurations.
Is it easy to install the dock leveler?
Yes, the equipment is designed for straightforward installation into a prepared base pit at factory outlets or logistics ports.
