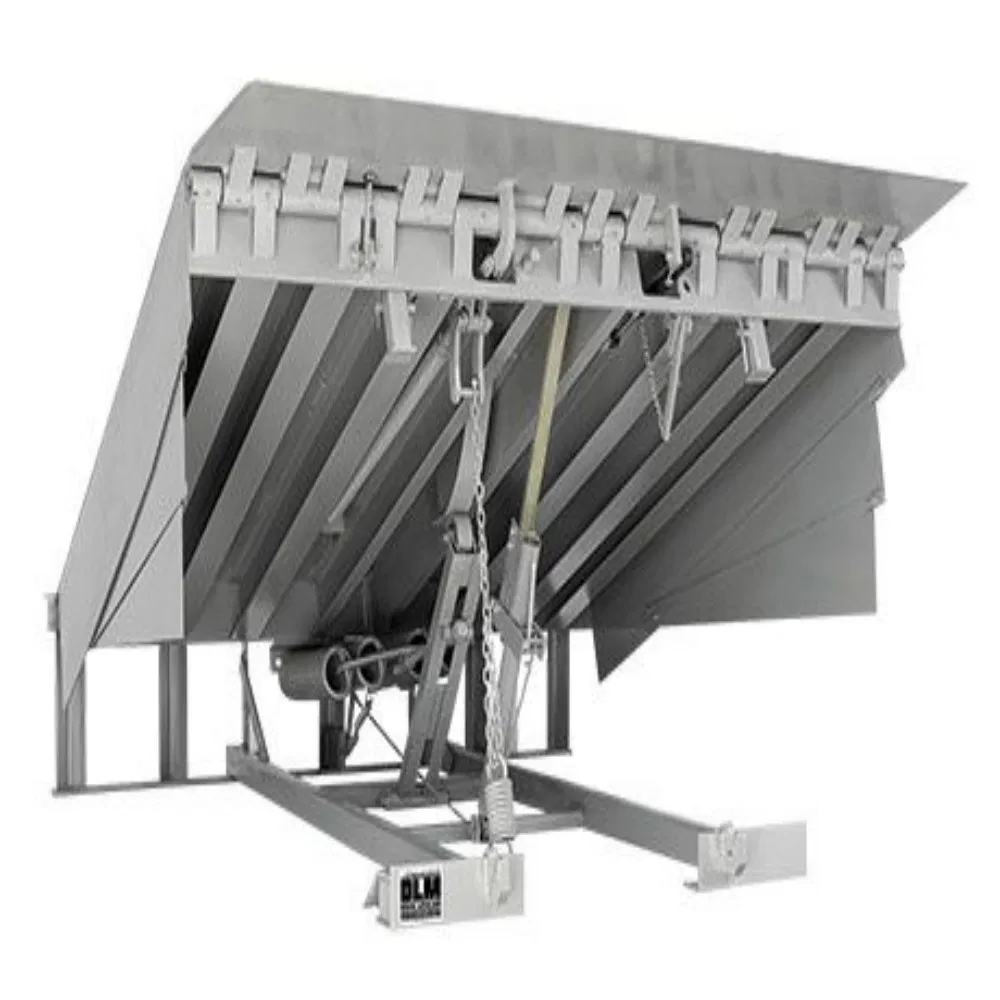

Explosion-Proof Truck Container Lifting Table Fixed Dock Leveler Loading and Unloading Ramp Hydraulic Boarding Bridge
Explosion-Proof Truck Container Lifting Table Fixed Dock Leveler Loading and Unloading Ramp Hydraulic Boarding Bridge
Explosion-Proof Truck Container Lifting Table Fixed Dock Leveler Loading and Unloading Ramp Hydraulic Boarding Bridge
Explosion-Proof Truck Container Lifting Table Fixed Dock Leveler Loading and Unloading Ramp Hydraulic Boarding Bridge
Explosion-Proof Truck Container Lifting Table Fixed Dock Leveler Loading and Unloading Ramp Hydraulic Boarding Bridge
1 / 5
Explosion-Proof Truck Container Lifting Table Fixed Dock Leveler Loading and Unloading Ramp Hydraulic Boarding Bridge
Explosion-Proof Truck Container Lifting Table Fixed Dock Leveler Loading and Unloading Ramp Hydraulic Boarding Bridge
Explosion-Proof Truck Container Lifting Table Fixed Dock Leveler Loading and Unloading Ramp Hydraulic Boarding Bridge
Explosion-Proof Truck Container Lifting Table Fixed Dock Leveler Loading and Unloading Ramp Hydraulic Boarding Bridge
Explosion-Proof Truck Container Lifting Table Fixed Dock Leveler Loading and Unloading Ramp Hydraulic Boarding Bridge

Explosion-Proof Truck Container Lifting Table Fixed Dock Leveler Loading and Unloading Ramp Hydraulic Boarding Bridge

Customization: Available
After-sales Service: Yes
Warranty: 12 Months
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
XF-O-2500
Lift Mechanism
Hydraulic Cylinder
Carrying Capacity
6t / 8t / 10t
Driven Type
Hydraulic
Feature
Explosion-Proof
Certification
CE, ISO 9001
Voltage
220V 50Hz / 380V 50Hz
Power
0.75 Kw / 1.5kw
📦

Packaging & Delivery

Package Size
200.00cm * 200.00cm * 60.00cm
Gross Weight
1000.000kg
Transport Package
Wrapping Film
🖼️

Product Gallery

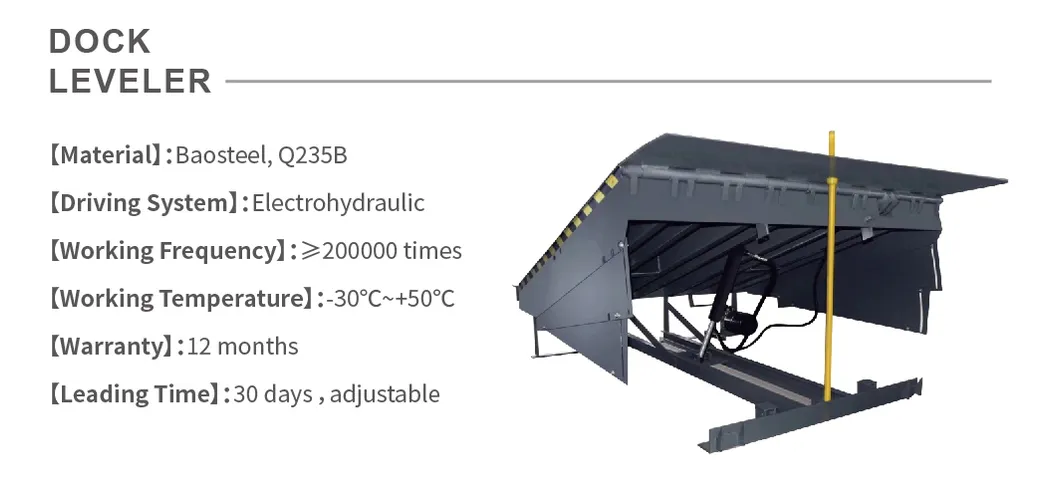

Loading and Unloading Ramp

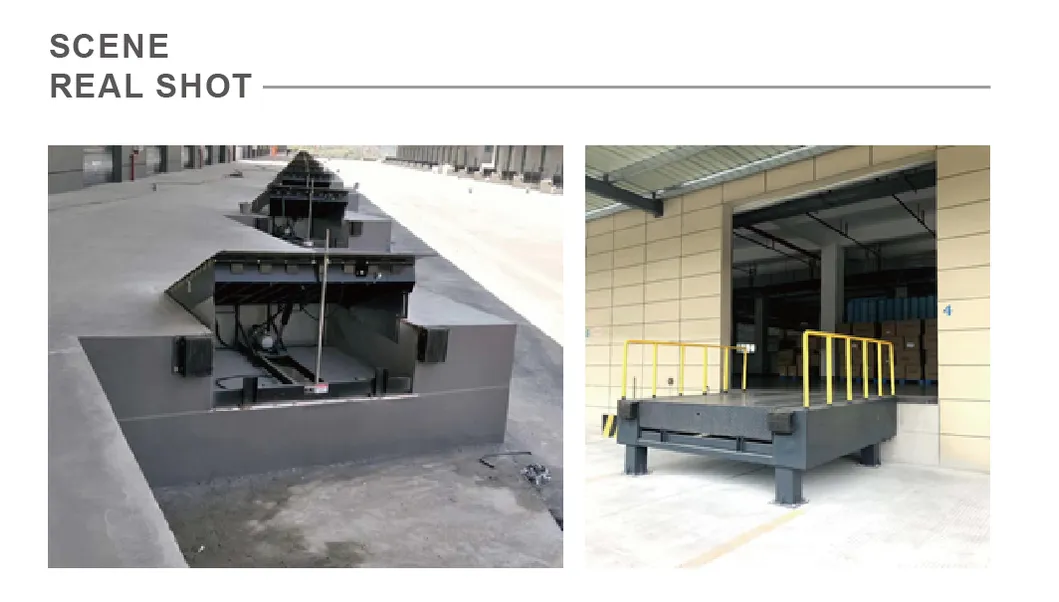

Hydraulic Boarding Bridge

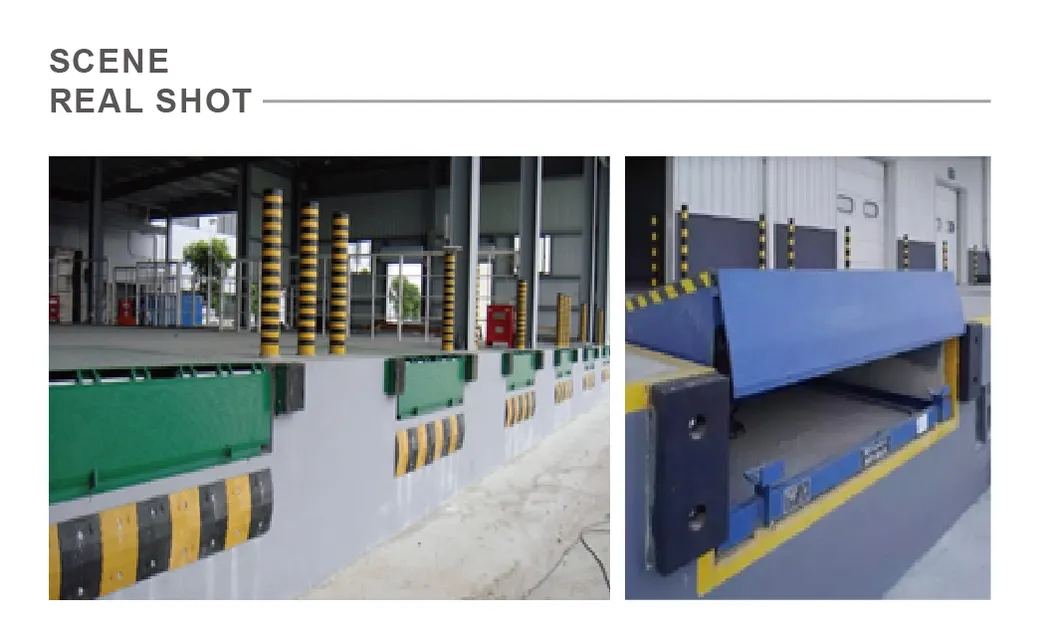

Explosion-Proof Lifting Table

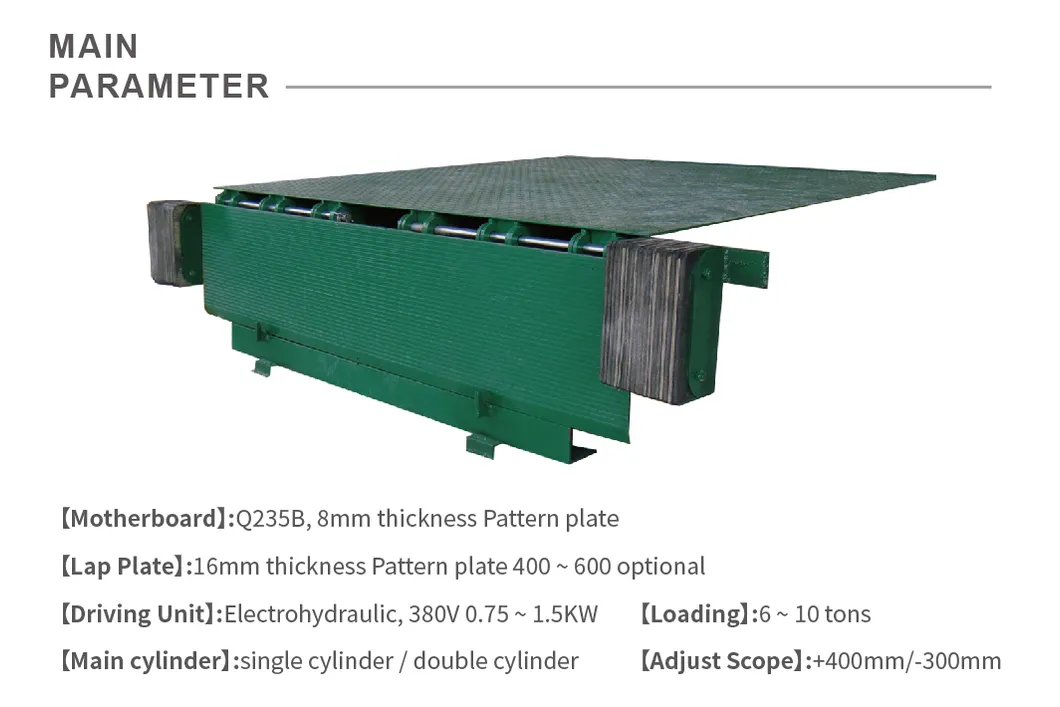

Dock Leveler Construction

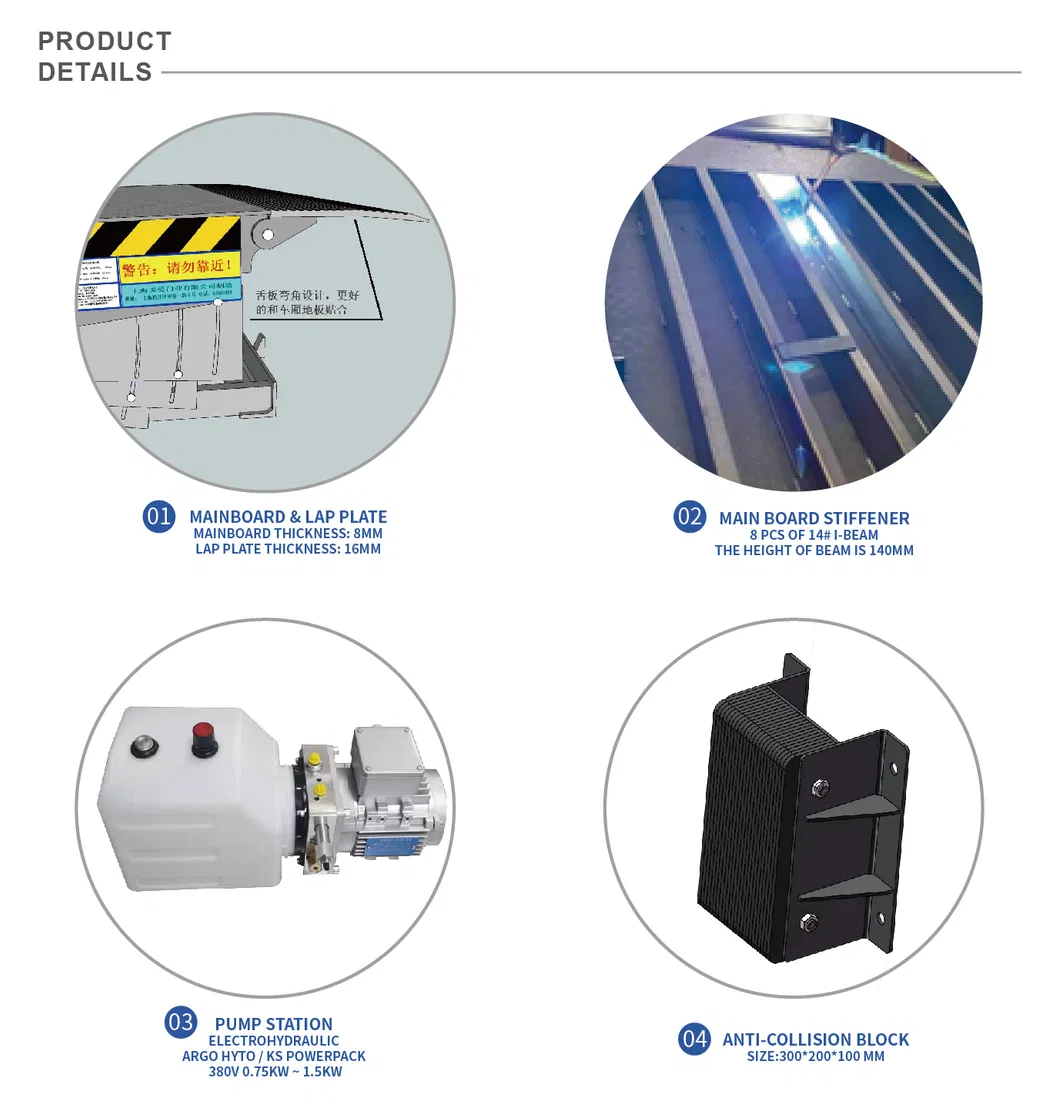

Lifting Table Details
Technical Design
Dock Leveler Overview
⚙️

Technical Parameters

DETAILED CONFIGURATION
Main Board Q235B steel plate with anti-slide pattern, thickness: 6 / 8 mm; blasting surface treatment and powder coating
Lap Plate Q235B steel plate with anti-slide pattern, thickness: 14 / 16mm; blasting and powder coating
Loading Weight Dynamic load: 6T / 8T / 10T / 12 T / 15T
Driving System Electrohydraulic, Local brand / ARGO HYTO powerpack, 380V 0.75KW ~ 1.5KW
Adjust Scope +400mm / -300mm
Sealing Parts Brand: NOK A505 Complete set of seals for oil cylinder
High Pressure Oil Pipe T3683-2001; 60mpa
Safety Part Explosion proof valve
Working Temperature -30ºC ~ +50ºC
Working Frequency ≥ 200,000 times
🛡️

Certifications & Quality

Professional Standards:

  • China AAA Enterprise Quality Standard
  • ISO9001: 2000 Management Certification
  • Full CE Certification for International Safety Compliance
  • Advanced blasting and powder coating for superior durability
❓

Frequently Asked Questions (FAQ)

1. What is the maximum dynamic load capacity?
The system supports dynamic loads of 6T, 8T, 10T, 12T, and up to 15T depending on the specific model configuration.
2. Is this equipment suitable for hazardous environments?
Yes, it features an explosion-proof design, including a specialized safety explosion-proof valve, making it ideal for high-risk industrial sites.
3. What are the operating temperature limits?
This hydraulic boarding bridge is designed to operate efficiently in extreme climates, with a working temperature range of -30ºC to +50ºC.
4. How durable is the main board construction?
The main board is crafted from Q235B steel plate with an anti-slide pattern, featuring a thickness of 6-8mm and 8 pieces of 14# I-Beam stiffeners for maximum durability.
5. Can the voltage be customized for different regions?
The standard configuration supports 220V 50Hz and 380V 50Hz, covering most industrial power requirements internationally.
6. What is the expected service life of the hydraulic system?
The system is designed for high-frequency use, with a working frequency rating of ≥ 200,000 cycles, supported by premium NOK sealing parts.
