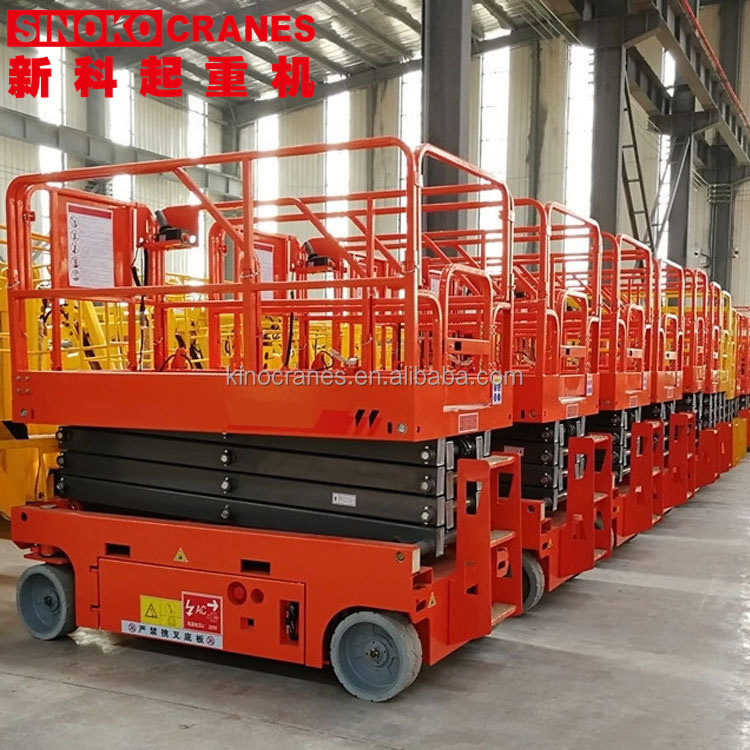

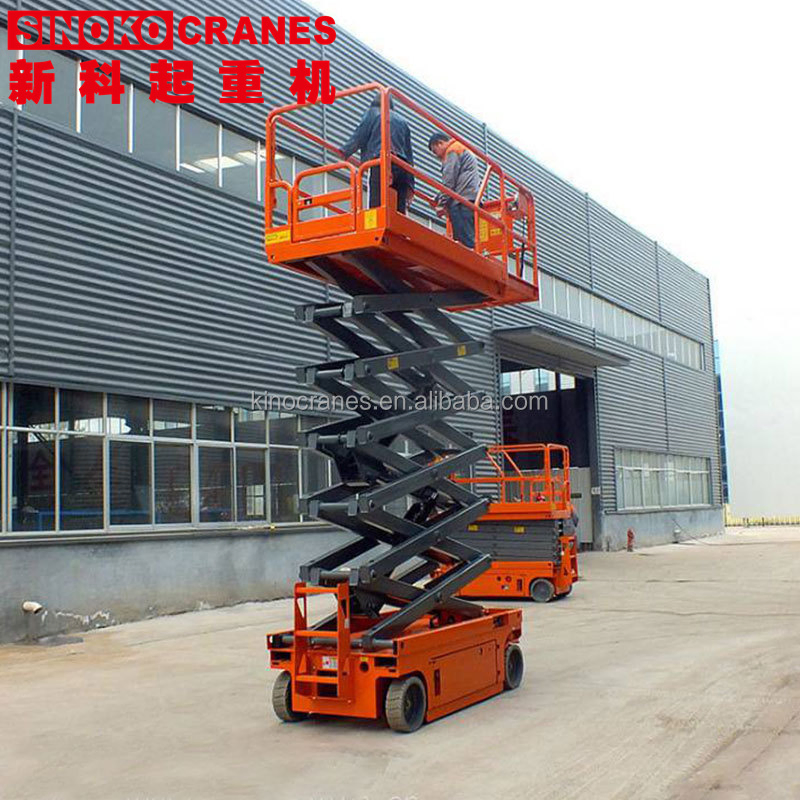

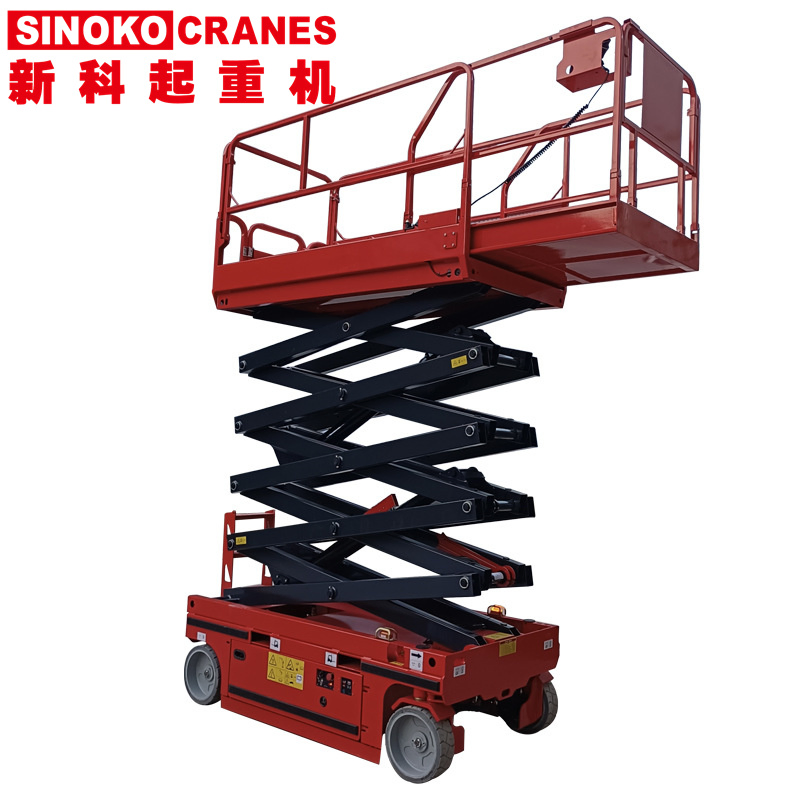

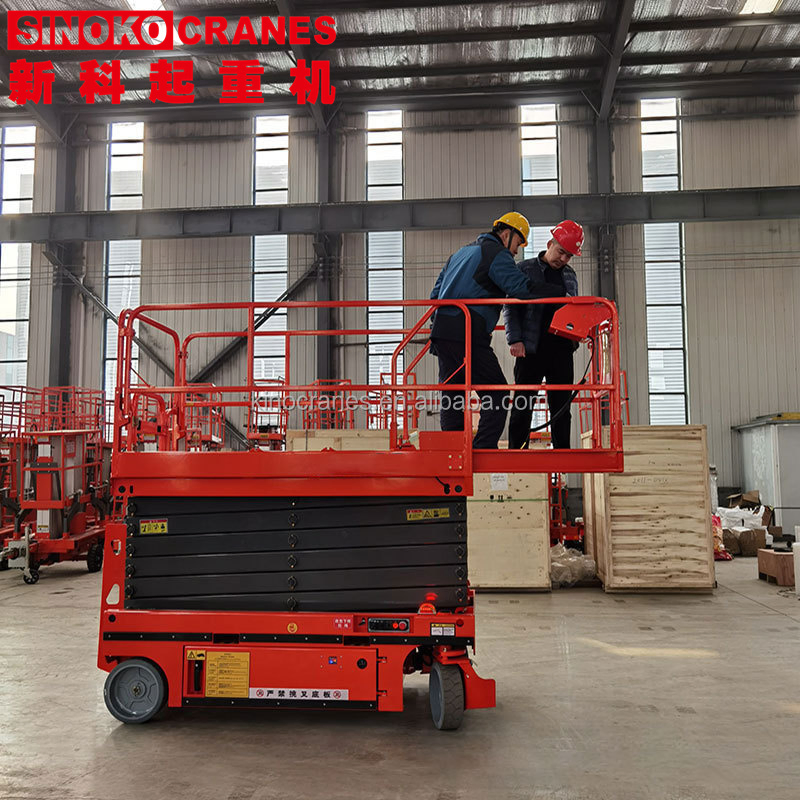

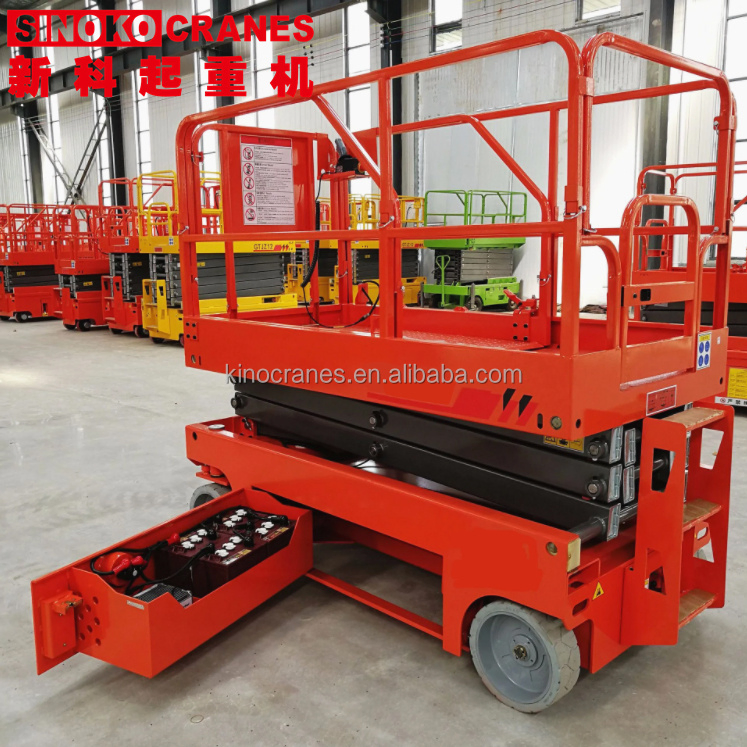

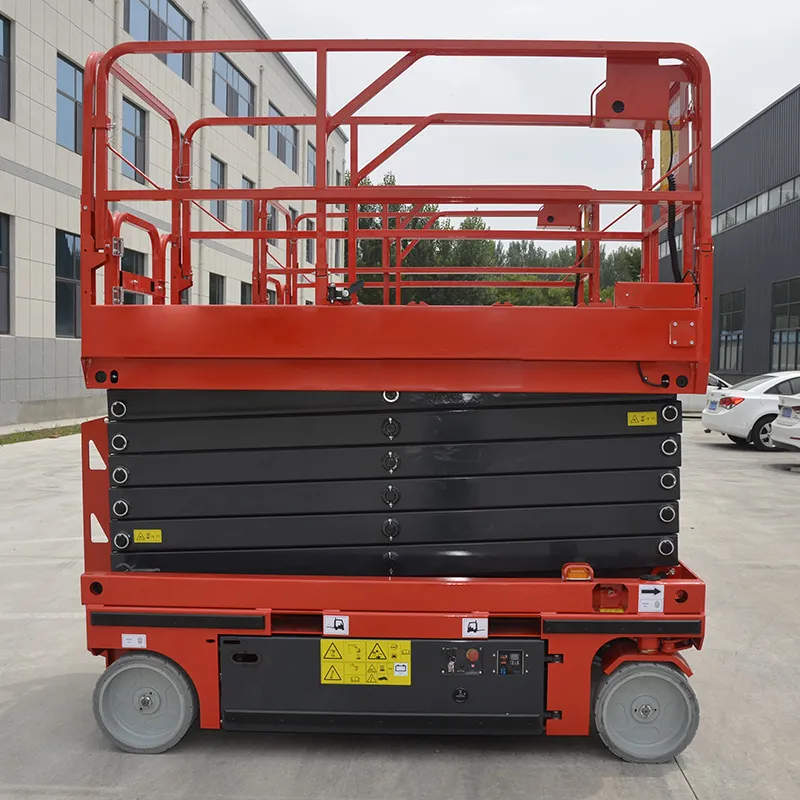

The self propelled lift platform can automatically fast and slow walk and turn in different work conditions, which do not need artificial traction, do not need external power supply, and move flexibly and conveniently. It makes aerial work more convenient and efficient. Both electric and hydraulic drive options are available.

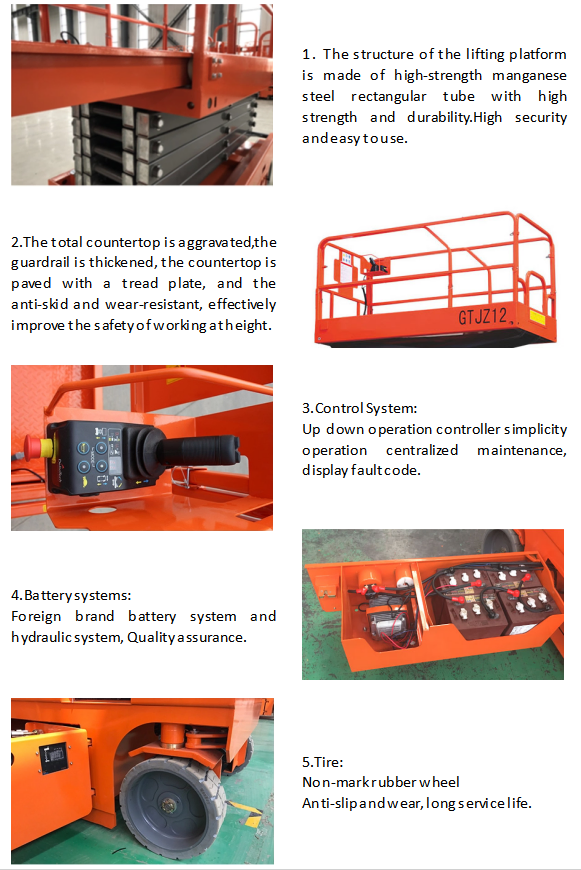

Main Features:
• Robust, Reliable, and easy to maintain.
• Extendable Platform for increased reach.

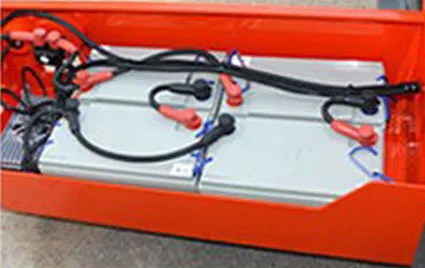

• 24V DC power source with long working cycles.

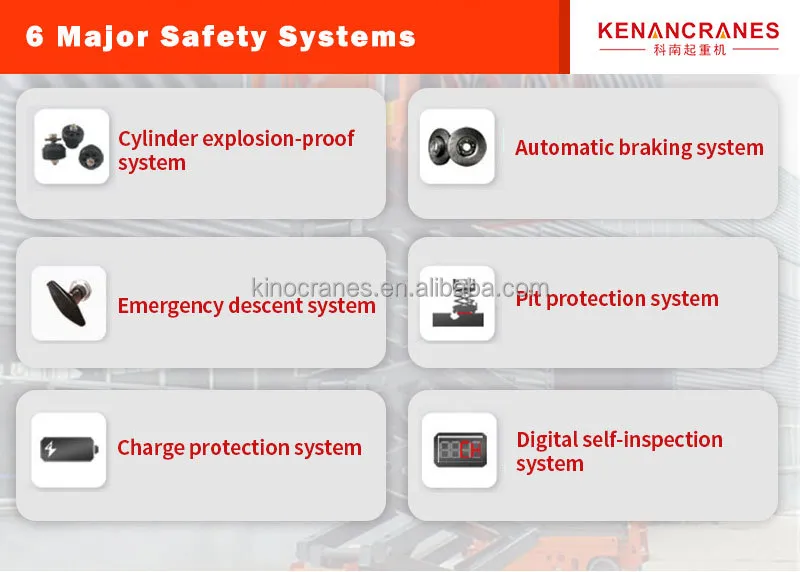

Power off and fall prevention, emergency descent, and overload high voltage protection.

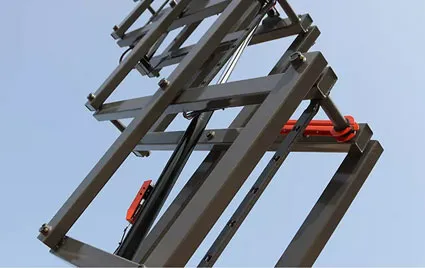

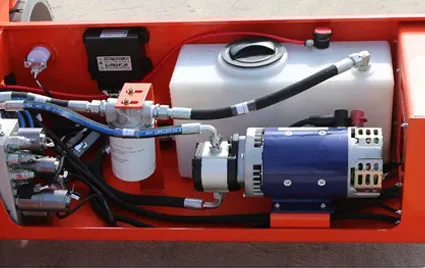

Built-in explosion-proof valve and high-quality sealing rings ensure reliable, noise-free operation.

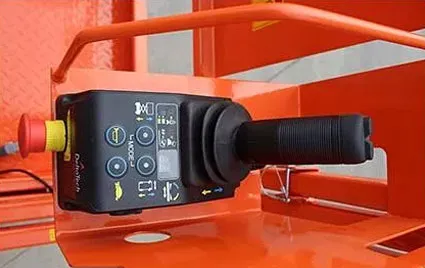

Easy control for lifting, moving, or steering with adjustable speed settings.
Strong overcharge resistance, large starting current, and long storage life.
| Self-propelled Hydraulic Drive | ||||||
| Model | Working Height | Platform Height | Platform Dimensions | Working Loads | Lifting Speed | Total Weight |
| KSL-06A | 8m | 6m | 2.29*0.81*1.1m | 380kg | 3-5m/min | 1880kg |
| KSL-06 | 8m | 6m | 2.29*1.13*1.1m | 550kg | 3-5m/min | 2050kg |
| KSL-08A | 10m | 8m | 2.29*0.81*1.1m | 230kg | 3-5m/min | 2030kg |
| KSL-08 | 10m | 8m | 2.29*1.13*1.1m | 450kg | 3-5m/min | 2190kg |
| KSL-10 | 12m | 10m | 2.29*1.13*1.1m | 320kg | 3-5m/min | 2500kg |
| KSL-12 | 13.8m | 11.8m | 2.29*1.13*1.1m | 320kg | 3-5m/min | 2895kg |
| KSL-14 | 15.8m | 13.8m | 2.67*1.13*1.1m | 227kg | 3-5m/min | 3390kg |
