Hot Selling Electric Portable Mini Hydraulic Scissor Lift Table Fixed Small Electric Mini Hydraulic Scissor Lift Table /Scissor Lift Platform

1 / 5

Hot Selling Electric Portable Mini Hydraulic Scissor Lift Table Fixed Small Electric Mini Hydraulic Scissor Lift Table /Scissor Lift Platform

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info

Carrying Capacity

Weight Level

Moves

Stationary

Driven Type

Hydraulic

Running Mode

Stationary

Feature

Explosion-Proof, Insulating

Certification

GS, CE, ISO 9001

Machine Item

Electric Portable Mini Scissor Lift Table

Voltage

380 V, 50 Hz, 3 Phase

Warranty Time

12 Months

Net Weight

160-540kg

HS Code

8427900000

Production Capacity

5000 Per Week

Product Description

Fixed lifting platform are versatile special equipment for aerial work. Its scissor mechanical structure makes the lifting platform have higher stability, wide working platform and high carrying capacity, which makes the working range of the aerial work larger and suitable for multiple people to work at the same time. It makes work more efficient and safer.

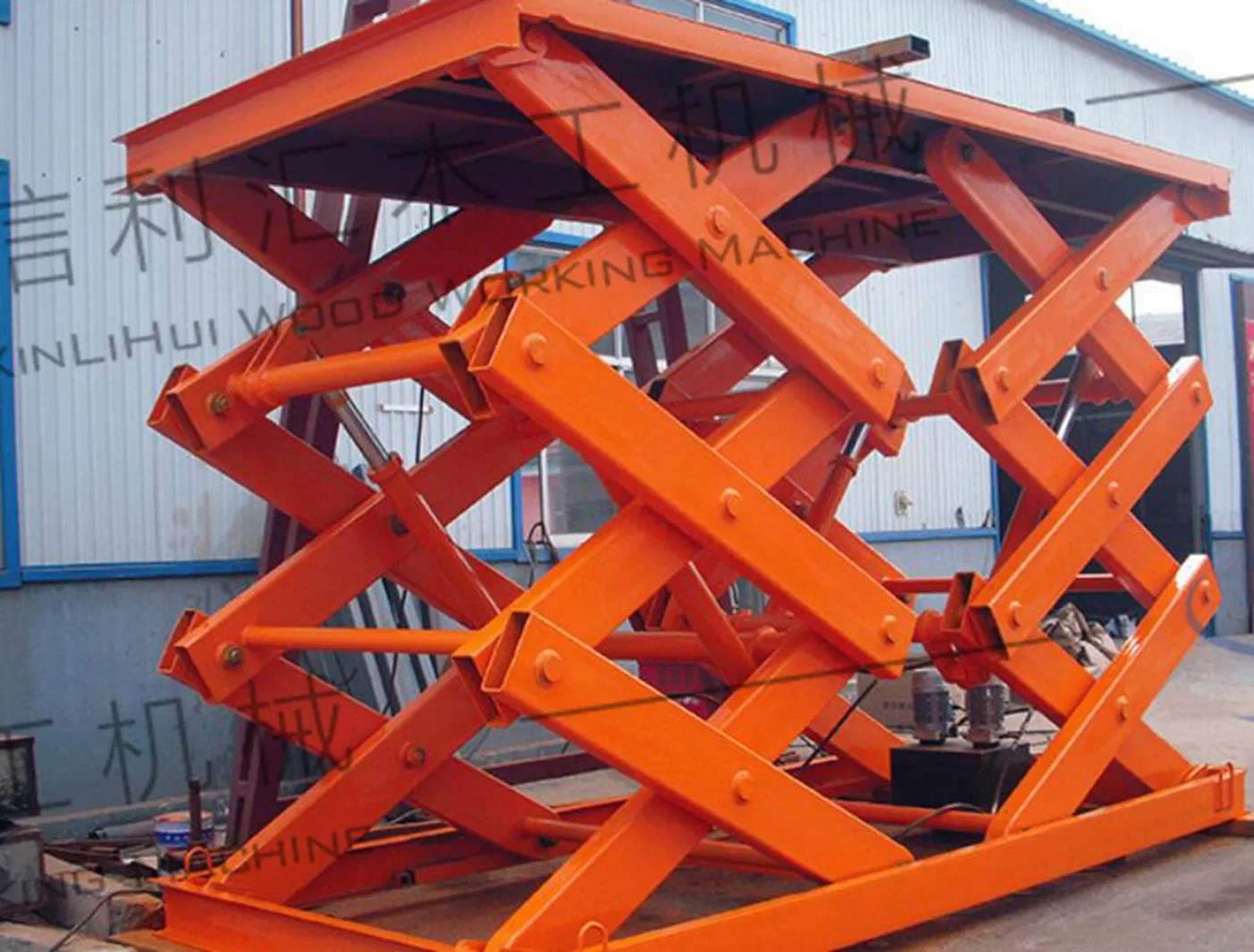

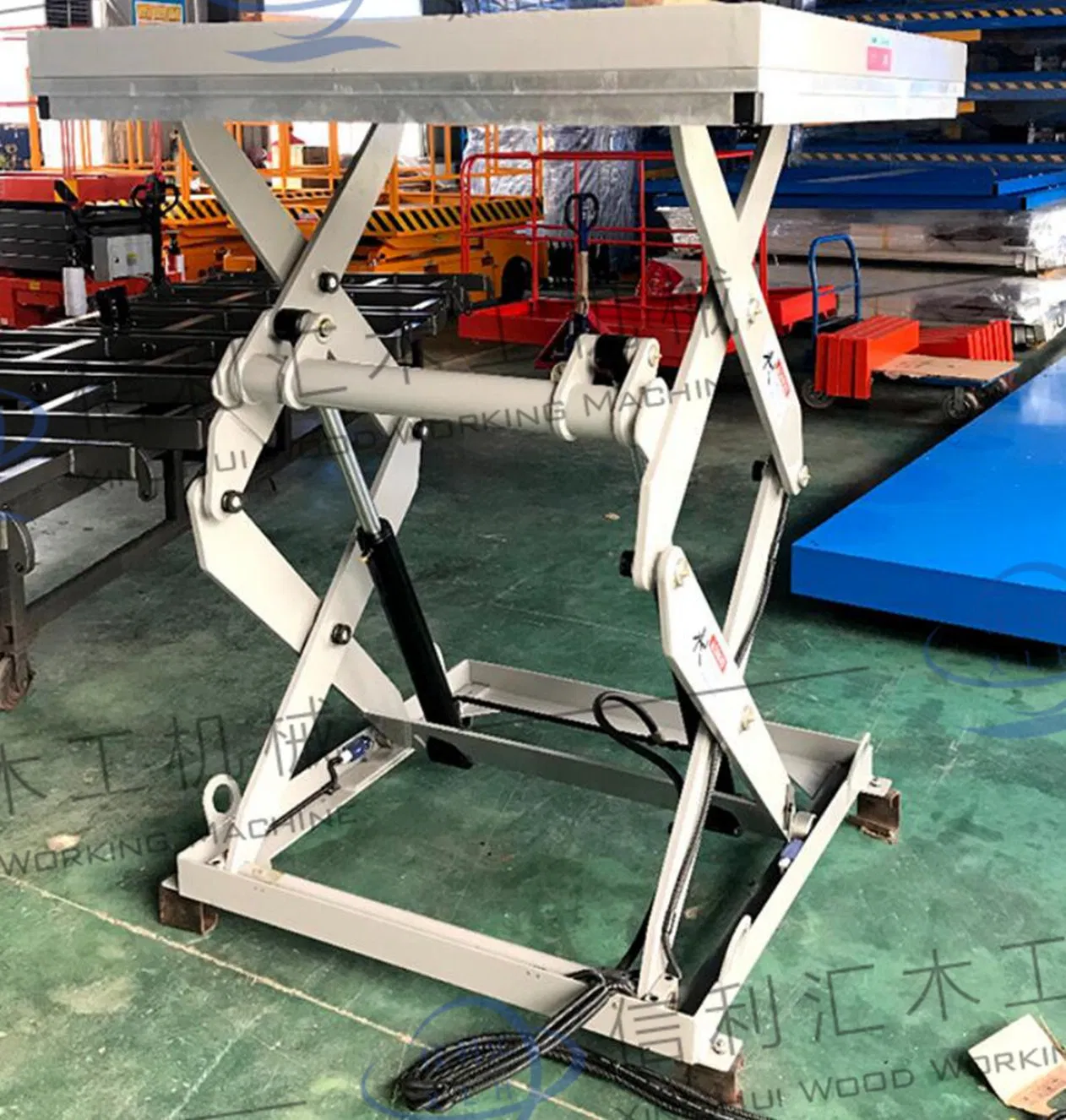

Detail machine pictures, all photos are for 100% real shooting!

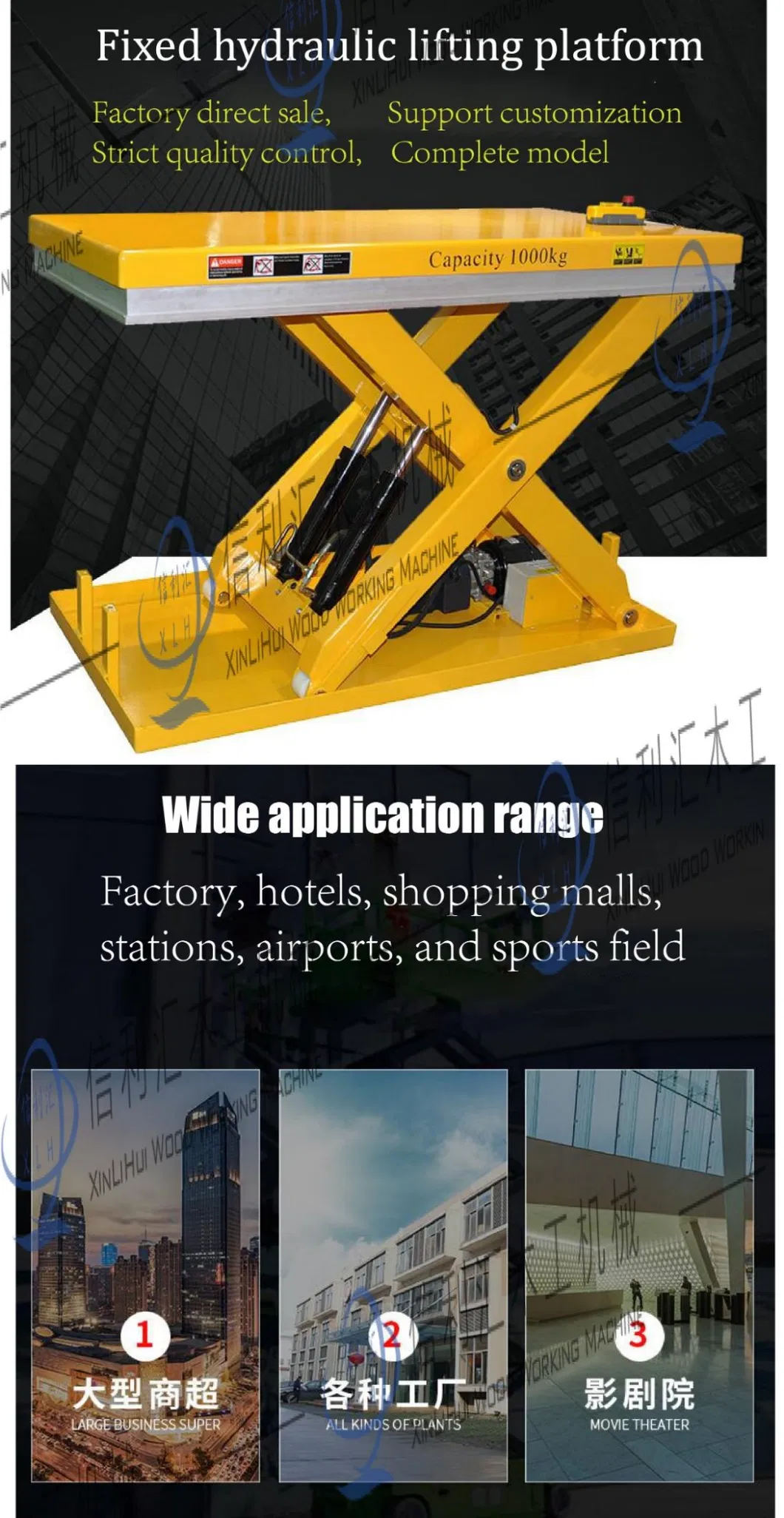

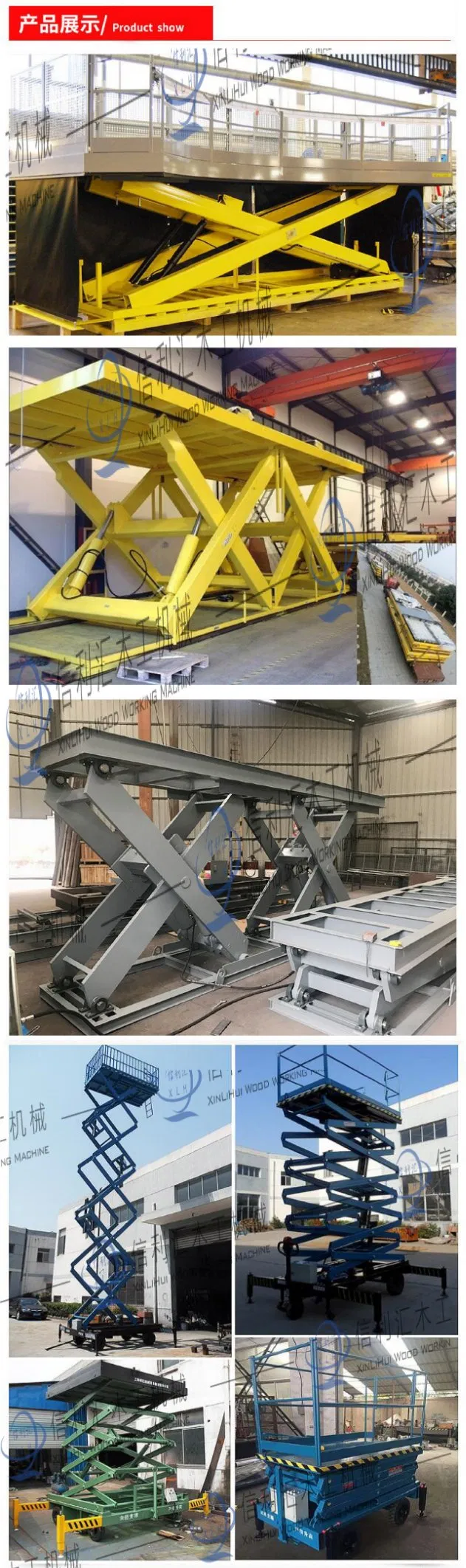

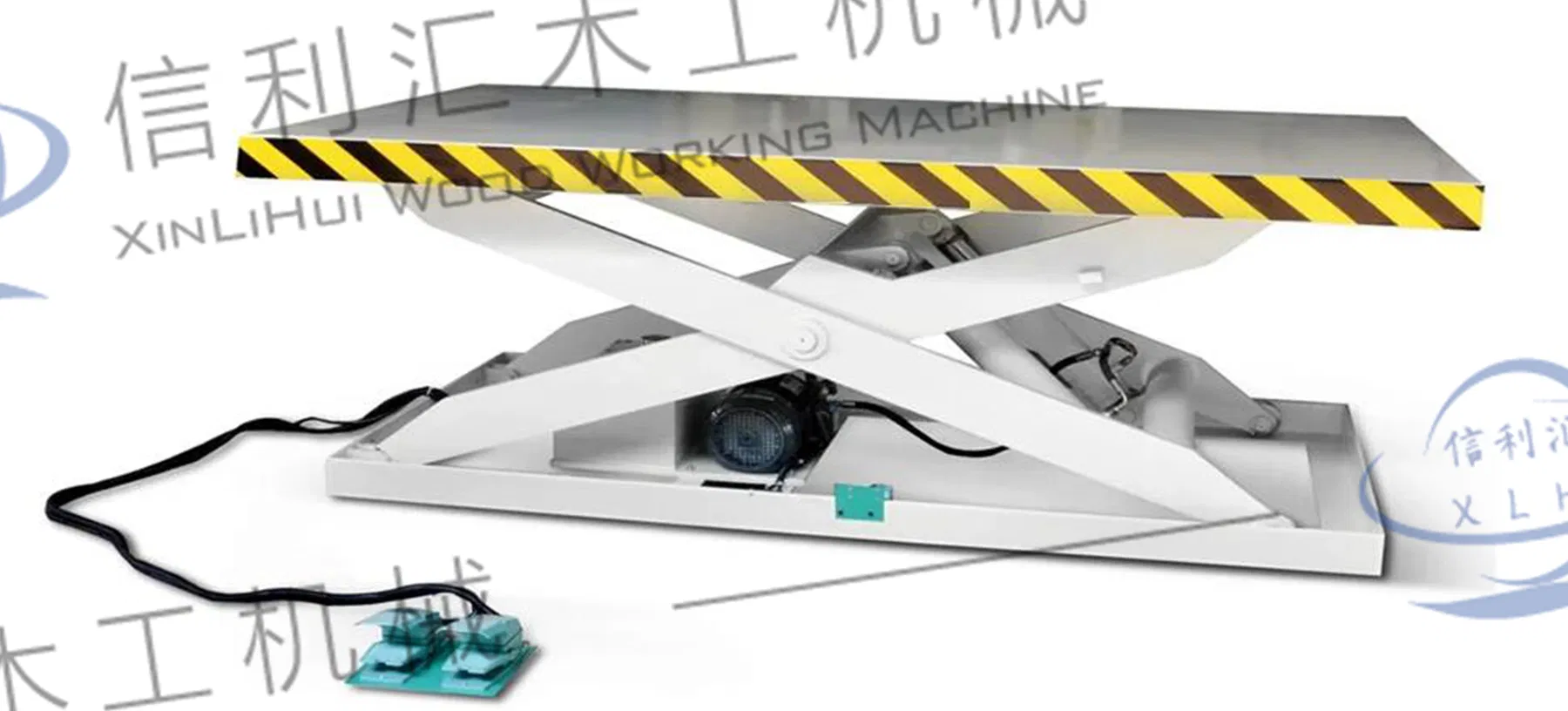

1. Product Show

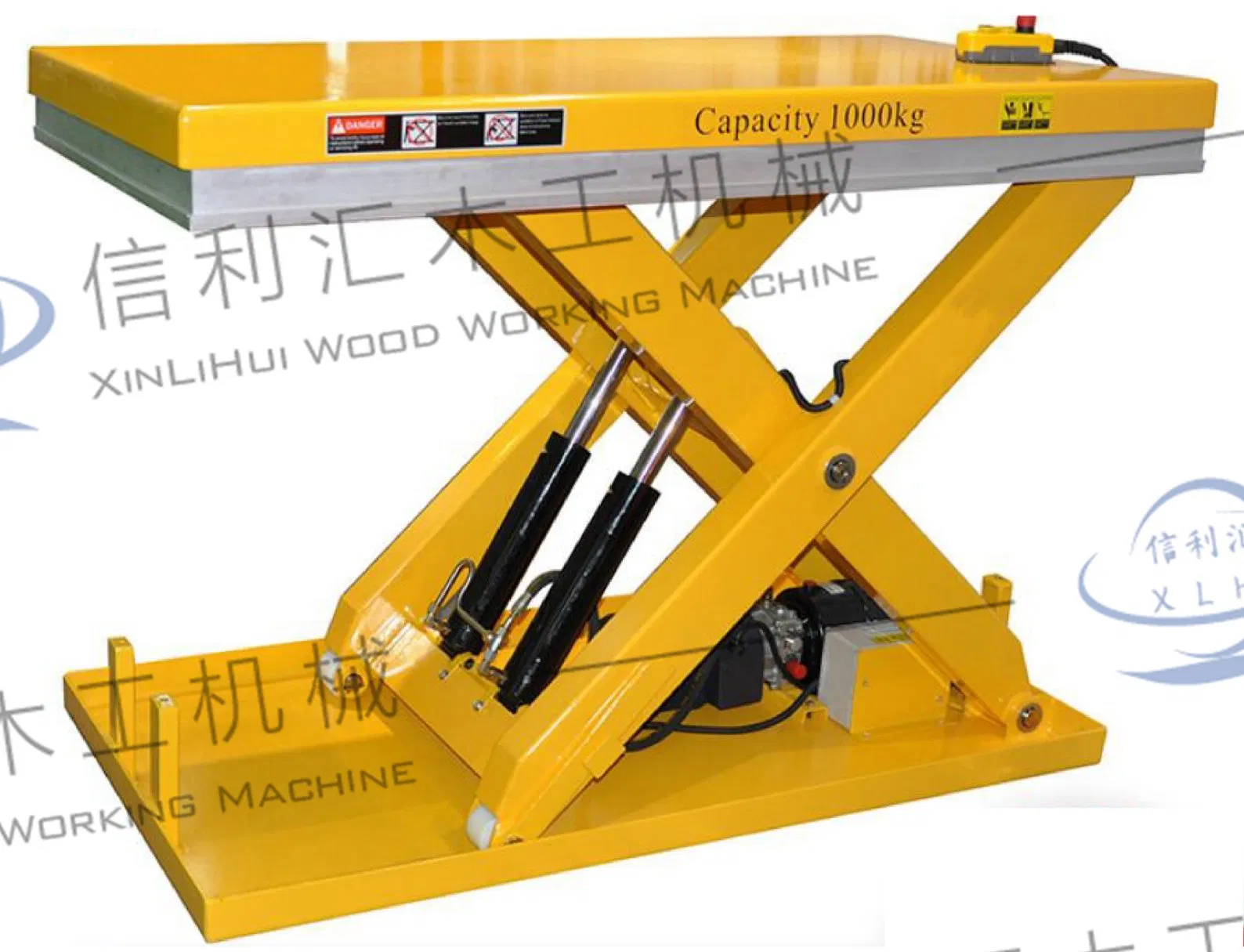

Electric Portable Mini Hydraulic Scissor Lift Table

2. Technical Specifications

Model	Capacity (kg)	Lowered H (mm)	Raised H (mm)	Platform Size (mm)	Lift Time (s)	Power Pack	Weight (kg)
HW1001	1000	205	990	820×1300	20~25	380V/1.1kw	160
HW1004	1000	240	1300	1000×1700	30~35	380V/1.1kw	210
HW2001	2000	230	1000	850×1300	20~25	380V/2.2kw	235
HW2006	2000	250	1300	1000×2000	25~35	380V/1.5kw	315
HW4001	4000	240	1050	1200×1700	30~40	380V/2.2kw	375
HW4007	4000	350	1300	1700×1500	35~45	380V/2.2kw	570

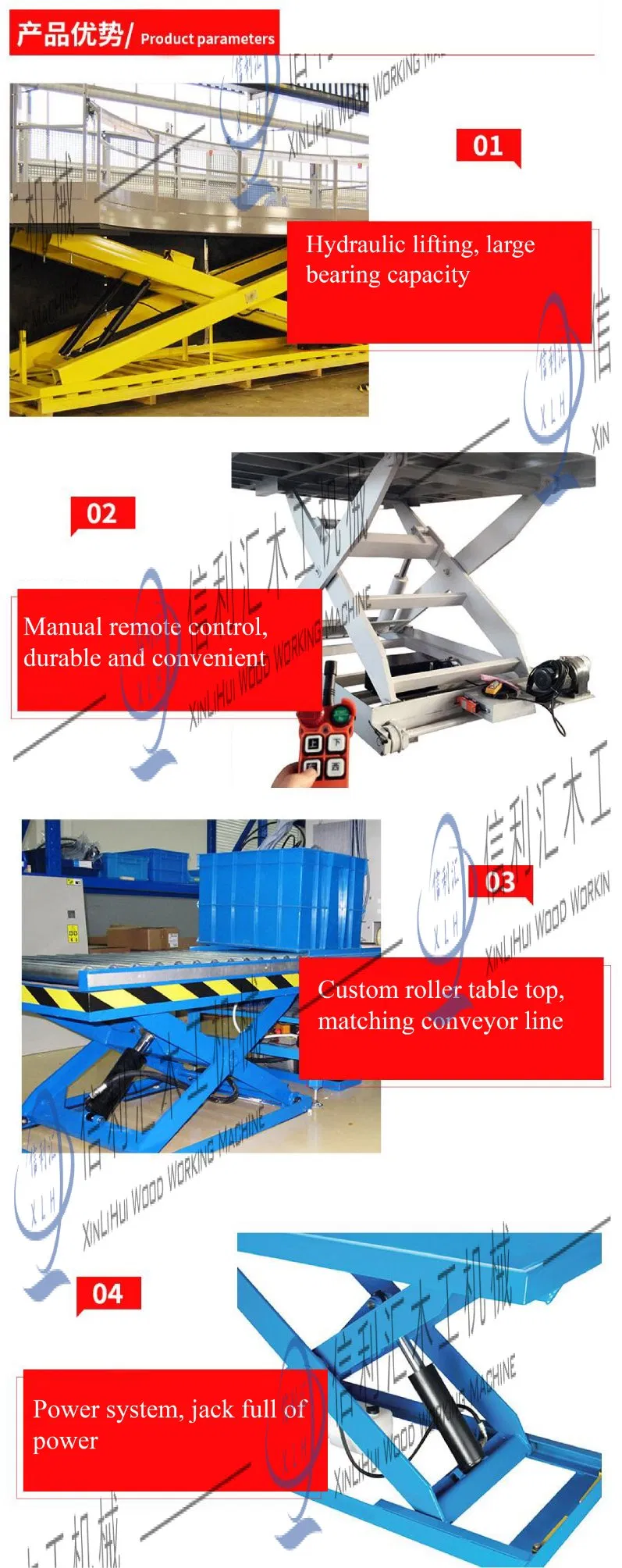

3. Advantages

Heavy Duty Design
HW series lift tables meet EN norm and ANSI/ASME safety standards.
Can be used in above-floor or in-floor pit applications.

4. Standard Safety Features

Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
Low-tension (24V) control box with up-down buttons.
Internal power pack equipped with relief valve against overloading.
Heavy duty cylinders with drainage system and check valve.
Safety clearance between scissors to prevent trapping.

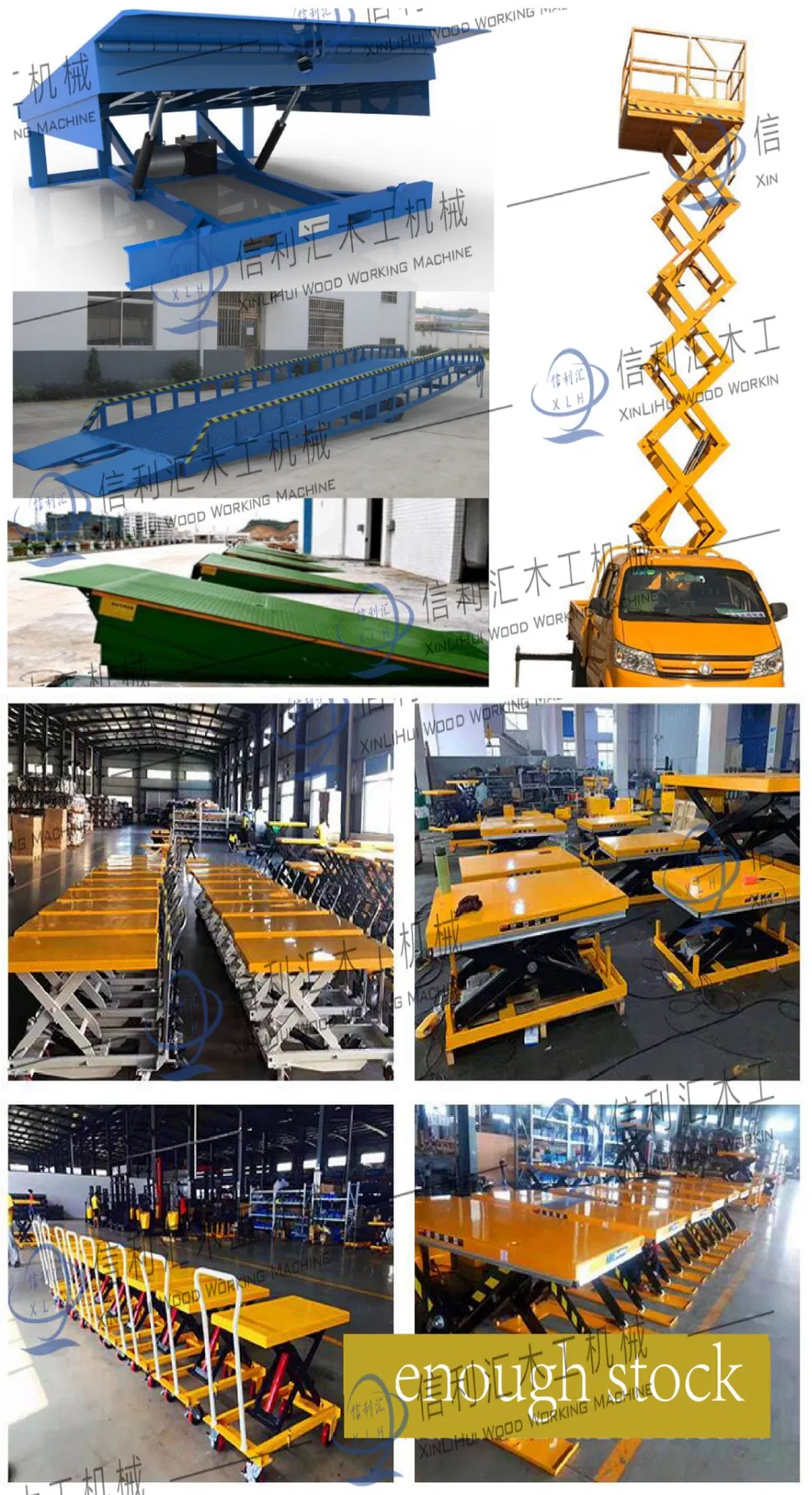

5. Other Models & Equipment

Frequently Asked Questions (FAQ)

Q1: What is the maximum carrying capacity of the scissor lift tables? A: The equipment supports weight levels ranging from 1000kg up to 4000kg, depending on the specific model selected.

Q2: What are the safety standards for this equipment? A: All HW series lift tables meet the EN norm and ANSI/ASME safety standards, featuring aluminum safety bars and overload relief valves.

Q3: What is the required voltage for operation? A: The standard requirement is 380 V, 50 Hz, 3 Phase power supply.

Q4: How long is the warranty and after-sales support? A: We provide a 12-month warranty. Engineers are available to service machinery overseas if needed.

Q5: What is the typical delivery timeframe? A: Standard delivery details indicate shipment approximately 15 days after the receipt of payment.

Q6: Are the lift tables suitable for pit installation? A: Yes, these models are designed for versatility and can be used in both above-floor and in-floor pit applications.
