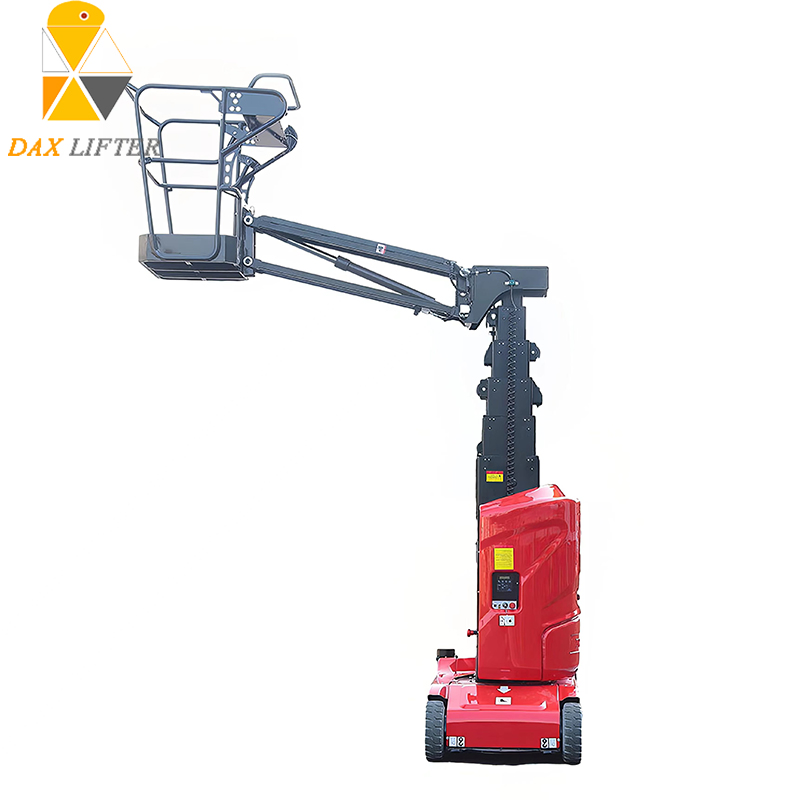

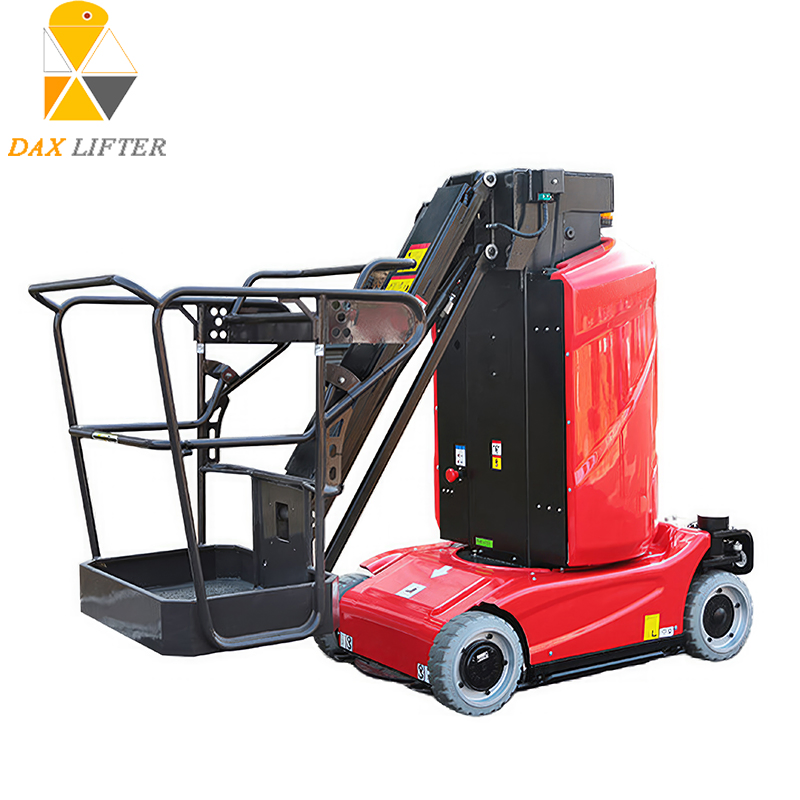

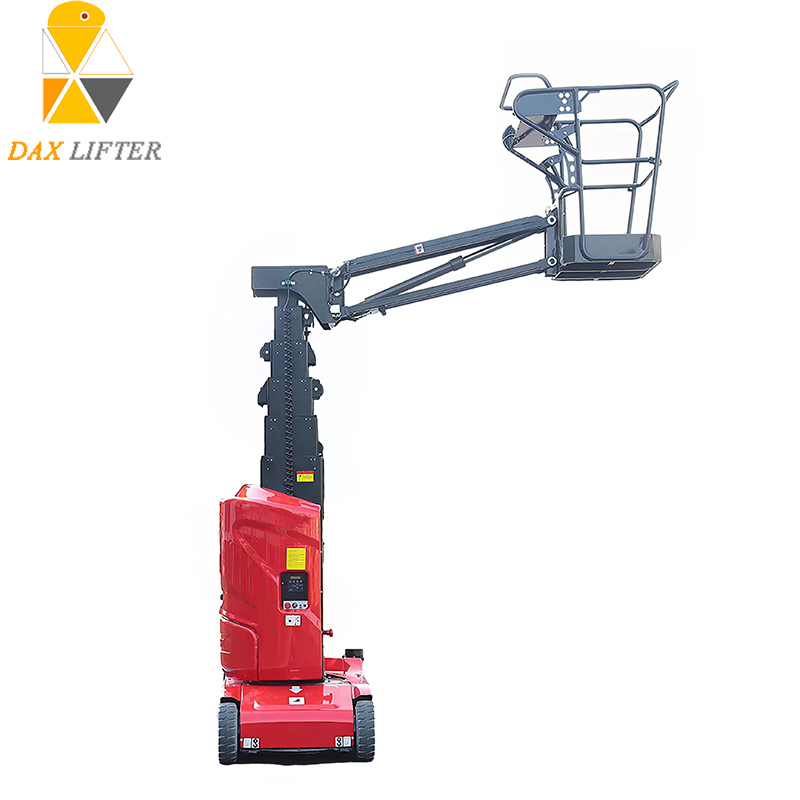

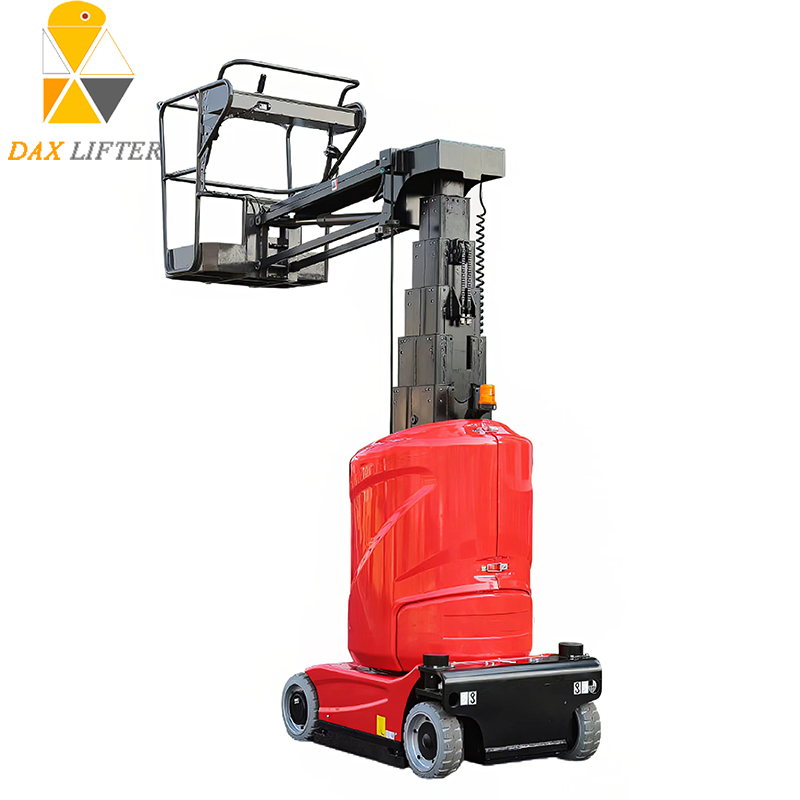

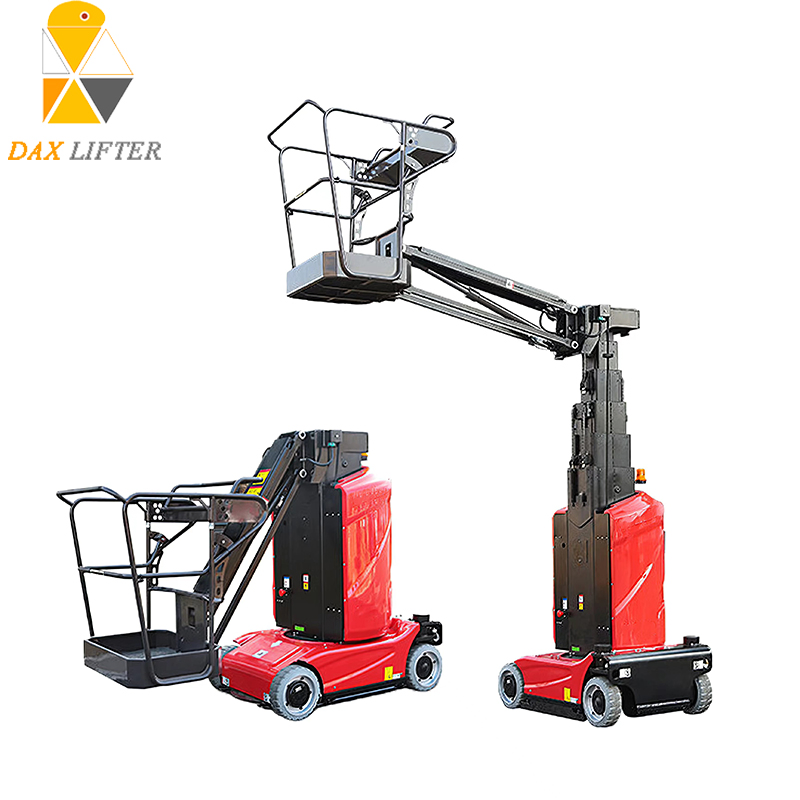

This model is a small, flexible aerial work equipment designed for restricted working spaces such as airports, hotels, and supermarkets. Its primary advantage is providing high-end configuration at a more competitive price point.
| Model | DXTT92-FB |
|---|---|
| Max. Working Height | 11.2m |
| Max. Platform Height | 9.2m |
| Loading Capacity | 200kg |
| Max. Horizontal Reach | 3m |
| Up and Over Height | 7.89m |
| Overall Length(A) | 2.53m |
| Overall Width(B) | 1.0m |
| Overall Height(C) | 1.99m |
| Platform Dimension | 0.62m × 0.87m × 1.1m |
| Travel Speed (Stowed/Raised) | 4.5km/h / 0.5km/h |
| Drive Motors | 24VDC / 0.9kW |
| Lifting Motor | 24VDC / 3kW |
| Battery | 24V / 240Ah |
| Weight | 2950kg |
