Basic Specifications
Application
Workshop, Warehouse, Building Construction
Lift Mechanism
Telescoping Lift
Carrying Capacity
Customizable
Lift Height
2m, 3m, 4m, 5m, 6m, 8m
Product Description

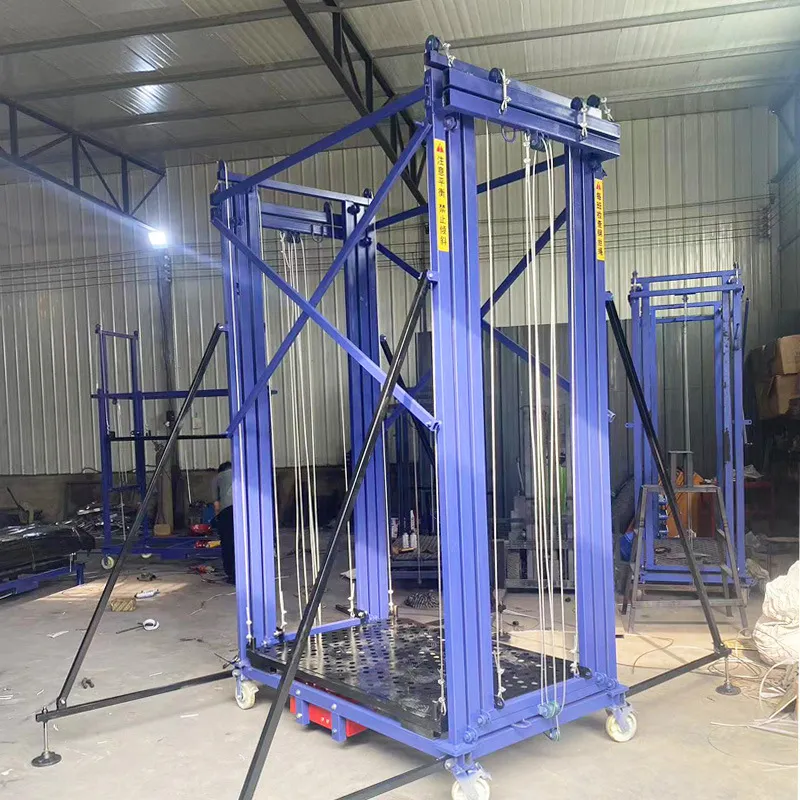

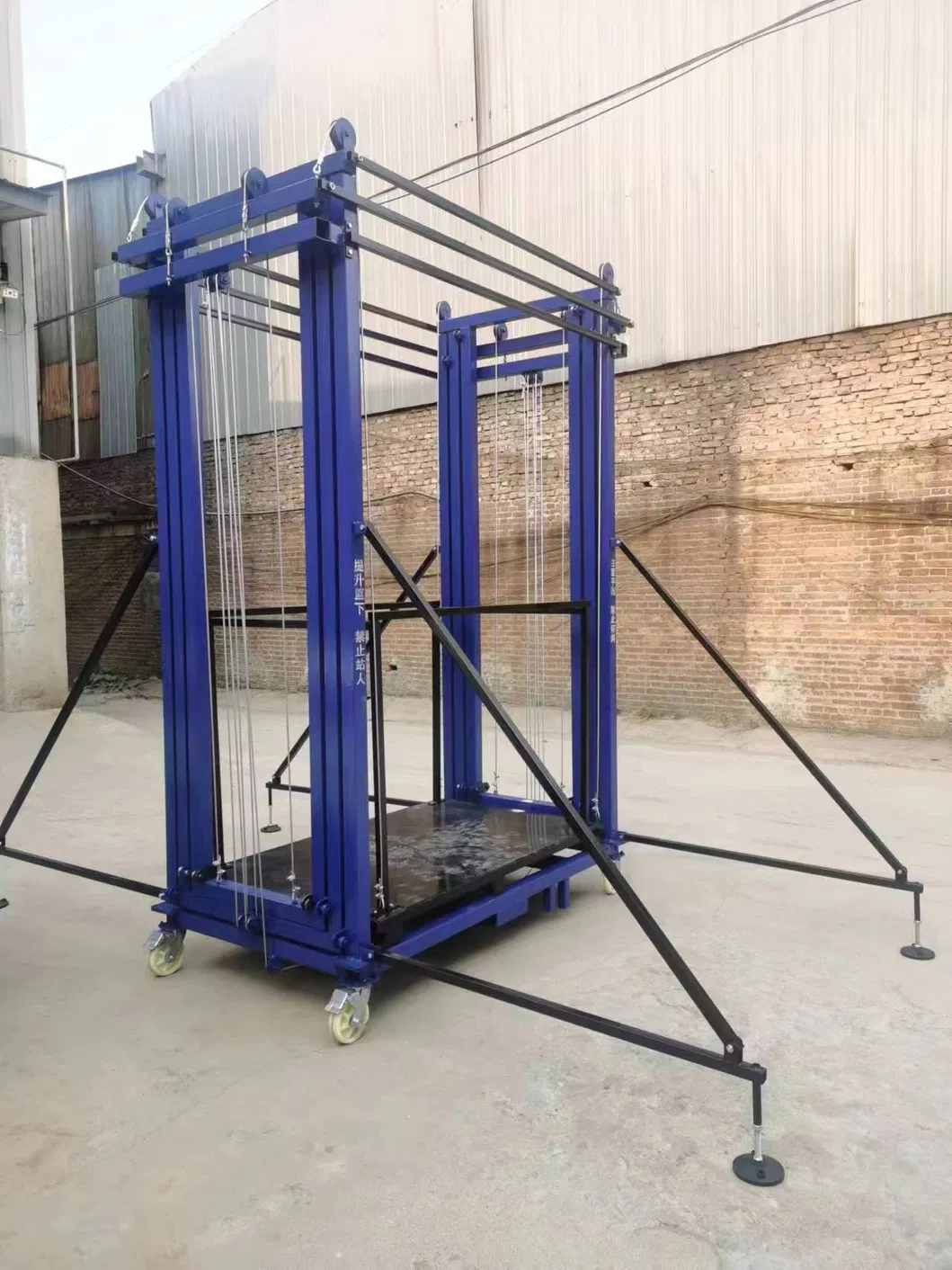

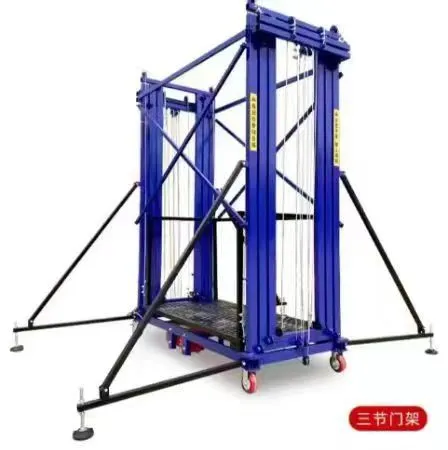

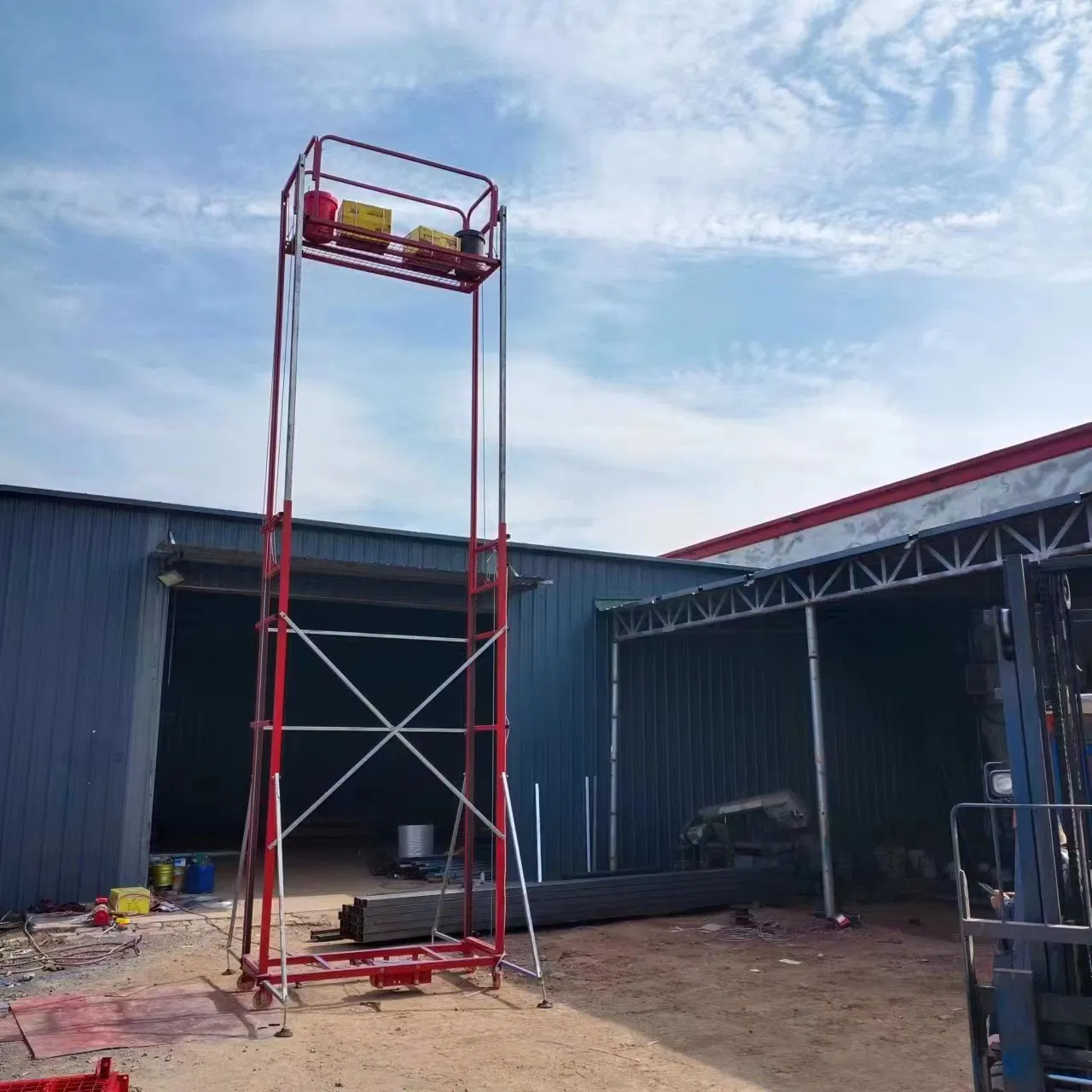

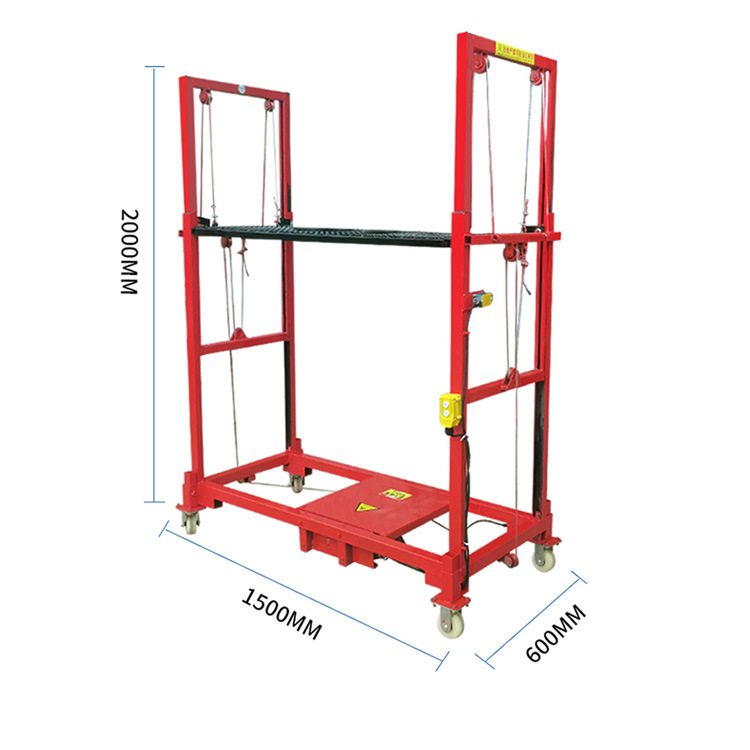

Electric Lifting Scaffolding with Wheels

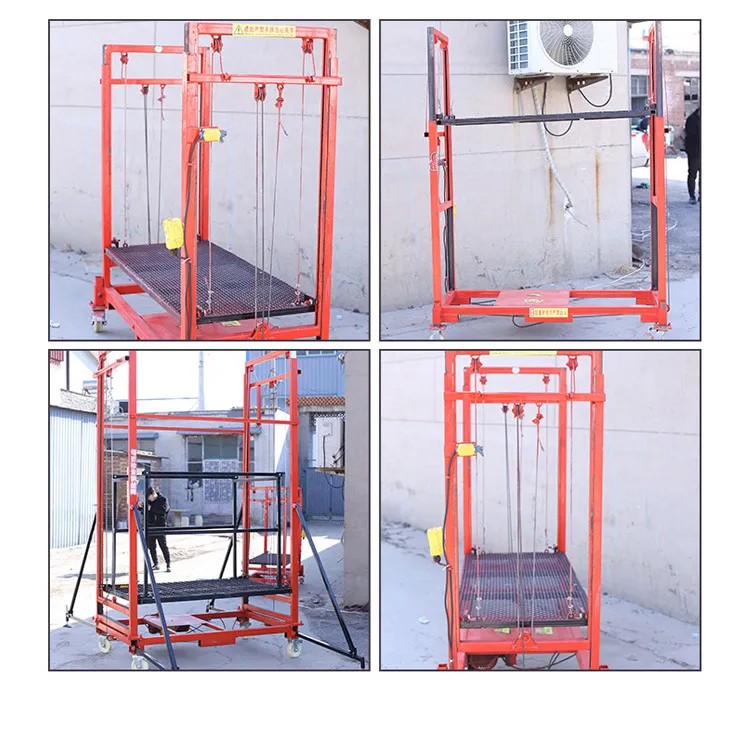

Electric lifting scaffolding is a specialized lifting solution designed for industrial and civil building exterior wall whitewashing and maintenance. It is constructed from high-quality steel and features a comprehensive system including pulleys, protective railings, steel wire ropes, a load board, detachable support legs, and universal wheels.

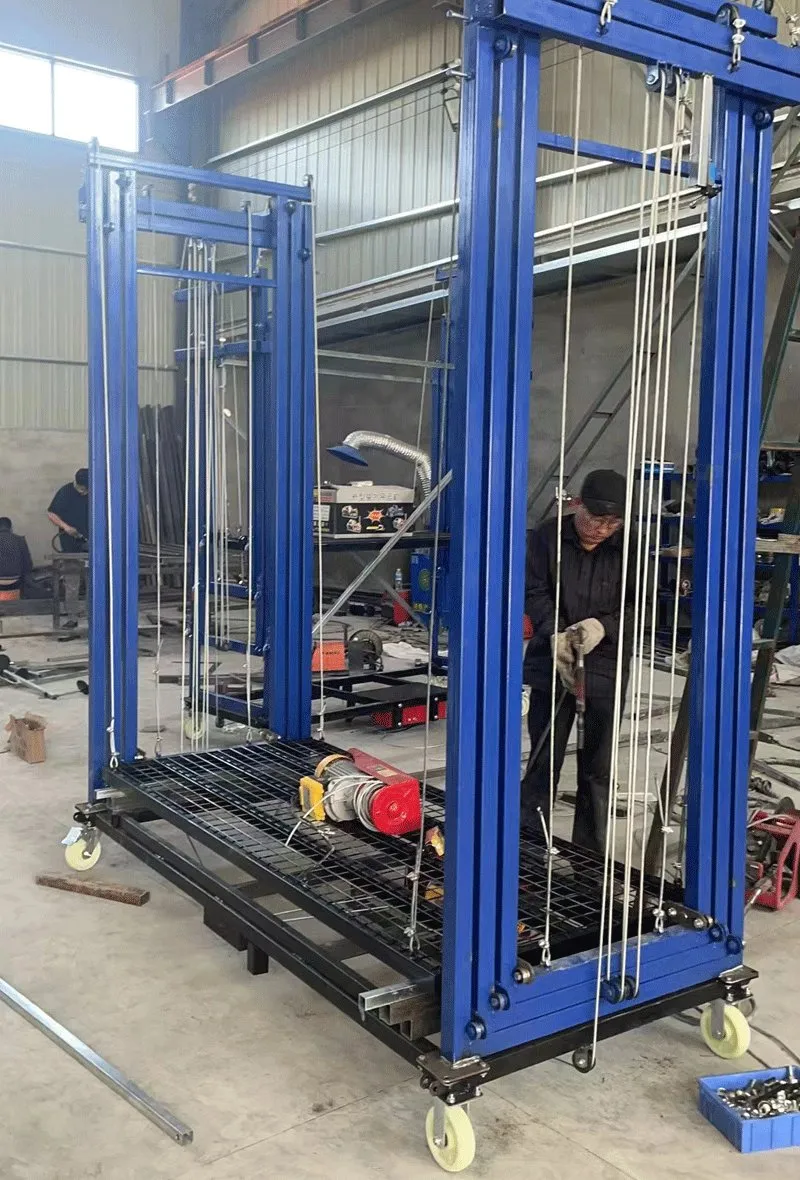

Driven by an electric motor and worm gearbox, the system operates through coaxial reels that collect and release wire ropes to drive the scaffolding lift. This system allows construction personnel to manipulate the height themselves, offering significant advantages in ease of operation, maintenance, and high production efficiency.
Key Features
✔
Versatile Application: Perfect for construction, special operations, and indoor/outdoor cleaning.
✔
Flexible Mobility: Features universal wheels for easy movement and convenient disassembly.
✔
Remote Operation: Safe and reliable remote control system reduces the need for workers to climb frequently.
✔
High Efficiency: One electric scaffold provides the productivity equivalent of 5-8 traditional scaffolds.
Technical Parameters
| Lifting Height |
Load Capacity |
Platform Size (m) |
Overall Size (m) |
Weight |
| 2m | 300kg/500kg | 1.3*0.68 | 1.5*0.7 | 140kg/180kg |
| 2.5m | 300kg/500kg | 1.3*0.68 | 1.5*0.7 | 150kg/190kg |
| 3m | 300kg/500kg | 1.3*0.68 | 1.5*0.7 | 170kg/1200kg |
| 3.5m | 300kg/500kg | 1.3*0.68 | 1.5*0.7 | 180kg/210kg |
| 4m | 300kg/500kg | 1.4*0.78 | 1.6*0.8 | 190kg/220kg |
| 5m | 300kg/500kg | 1.4*0.78 | 1.6*0.8 | 210kg/240kg |
| 6m | 500kg | 1.6*0.98 | 1.8*1 | 250kg/300kg |
| 8m | 500kg | 1.6*0.98 | 1.8*1 | 360kg |

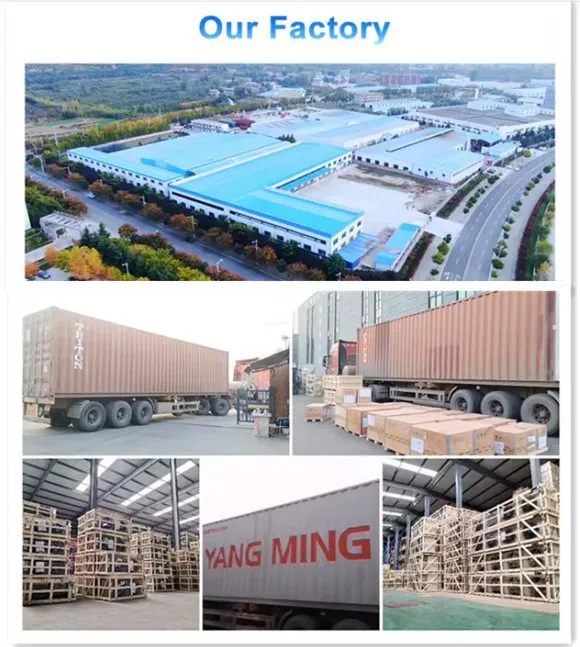

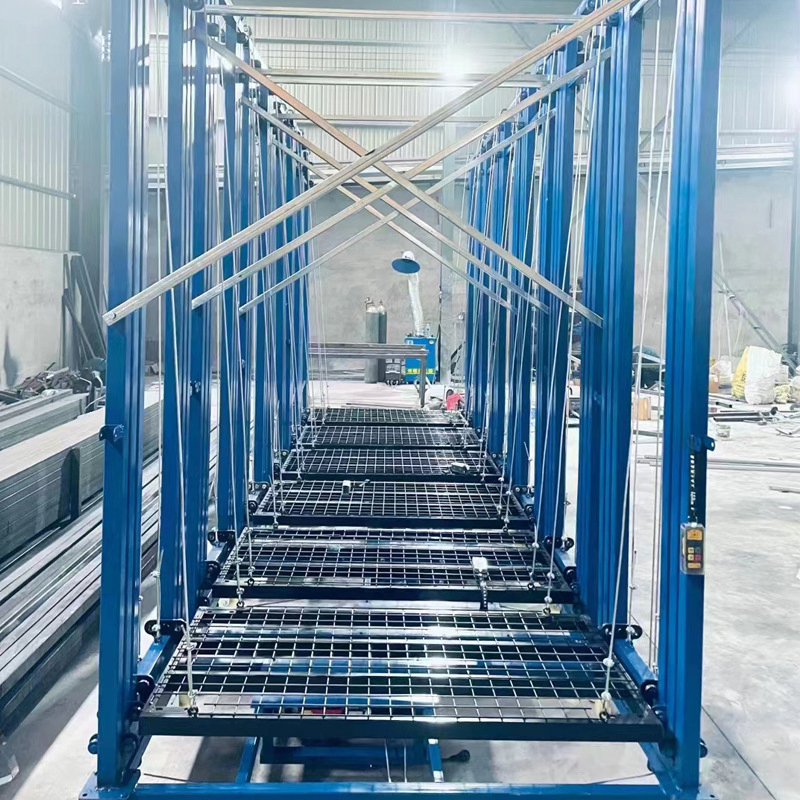

Applications & Production
Frequently Asked Questions
Q1: What is the maximum load capacity of the electric scaffold?
A: Depending on the model, the standard load capacity ranges from 300kg to 500kg, which is suitable for most maintenance and decoration tasks.
Q2: How high can this lifting platform reach?
A: We offer multiple height configurations including 2m, 3m, 4m, 5m, 6m, and up to a maximum of 8 meters lifting height.
Q3: Is the scaffolding easy to move between different work sites?
A: Yes, it is equipped with universal wheels for easy movement and a foldable/detachable structure that makes transport and storage very convenient.
Q4: How does the electric motor control the lifting process?
A: The system uses an electric motor and worm gearbox to drive coaxial reels, which manage the wire rope collection and release. It can be easily operated via remote control.
Q5: What are the primary safety features?
A: The platform includes protective railings, stable support legs, high-strength steel wire ropes, and is CE certified to ensure operator safety during high-altitude tasks.
Q6: Can this replace traditional scaffolding?
A: Yes, one electric lifting scaffold is significantly more efficient, often matching the productivity of 5 to 8 traditional scaffolds while reducing physical labor and risk.
