Home Use Electric Wheelchair Accessible Vertical Platform Lift

1 / 5

Home Use Electric Wheelchair Accessible Vertical Platform Lift

Customization:	Available
After-sales Service:	24 Hours Technical Support
Warranty:	12 Months

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

Y-160

Driving Type

Hydraulic Type

Capacity

250kg

Persons

2-3 Persons

Speed

70mm/S

Control Mode

Push-Button Control

Position

Outdoor or Indoor

Elevator Door

Customized

Deceleration Device

Included

Lifting Height

1m-10m

HS Code

8428909090

Origin

China

🛠️ Product Description

The wheelchair platform lift for home is a highly customized solution designed for lifting cargo or providing accessibility for disabled individuals. It is specifically engineered to bridge height differences between floors safely and efficiently.

Key Advantages:

Accommodates both wheelchairs and escorts comfortably.
Smooth running speed and high safety standards.
Easy installation with small footprint requirements.
Non-pit installation: directly fixed to the concrete floor.

⚙️ Technical Features

Platform Size	1650mm(L) * 1100mm(W)
Max Platform Height	6m
Min Base Height	60mm from the ground
Lifting Speed	70mm/s - 90mm/s
Loading Capacity	250KG ~ 350KG
Power Supply	1.1KW, 220V 50HZ (Customized available)
Drive System	Hydraulic or Screw
Material	Aluminum Alloy / 304 Stainless Steel
Installation	Non-pit, directly fixed to concrete floor
Safety Devices	Safety Interlock, Safety Sensor, Emergency Lowering, Auto-flap

📸 Product Gallery

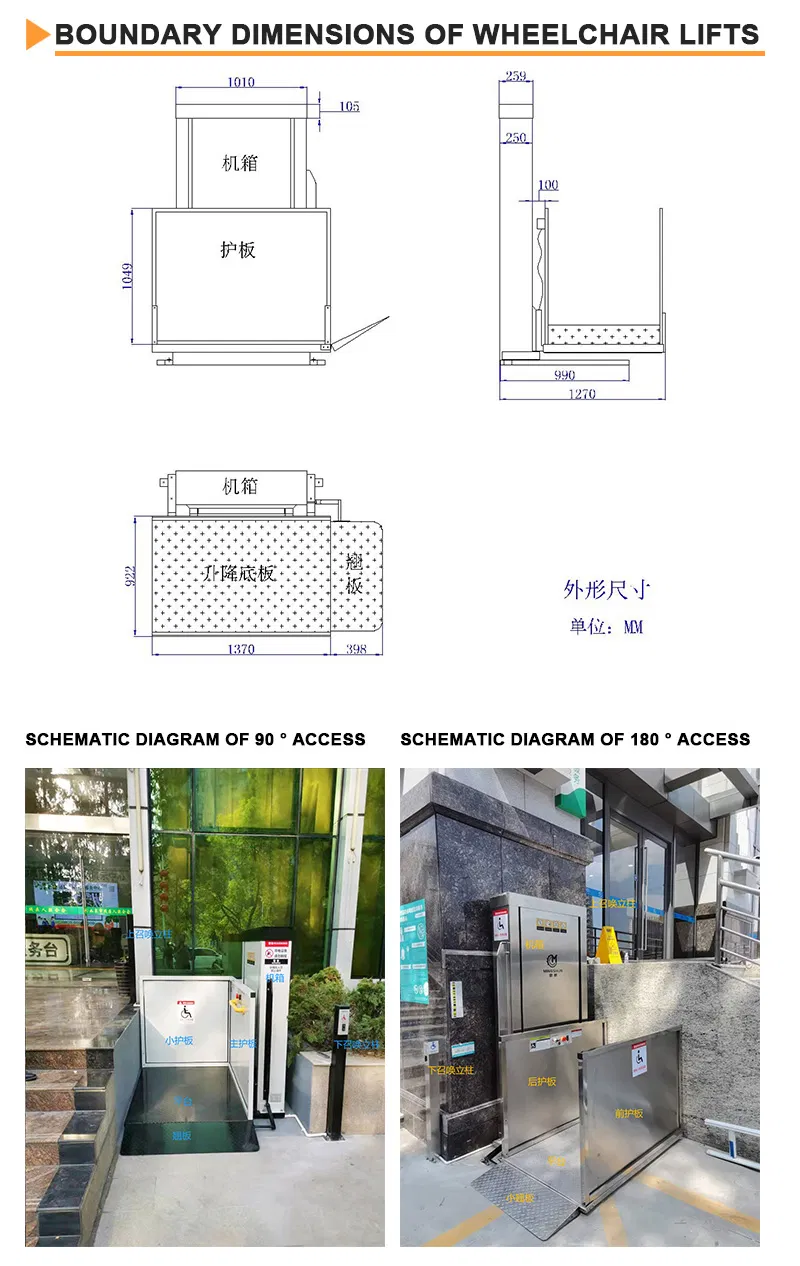

Wheelchair Vertical Platform Lift Display 1

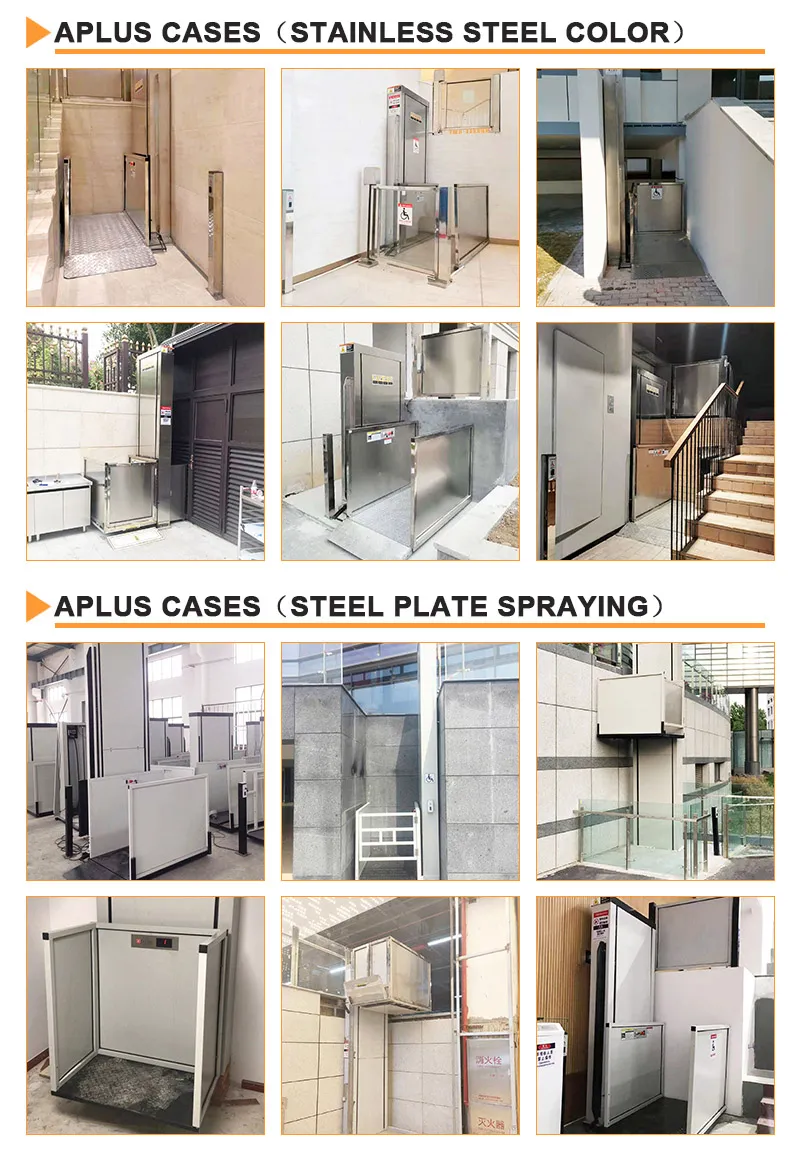

Wheelchair Vertical Platform Lift Display 2

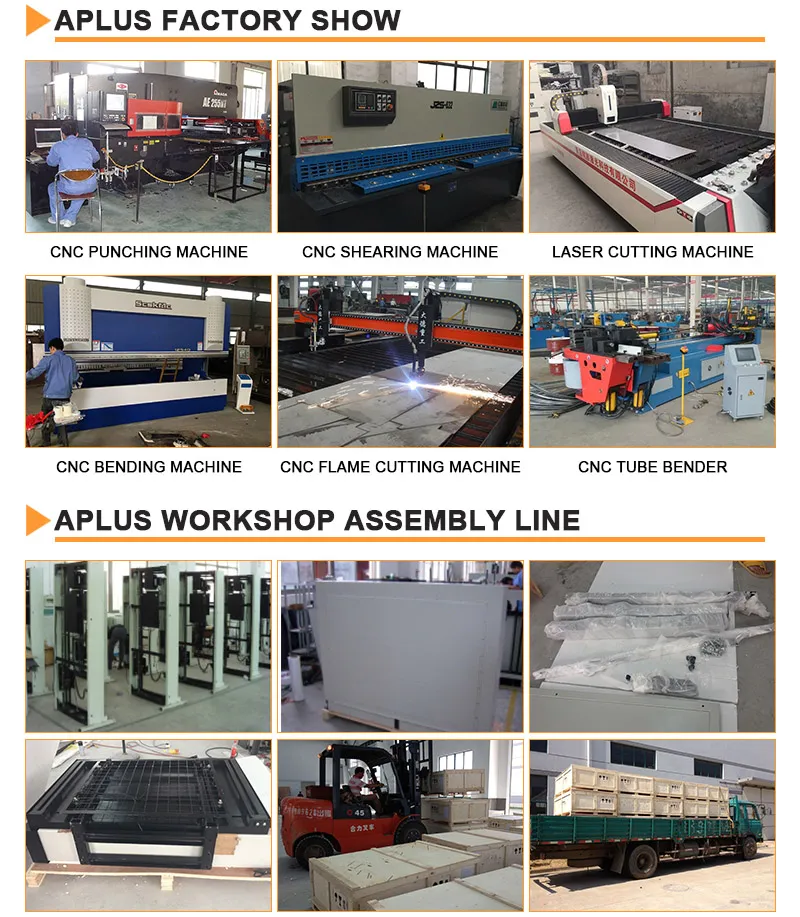

Wheelchair Vertical Platform Lift Display 3

Frequently Asked Questions

What is the maximum weight the platform can carry?

The standard loading capacity ranges from 250KG to 350KG, which is sufficient for a wheelchair user and an escort.

Does this lift require a pit for installation?

No, this lift is designed for non-pit installation. It can be directly fixed to a level concrete floor.

Can the platform lift be installed outdoors?

Yes, the platform is suitable for both indoor and outdoor working conditions, with a working temperature range of -10°C to 60°C.

What happens if there is a power failure?

The lift includes an emergency lowering system. The platform can be lowered manually by opening the hydraulic valve or using the rolling screw rod.

What safety sensors are included?

The lift is equipped with a safety sensor on the bottom edge. If it meets any obstacle during operation, the movement stops immediately.

Are the dimensions of the lift customizable?

Yes, the platform size, lifting height, and entry/exit directions (90° or 180°) can be customized to fit your specific space requirements.
