Heavy-Duty Hydraulic Lift Platform for Safe Material Handling
Heavy-Duty Hydraulic Lift Platform for Safe Material Handling
Heavy-Duty Hydraulic Lift Platform for Safe Material Handling
Heavy-Duty Hydraulic Lift Platform for Safe Material Handling
Heavy-Duty Hydraulic Lift Platform for Safe Material Handling
1 / 5
Heavy-Duty Hydraulic Lift Platform for Safe Material Handling
Heavy-Duty Hydraulic Lift Platform for Safe Material Handling
Heavy-Duty Hydraulic Lift Platform for Safe Material Handling
Heavy-Duty Hydraulic Lift Platform for Safe Material Handling
Heavy-Duty Hydraulic Lift Platform for Safe Material Handling

Heavy-Duty Hydraulic Lift Platform for Safe Material Handling

Customization: Available
After-sales Service: Electronic Components Only Need to Be Replaced, No
Warranty: 1 Year
Send Inquiry

Product Description

📊 Basic Information
Model NO.
111
Application
Warehouse Crane
Lift Mechanism
Telescoping Lift
Carrying Capacity
Special Weight Level
Moves
Stationary
Driven Type
Hydraulic
Running Mode
Stationary
Feature
Explosion-Proof, Insulating
Certification
CE, ISO 9001
Hydraulic Type
Motor Power: 1.5-5.5kw; Voltage: AC 220V/380V/440V
Transport Package
Wooden Box
Origin
China
🔍 Product Overview
The unloading platform, also known as the unloading dock adjustment plate, loading and unloading platform, or height adjustment plate, is a bridge device that connects the freight car and the warehouse platform, used to solve the height difference problem between the two.

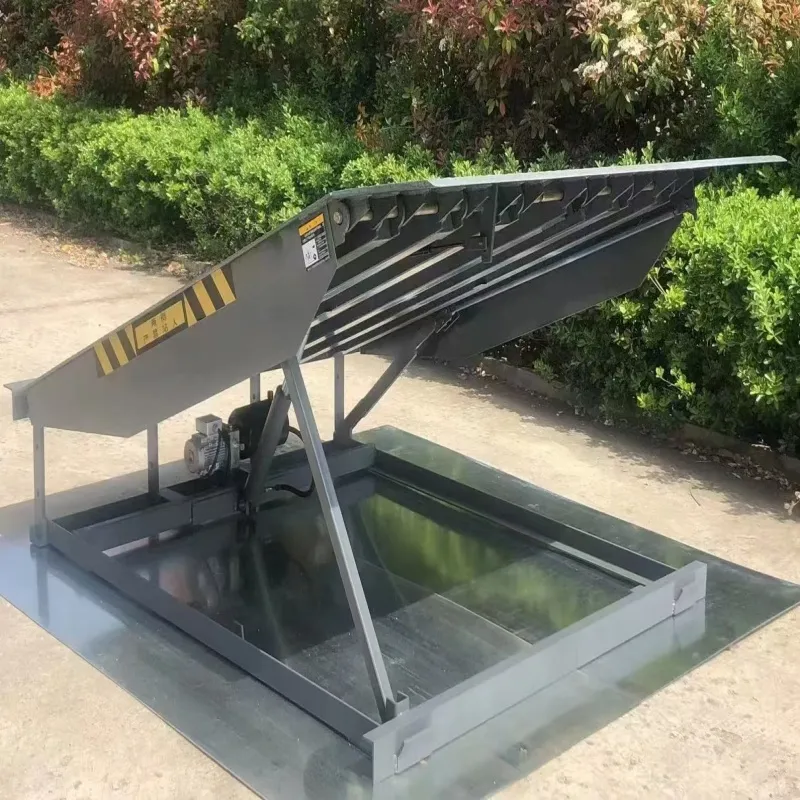

Heavy-Duty Hydraulic Lift Platform
🚀 Key Advantages
1. Ultimate Improvement of Homework Efficiency
Quick docking with hydraulic operation allows forklifts to directly enter the truck compartment, achieving seamless "door to door" loading. Speed can be increased by more than 50% compared to manual bridges.
2. Significantly Ensure Safety
Equipped with fall protection via standard lip plates and an anti-slip patterned steel surface to ensure friction in rainy or oily environments. Includes safety blocks and warning lights.
3. Effectively Reduce Overall Costs
Reduces manpower demand as one person can handle the process. Extends forklift service life by providing smooth transition channels and prevents cargo damage during bumps.
🎬 Operation Demonstration
📐 Technical Perspectives
Right Elevation
Right Elevation
Left Elevation
Left Elevation
Front Elevation
Front Elevation
⚙️ Technical Specifications
Parameter Item Technical Detail
Tongue Board16mm thick (including pattern)
Main Panel8mm thick embossed steel plate
Platform Tail Structure16mm Q235 high-strength carbon steel, 4 supports
Load Capacity8 Tons
Hydraulic CylinderMain: 65mm; Auxiliary: 55mm; Cold-rolled body
Panel Skeleton15# 6 H-beams, 5mm protective plates
Equipment Chassis10# high-strength channel steel
Safety Barrier5mm protective plates and 2mm safety shields
Surface FinishShot blasting, two coats primer, two coats topcoat (≥0.08mm)
Hydraulic Pump StationCE certified (380V, 50HZ)
Lifting Stroke1m
Height Adjustment Range+300mm / -300mm
Operating Temperature-30℃ to 60℃
🛠️ After-Sales Service
  • 📍 Standard Warranty: 12 months or 2,000 operating hours.
  • 📍 Extended Warranty: Optional coverage up to 36 months.
  • 📍 Global Support: 24/7 technical assistance and spare parts supply.
  • 📍 Training: On-site or remote operation and maintenance training.
❓ Frequently Asked Questions
What's the lead time for orders?
Standard models ship in 15–30 days; customized units require 30–45 days.
Do you provide after-sales service overseas?
Yes, we have partnered service centers in key regions and offer 24/7 global technical support.
Can I request a custom unloading platform size?
Absolutely! We offer tailored attachments and configurations based on your specific requirements.
What documents do you provide for export?
We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and COC certifications.
How do I place an order?
Please contact us via email or phone for a formal quote, and then confirm your order with a Purchase Order (PO).
What safety features are included?
The platform includes anti-slip surfaces, fall protection lip plates, safety blocks to prevent truck movement, and protective toe guards.
