Product Description

Basic Information

Model NO.

ID1006

Application

Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane

Lift Mechanism

Scissor Lift

Driven Type

Hydraulic

Running Mode

Stationary

Rated Weight

1000kg

Table Size

1300*850mm

Certification

CE, ISO 9001

Voltage

380V/220V

Production Capacity

100 Sets/Month

Product Overview

Customized Lift Table for Factory Production Lines with Specific Load and Size Requirements

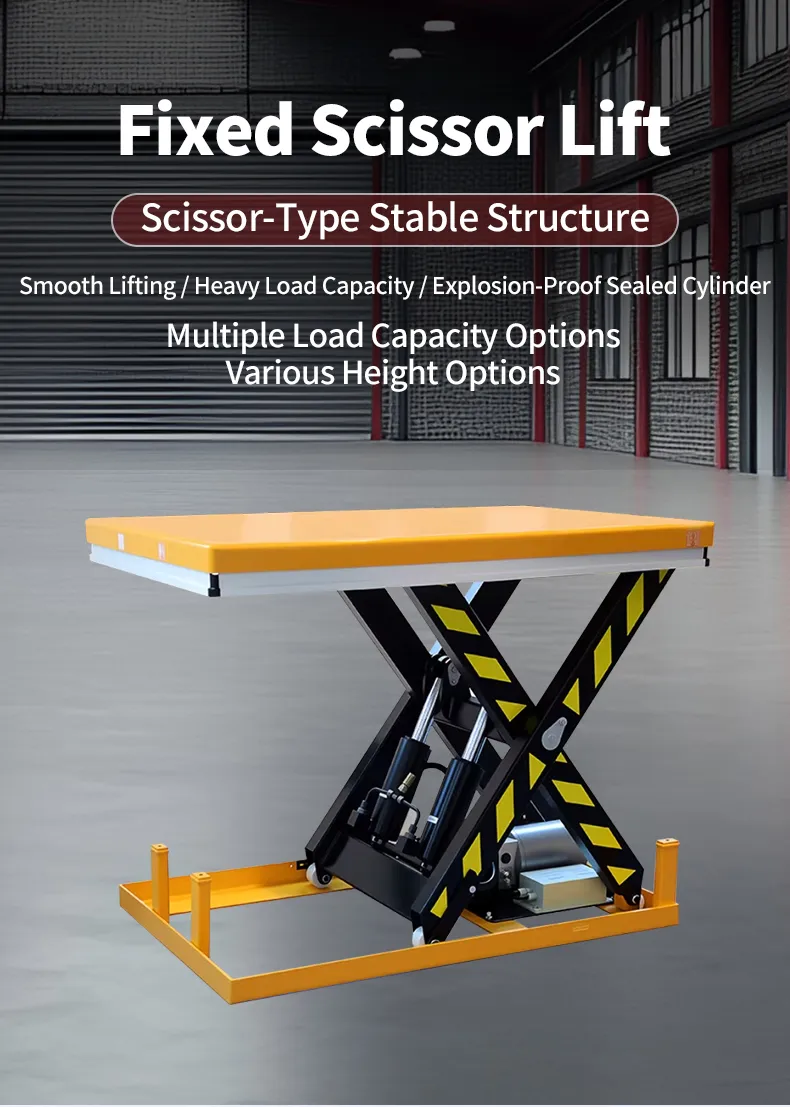

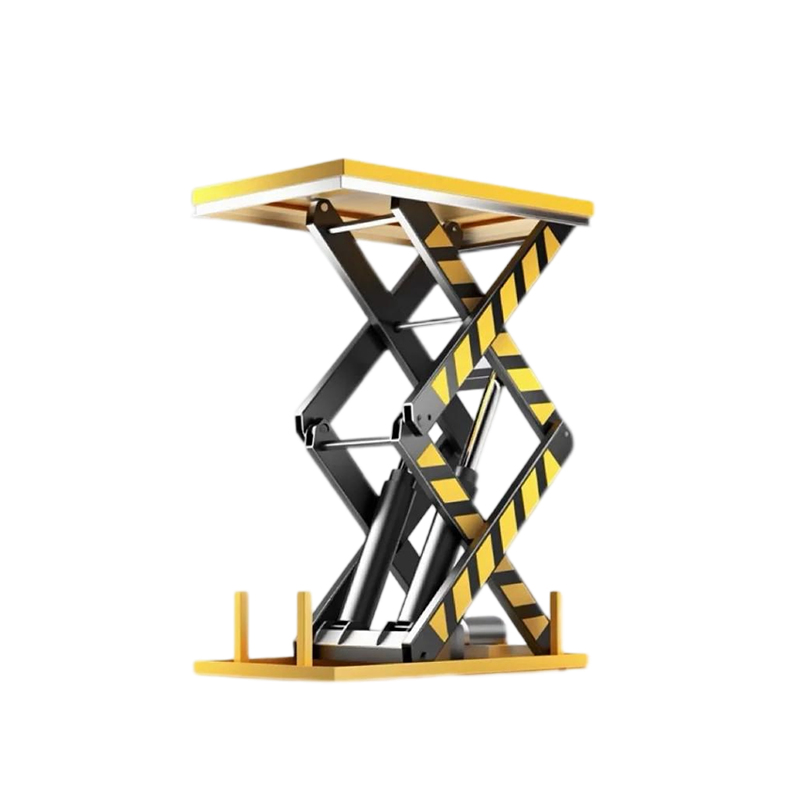

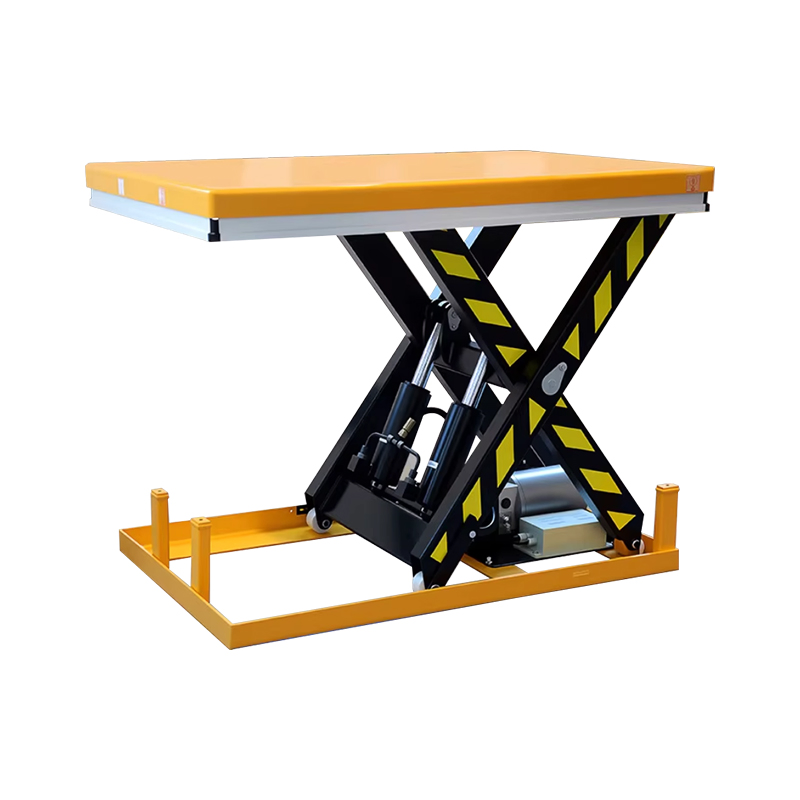

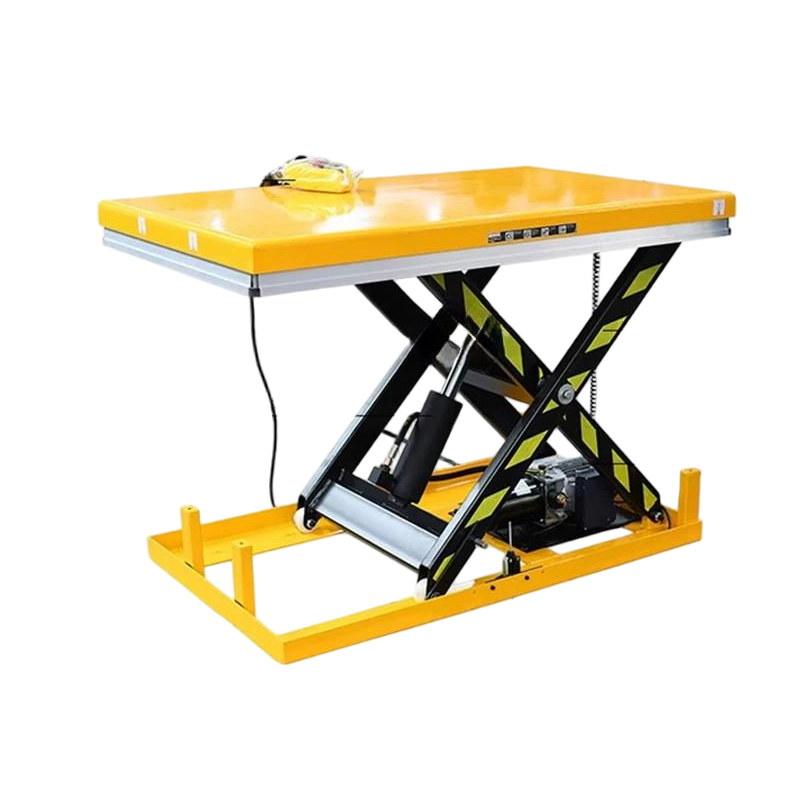

Our fixed scissor lift table is designed for stable vertical lifting of heavy goods in industrial environments. With a reinforced scissor structure and hydraulic lifting system, it delivers smooth operation, strong load-bearing capacity, and long service life.

Technical Specifications

Model	Rated load (KG)	Min./Max. Height (mm)	Platform Size (mm)	Base Size (mm)	Lifting Time (s)	Voltage (V)	Weight (KG)
ID1001	1000	205 / 1000	1300 × 850	1266 × 680	20–25	380 / 220	200
ID1006	1000	240 / 1300	2000 × 1000	1600 × 680	30–35	380 / 220	280
ID2001	2000	230 / 1000	1300 × 850	1255 × 785	20–25	380 / 220	260
ID2006	2000	250 / 1300	2000 × 1000	1630 × 785	25–35	380 / 220	360
ID4001	4000	250 / 1050	1700 × 1200	1600 × 930	30–40	380 / 220	490
ID4006	4000	300 / 1400	2200 × 1200	1980 × 930	35–40	380 / 220	580

Key Features & Advantages

⚡

Smooth & Stable Lifting Stable hydraulic lifting ensures smooth, controlled vertical movement without shaking.

🛠️

Professional Customization Load capacity, platform size, lifting height, and power supply can be fully customized to your needs.

🛡️

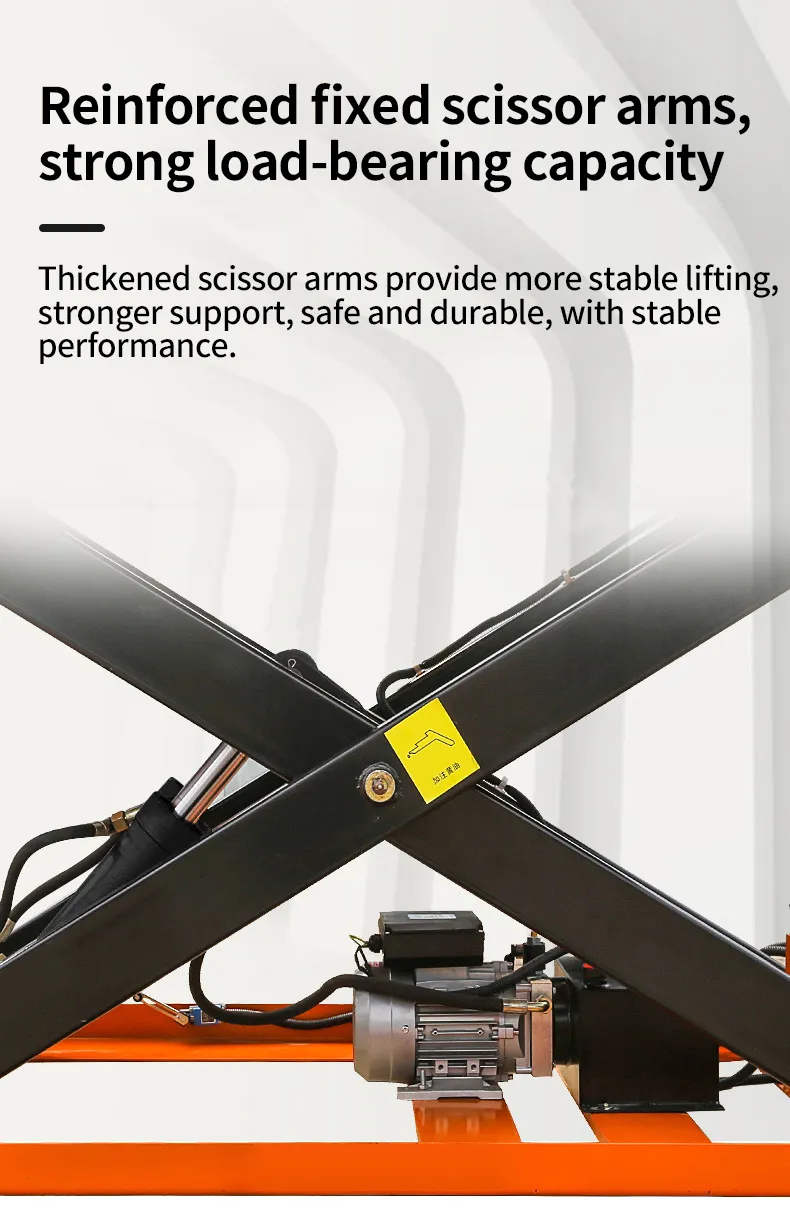

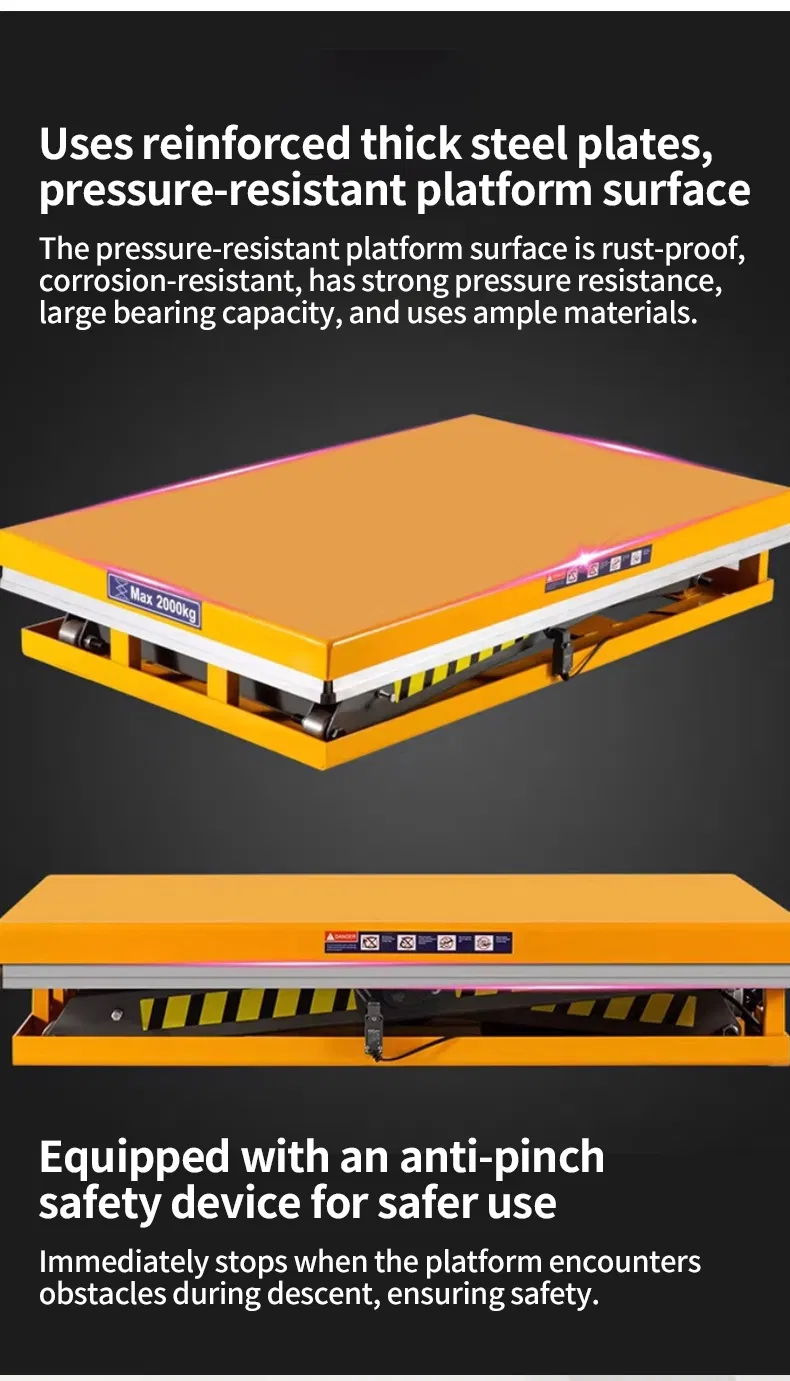

Reinforced Steel Structure High-strength steel plates and scissor arms provide exceptional bearing capacity and anti-deformation properties.

💧

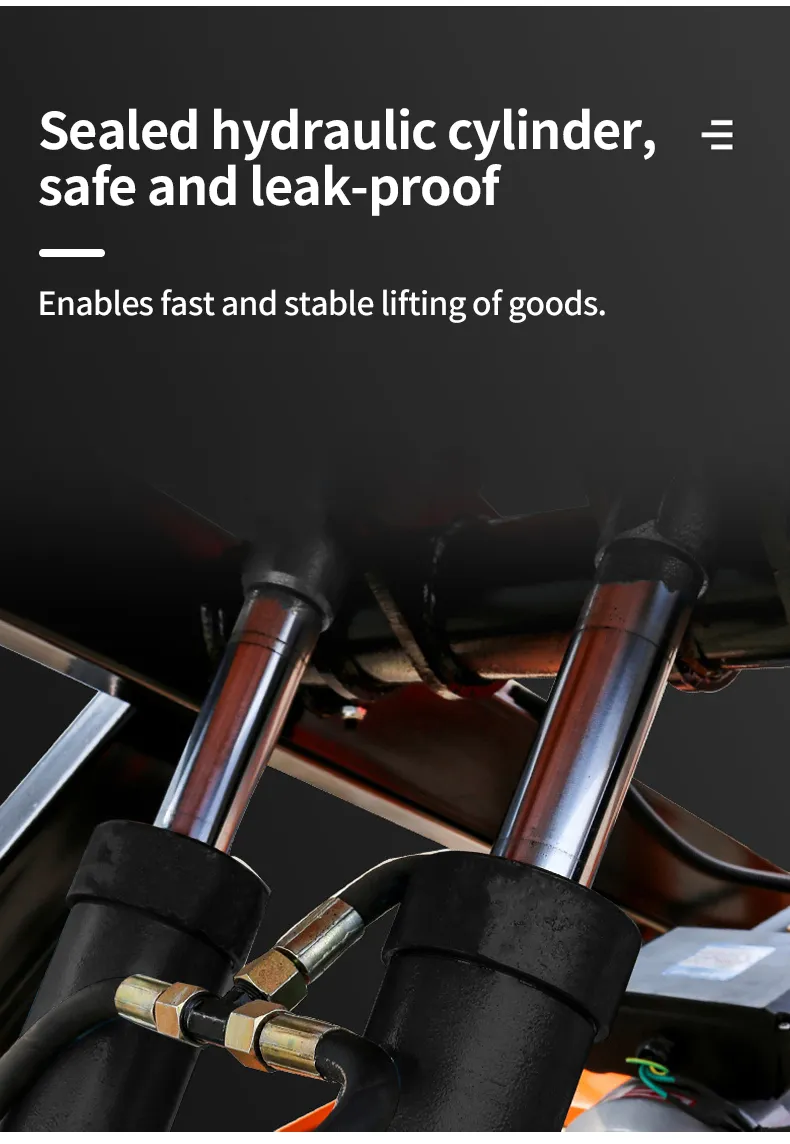

Sealed Hydraulic System High-quality sealed cylinders with overload protection and pressure relief valves ensure safe, leak-proof operation.

Product Details & Applications

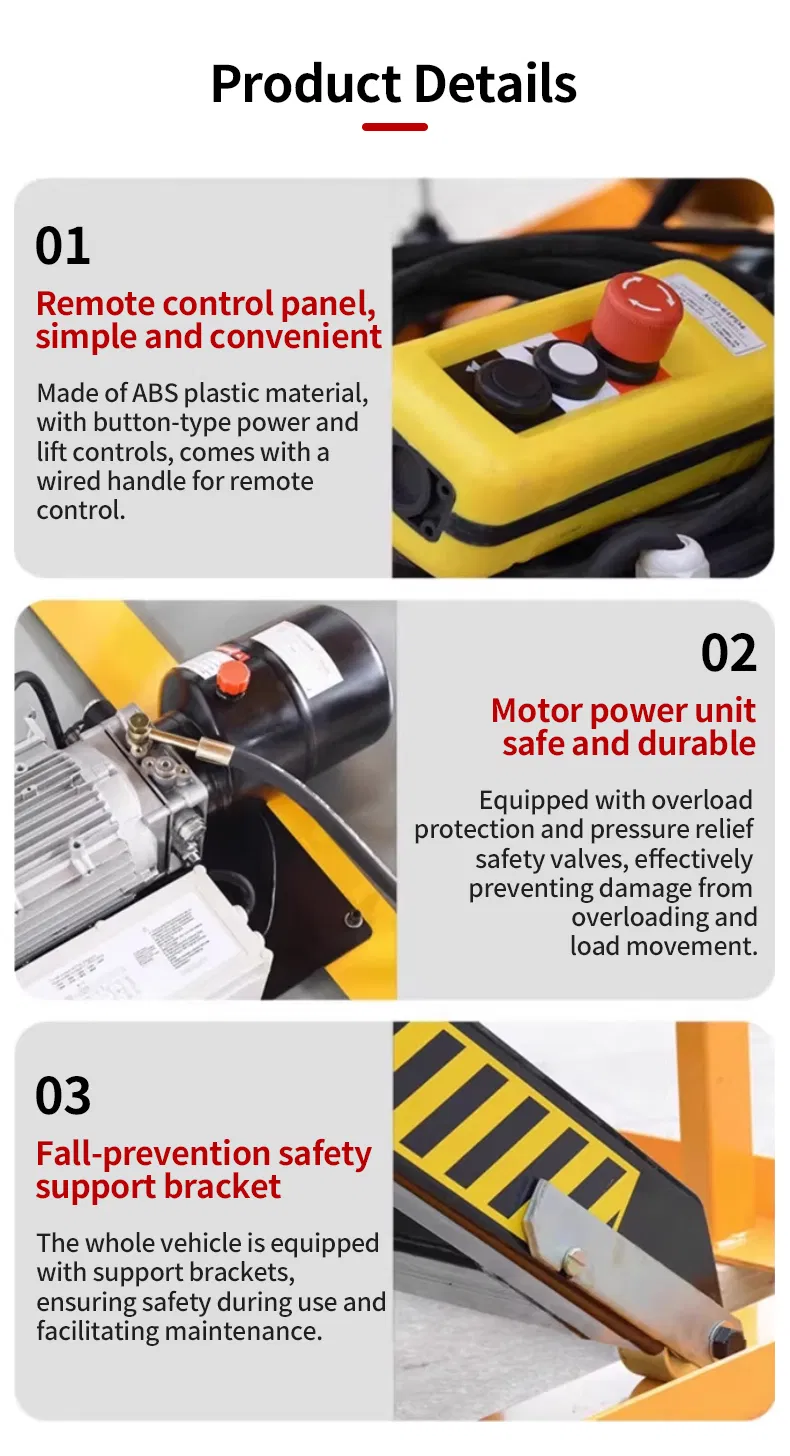

Control & Safety Systems

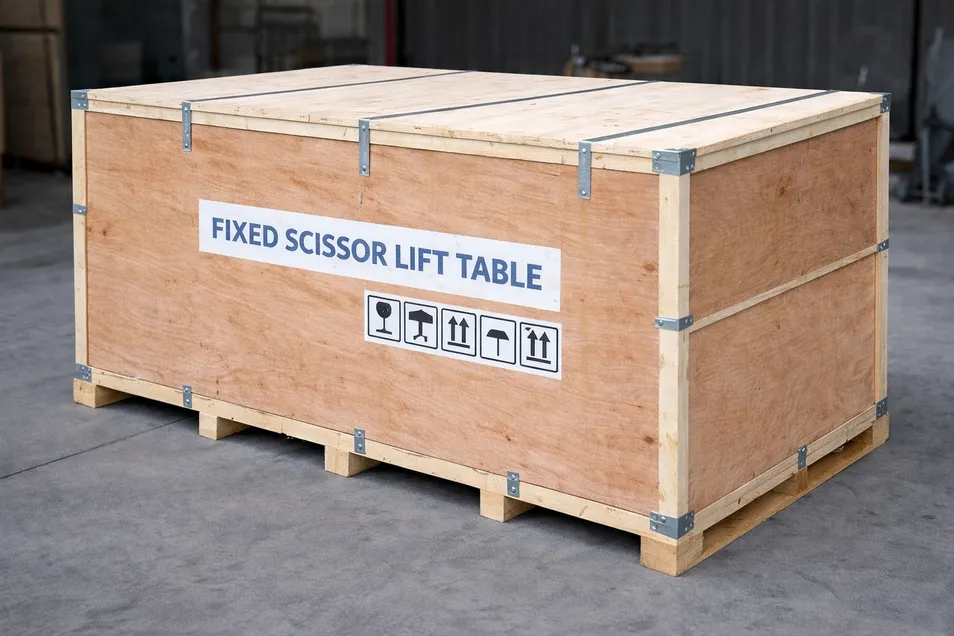

Packaging & Shipping

Safe plywood or wooden cases for long-distance sea and land transportation.

Production Capability

Frequently Asked Questions

What load capacities are available for the lift table?

Our standard models range from 1000kg to 4000kg, but we can customize the load capacity to meet specific industrial requirements.

Can the platform size and lifting height be customized?

Yes, both the platform dimensions and the maximum lifting height can be tailored to fit your workspace and production line needs.

What safety features are integrated into the system?

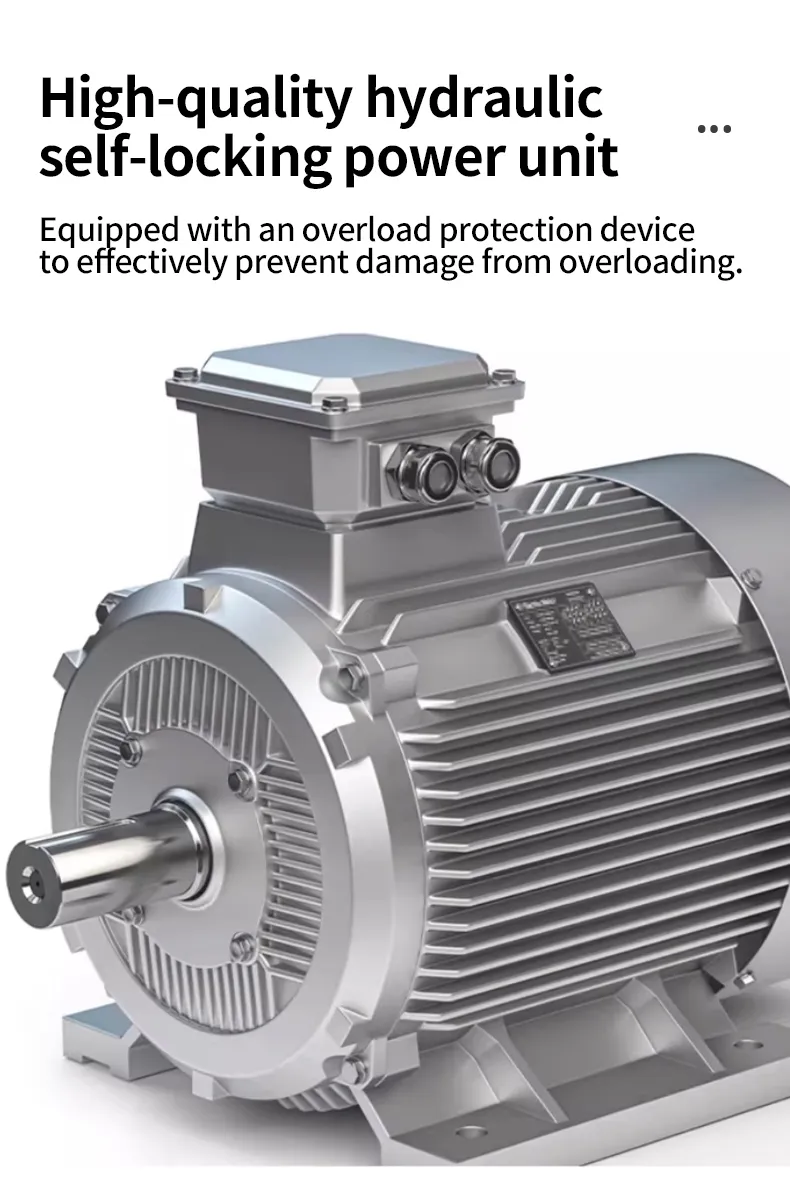

The tables include an anti-pinch safety device, emergency stop buttons, overload protection valves, and automatic self-locking hydraulic units.

What power supply does the machine require?

The standard configuration is 380V or 220V, but the power unit can be adjusted based on your local electrical standards.

How is the product packaged for international shipping?

We use professional-grade plywood or wooden cases to ensure the machine is protected from damage during sea freight or land transportation.

Is the machine treated for rust and corrosion?

Yes, the entire machine undergoes professional anti-rust treatment and is finished with a durable industrial coating for long-term use in harsh environments.
