| Model | HA14JE | Application | Workshop, Shipboard, Warehouse, Building |
| Lift Mechanism | Articulated Lift | Carrying Capacity | 230kg |
| Moves | Self-propelled | Driven Type | AC Power |
| Platform Height | 14m | Max. Working Height | 16m |
| Certifications | GS, CE, RoHS, ISO 9001 | HS Code | 8428909090 |

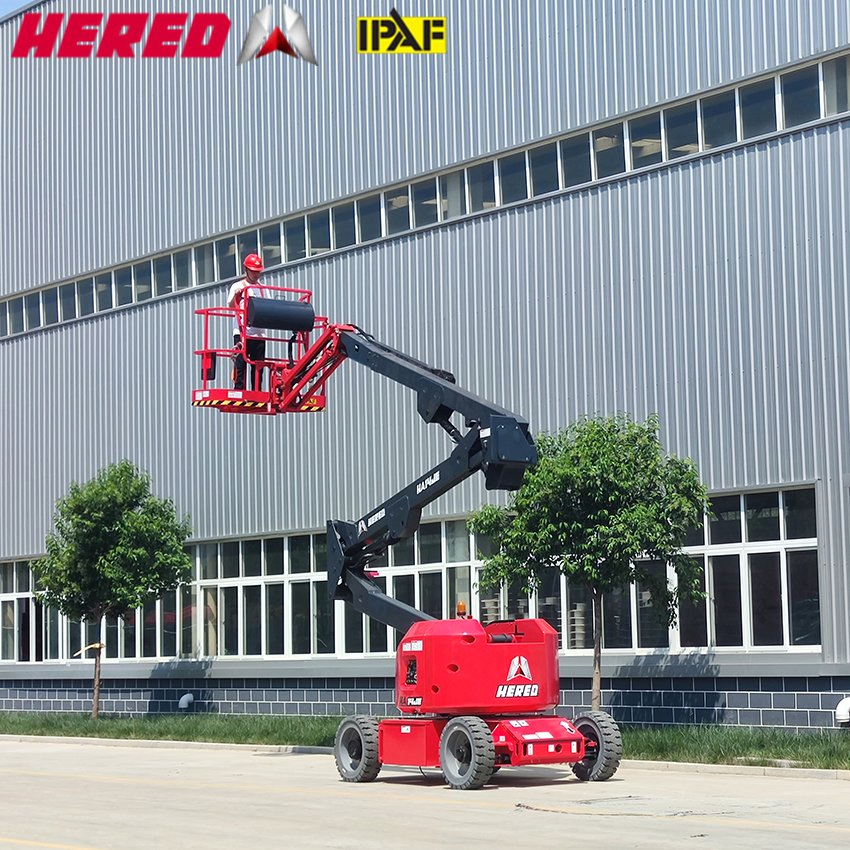

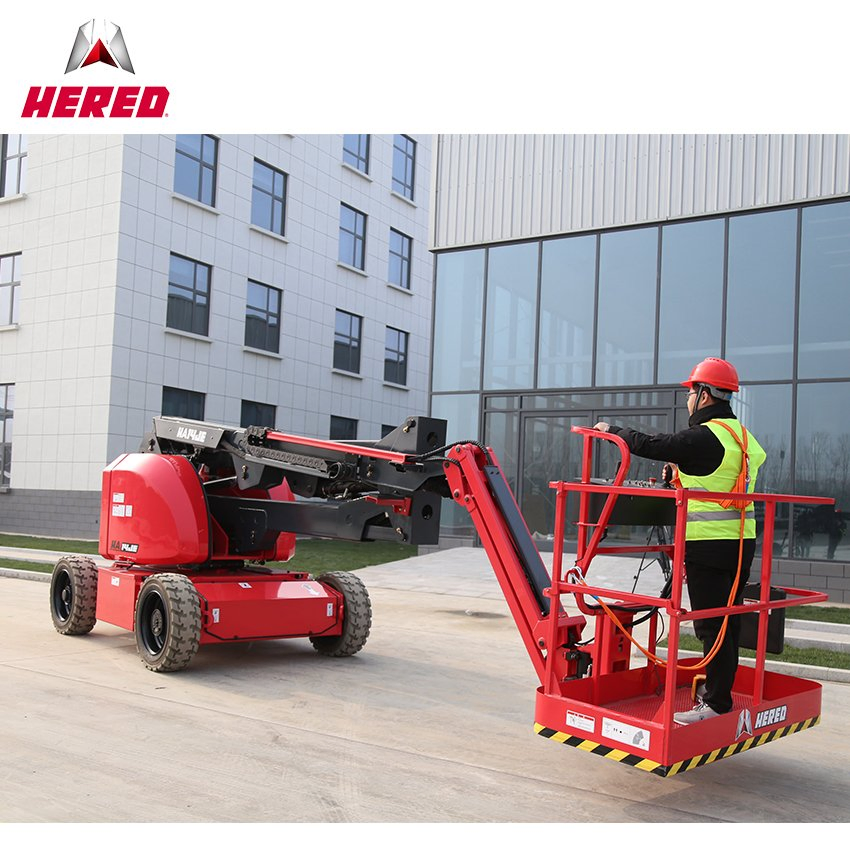

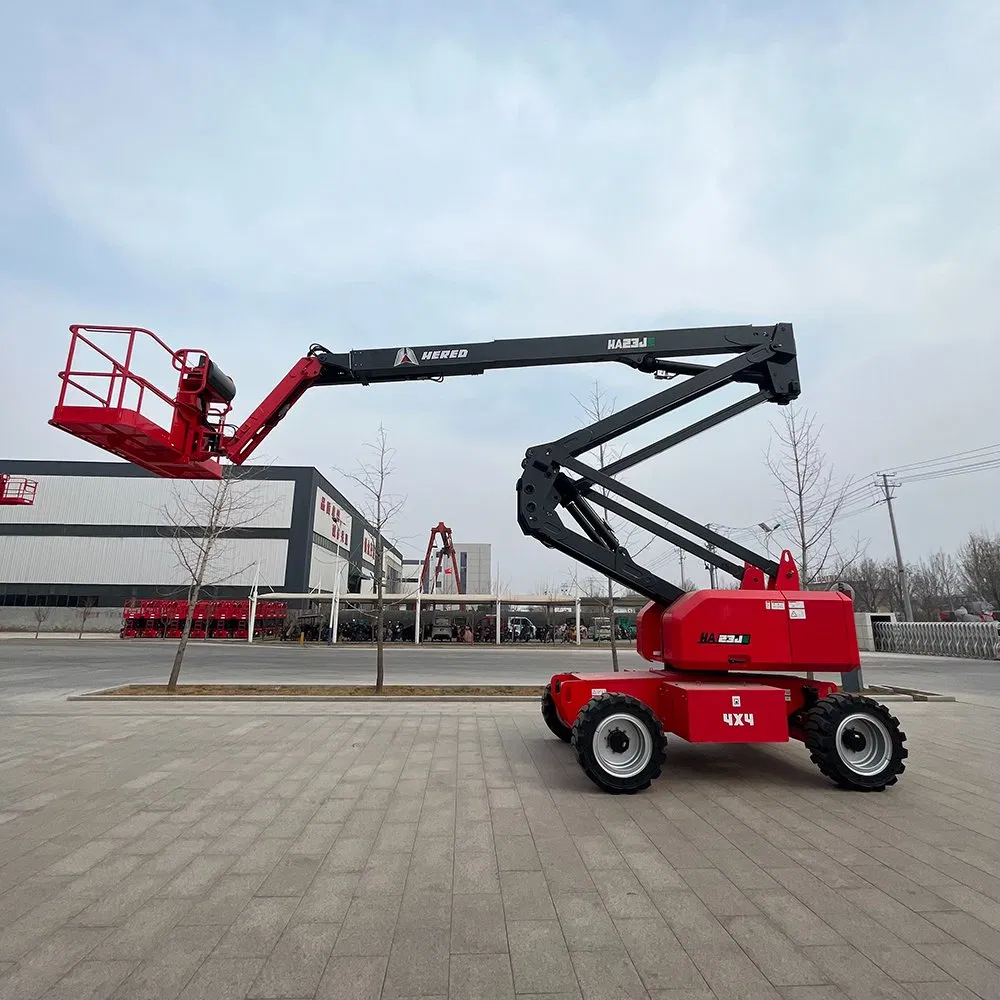

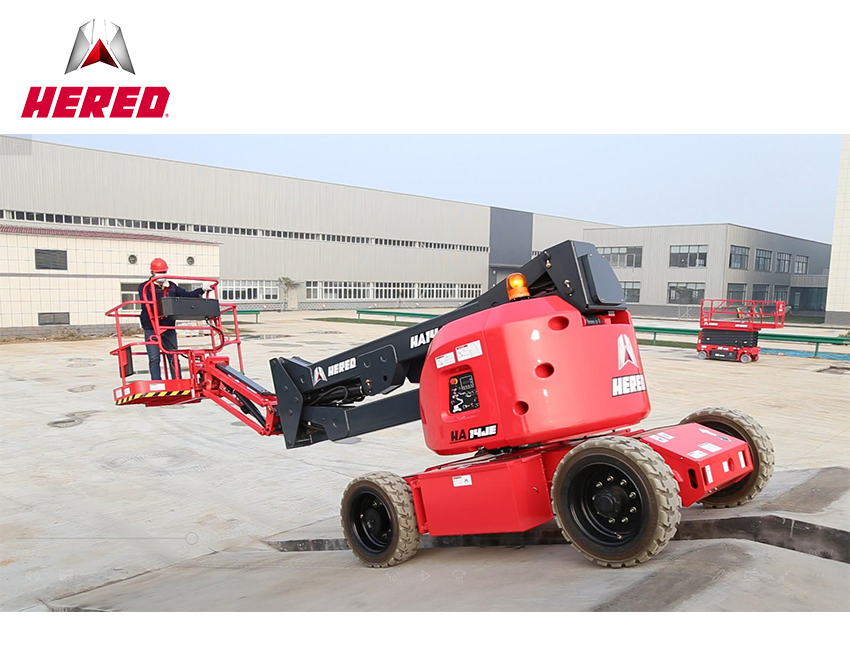

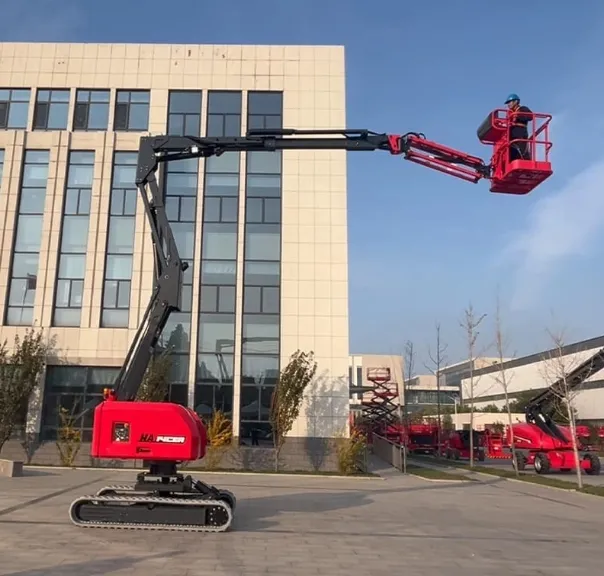

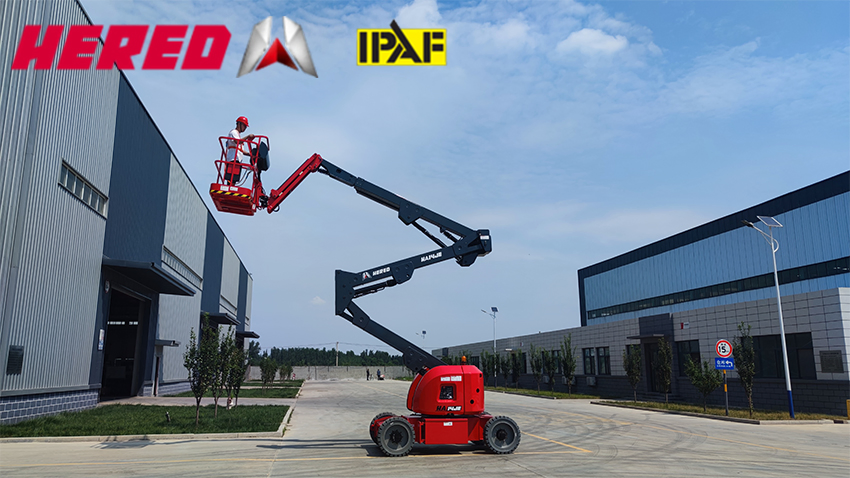

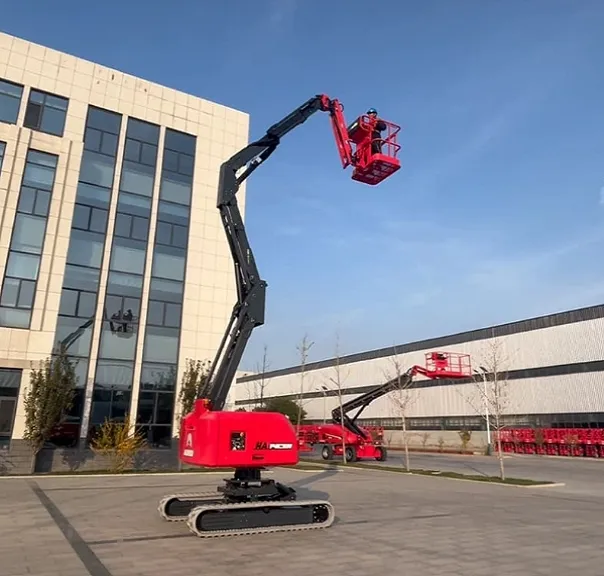

Articulating boom lifts provide extra reach over and around obstacles on the job site. Our electric articulating boom lift offers excellent outreach, high capacity, versatile performance, and easy maintenance. These lifts provide a large working range, allowing access to hard-to-reach places, especially in complex structures or tight spaces.

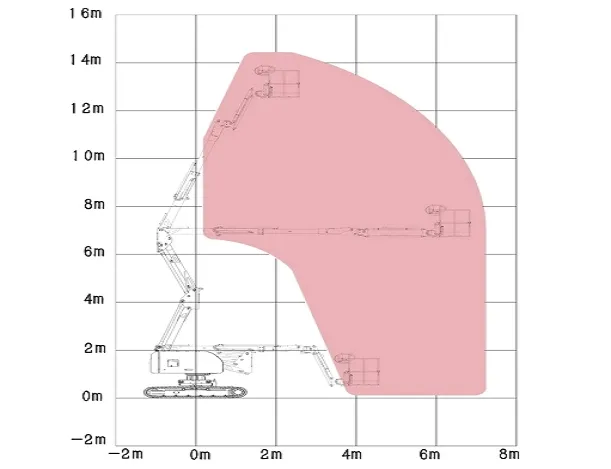

| DIMENSIONS & PERFORMANCE | |
| Max. Working Height | 16m |
| Max. Platform Height | 14m |
| Max. Horizontal Extension | 7.5m |
| Max. Up and Over Height | 7.54m |

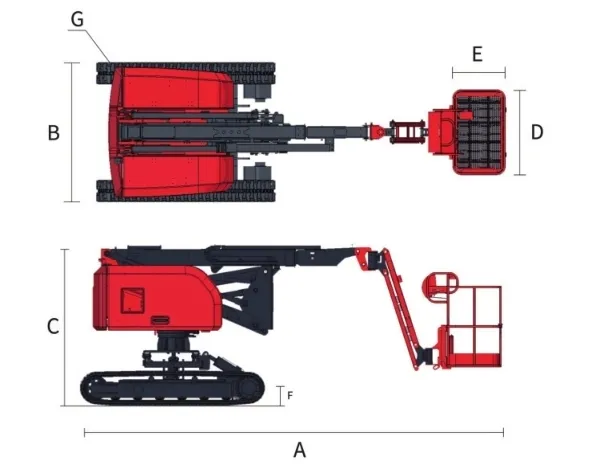

| Stowed Size (L*W*H) | 6.4m * 1.75m * 1.93m |
| Platform Capacity | 230kg |
| Gradeability | 30% |
| Turntable Rotation | 355° |
| POWER & WEIGHT | |
| Batteries (V/Ah) | 48V/310Ah Lithium |
| Tires | 705X210X445 |
| Machine Weight | 7070kg |
Suitable for various environments including indoor facilities, outdoor construction, flat terrain, and rugged jobsites. Provides high-efficiency aerial work solutions where traditional scaffolding is impractical.

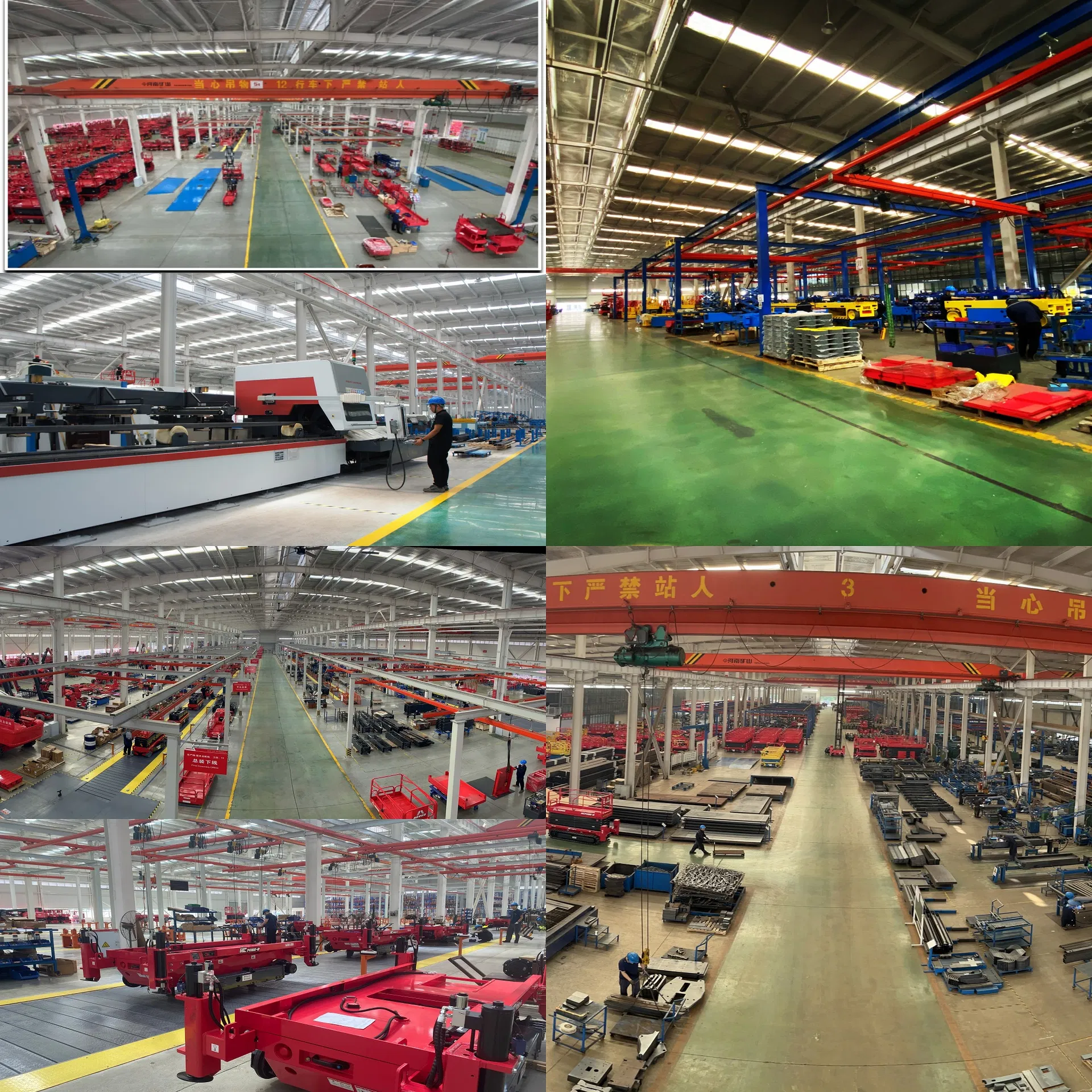

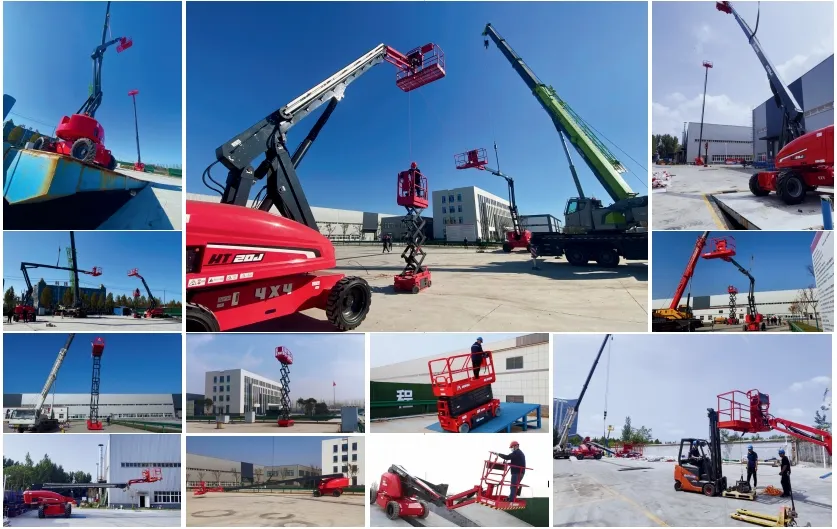

Our manufacturing facility utilizes intelligent technology for the production of aerial work platforms. Products undergo rigorous testing including 100,000 fatigue tests, climbing ability tests, pothole protection, and rollover safety evaluations to ensure maximum reliability.
