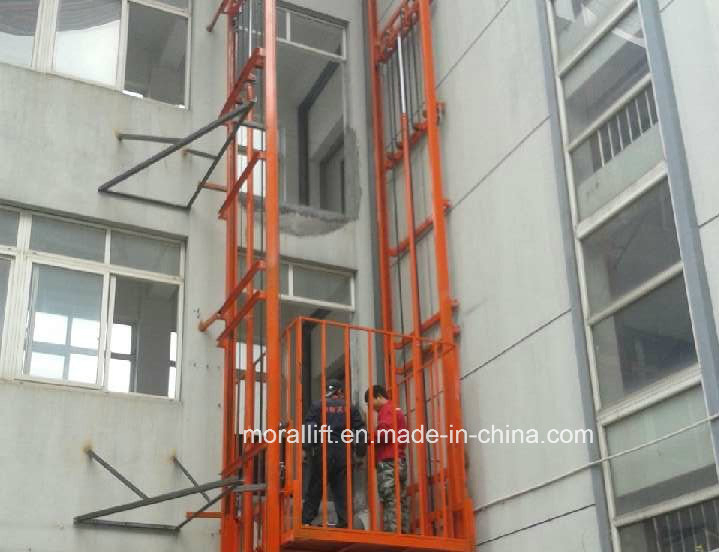

Hydraulic Cargo Vertical Lift/Freight Platform
Hydraulic Cargo Vertical Lift/Freight Platform
Hydraulic Cargo Vertical Lift/Freight Platform
Hydraulic Cargo Vertical Lift/Freight Platform
Hydraulic Cargo Vertical Lift/Freight Platform
1 / 5
Hydraulic Cargo Vertical Lift/Freight Platform
Hydraulic Cargo Vertical Lift/Freight Platform
Hydraulic Cargo Vertical Lift/Freight Platform
Hydraulic Cargo Vertical Lift/Freight Platform
Hydraulic Cargo Vertical Lift/Freight Platform

Hydraulic Cargo Vertical Lift/Freight Platform

Customization: Available
Lift Mechanism: Lift Chain
Carrying Capacity: Middle-Level
Send Inquiry

Product Description

Basic Specifications

Model NO.
SJD
Moves
Stationary
Driven Type
Hydraulic
Certification
CE, ISO 9001
Load Capacity
500kg
Lifting Height
6000mm
Platform Size
1500*1200mm
Power
4kw
Speed
5-6m/Min
Origin
China

Hydraulic Cargo Vertical Lift / Freight Platform

Chain-driven lifting system specifically designed for goods transport.
Hydraulic driven mechanism ensures steady upward and downward movement.
Explosion-proof features and low closed height, eliminating the need for pit installation.
Customized systems available for automated manufacturing and warehousing (100kg to 100,000kg).

This machine provides fast, efficient, convenient, and safe access to or from mezzanines, balconies, basements, and between levels in multiple-story buildings. It can be installed for through-floor, interior, or exterior applications. The principle components include guide columns, carriage, and a mechanical or hydraulic actuating mechanism.

Technical Data

ModelSJD
Load capacity500--1000KG / Customize
Platform size1500*1200MM
Lifting height10000MM / Customize
Speed100mm/s
Power3kw
Power supplyAC 220V/380V 50HZ/60HZ Customize
Weight800KG

Product Detailed Display

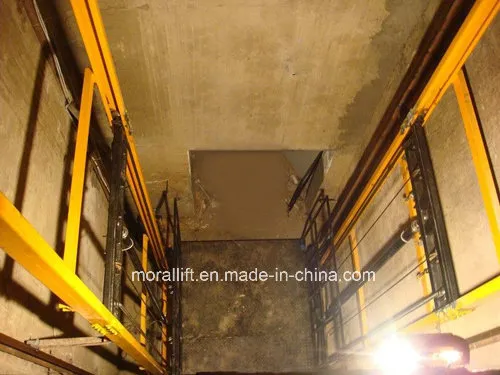

Hydraulic Cargo Vertical Lift

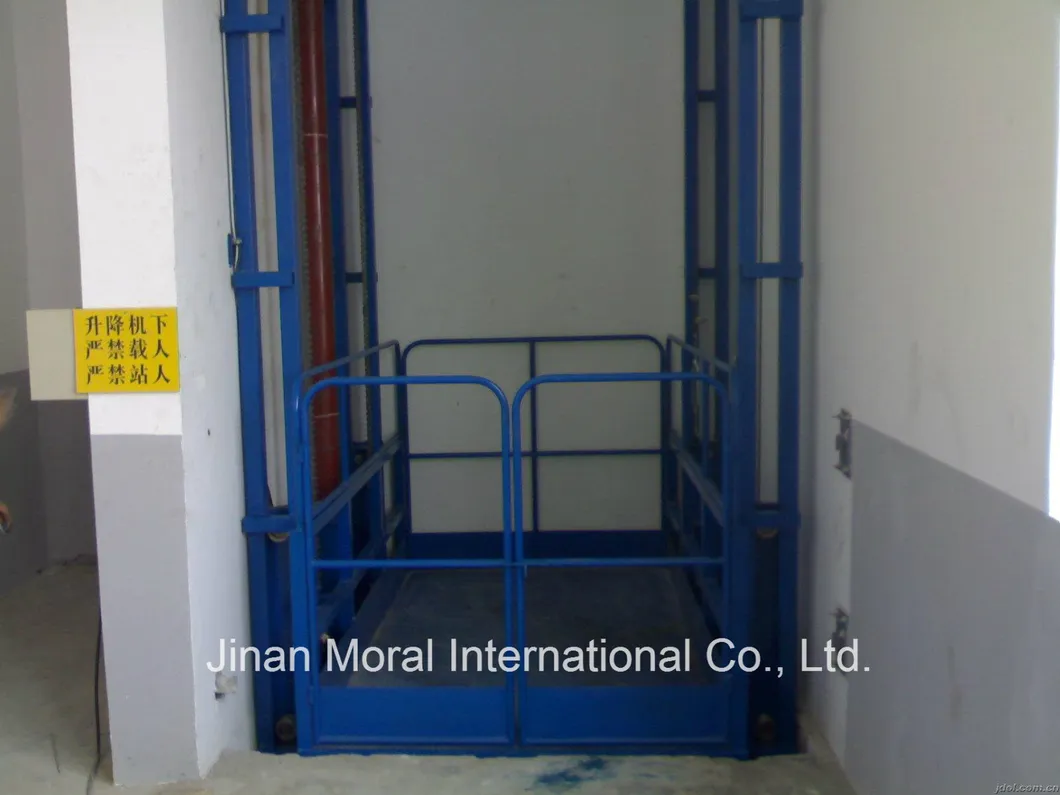

Freight Platform

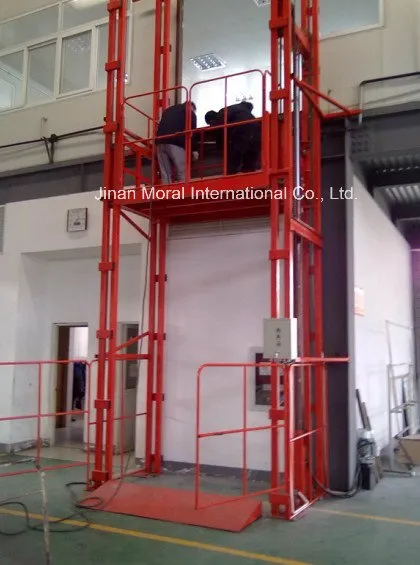

Hydraulic Lift Detail

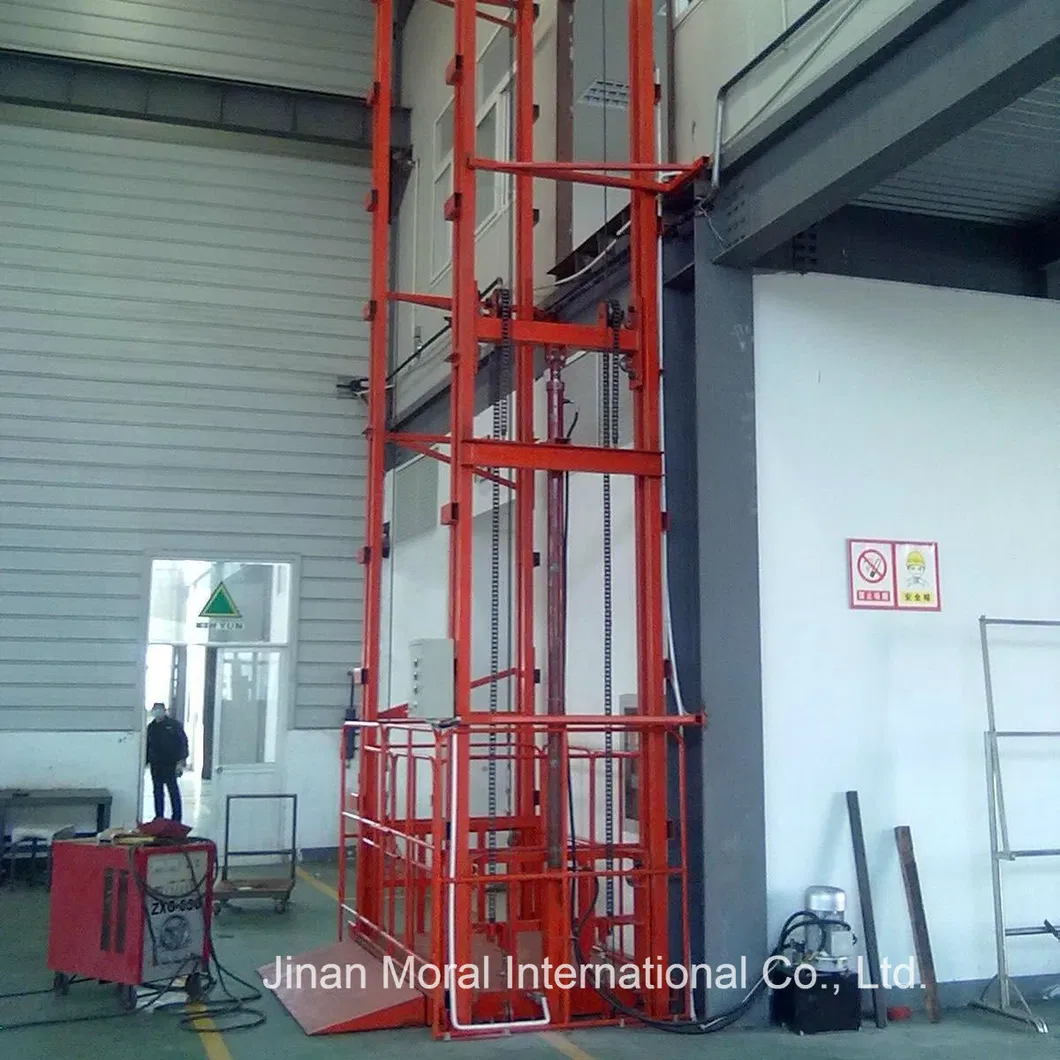

Vertical Cargo Lift

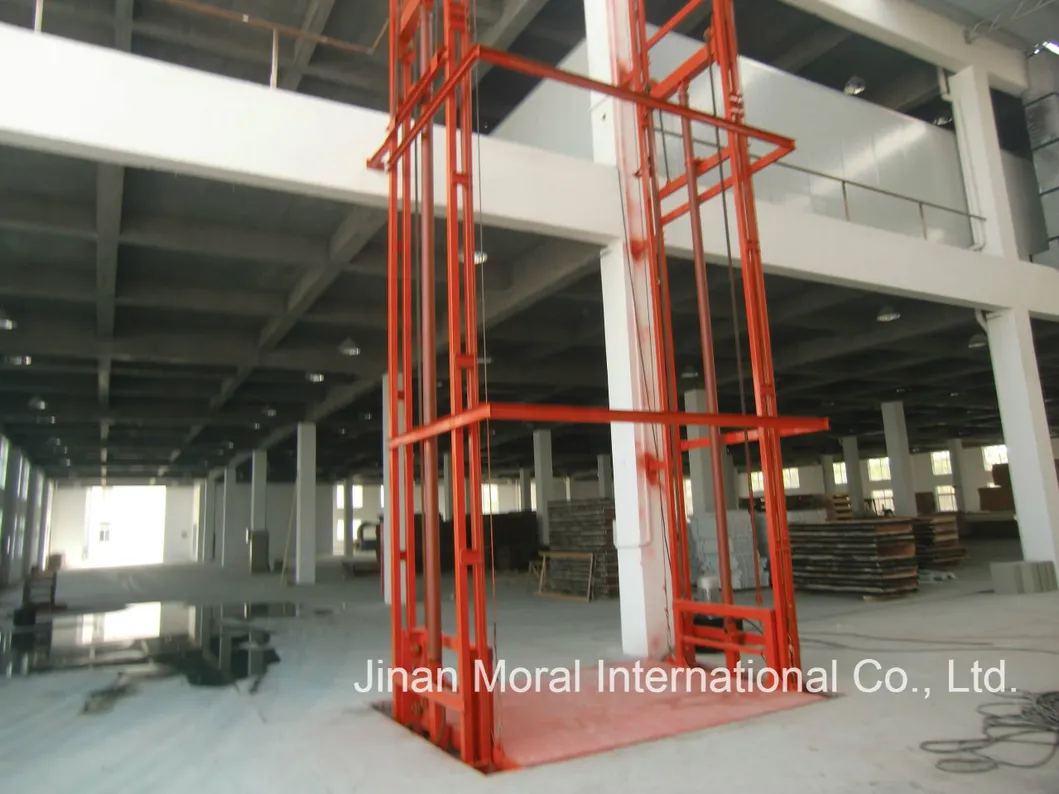

Installation View

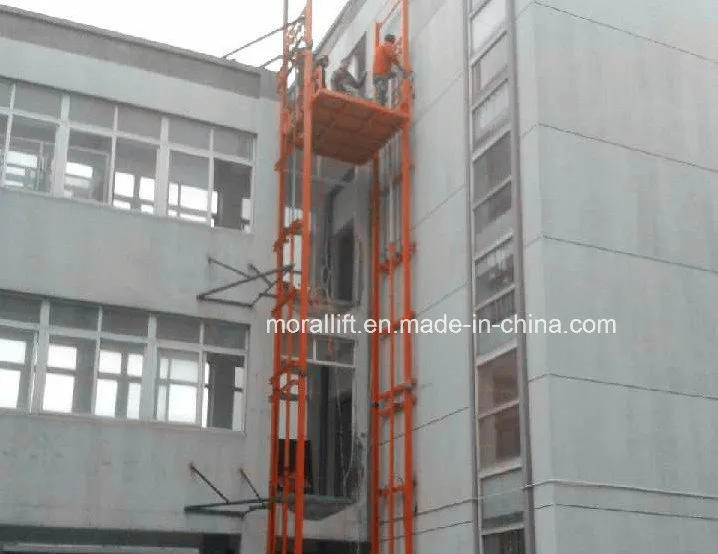

Hydraulic Mechanism

Technical Support & Service

24/7 Support: Technical assistance via digital channels around the clock.
Manuals & Videos: User-friendly English manuals and operation videos provided.
Overseas Service: Engineers available to service machinery overseas if required.
Warranty: 12 months guarantee with free spare parts and lifetime technical support.

Frequently Asked Questions

Is this hydraulic cargo lift easy to operate?
Yes, it is very easy to operate. We provide comprehensive English manuals and instructional videos that demonstrate step-by-step how to use the machine effectively.
What happens if the machine encounters a problem after receipt?
During the warranty period, we will send you free replacement parts if the machine has any functional issues. We also provide lifetime technical guidance.
What is the Minimum Order Quantity (MOQ)?
The minimum order is 1 set. For bulk orders, we can offer more competitive pricing structures.
Can the platform size and lift height be customized?
Absolutely. We offer customized systems tailored to your specific manufacturing or warehousing needs, with capacities ranging from 100kg up to 100,000kg.
Does the lift require a deep pit for installation?
No, the closed height of this lifting platform is very low, which usually eliminates the need for a traditional pit installation, making it easier to deploy in existing buildings.
What certifications does this product hold?
All our machines are manufactured to high standards and come with CE, ISO, and BV certifications to ensure safety and quality compliance.
