Lift Mechanism
Scissor Lift
Carrying Capacity
Weight Level
Feature
Explosion-Proof, Insulating, Emergency Stop
Certification
GS, CE, RoHS, ISO 9001
Lifting Height
205~4140mm or Customized
Load Capacity
500~4000kg or Customized
Platform Size
1600*1000mm or Customized
Customized Service
Platform Size, Load Capacity, Lifting Height
Emergency Decline Valve
Yes
Platform Materials
Steel or Aluminum or Stainless Steel
Usage
Factory, Workshop, Home Garage
Electric Lifting Equipment Hydraulic Scissor Lift Table
OEM & ODM Service Available

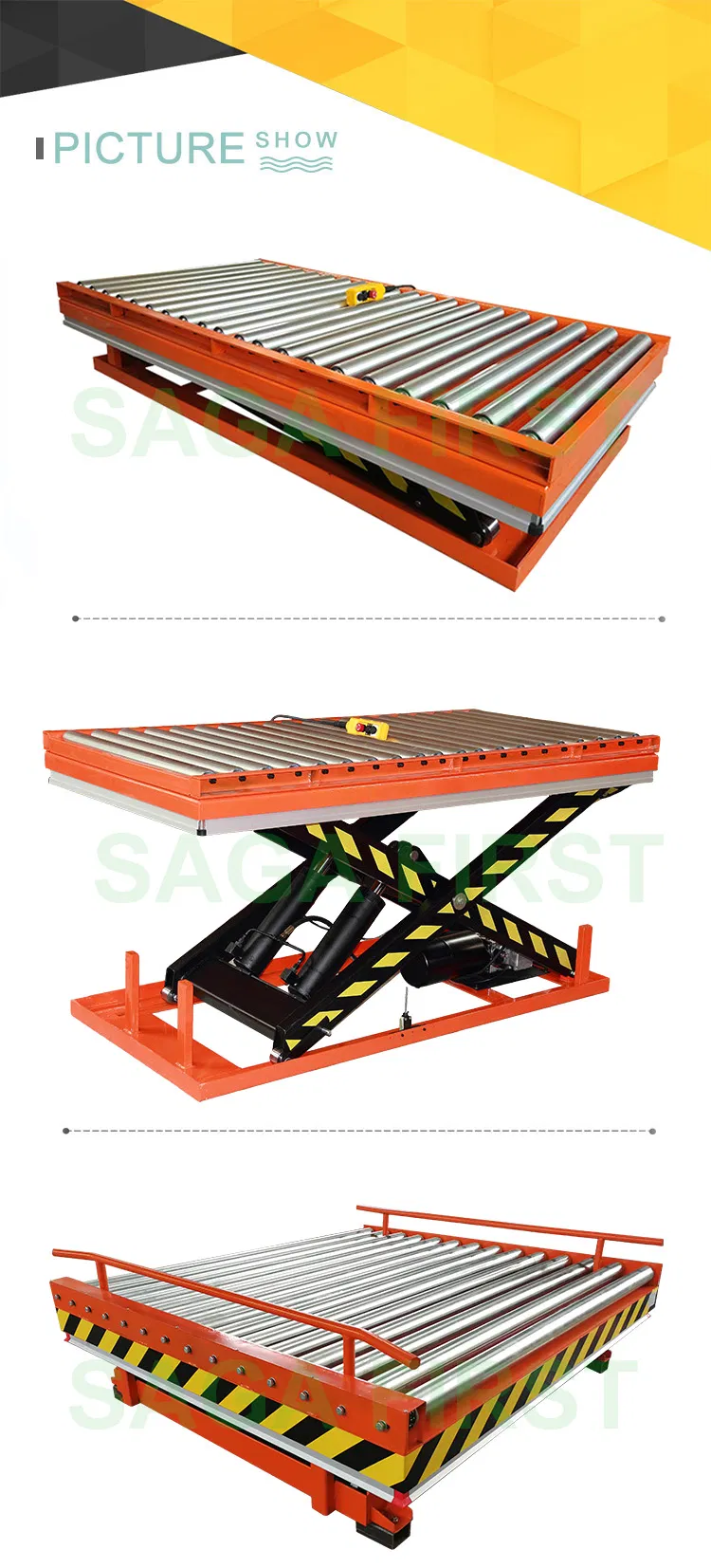

Roller Scissor Lift Tables are equipped with hot galvanizing rollers so that the cargo can be moved easily on the platform. The lifts are up to American standard ANSI/ASME and Europe standard EN1570. Standard model types load capacity are from 1000kg to 4000kg. Lifting height from 205mm to 4140mm. Required platform size, load capacity and lifting height can be customized.

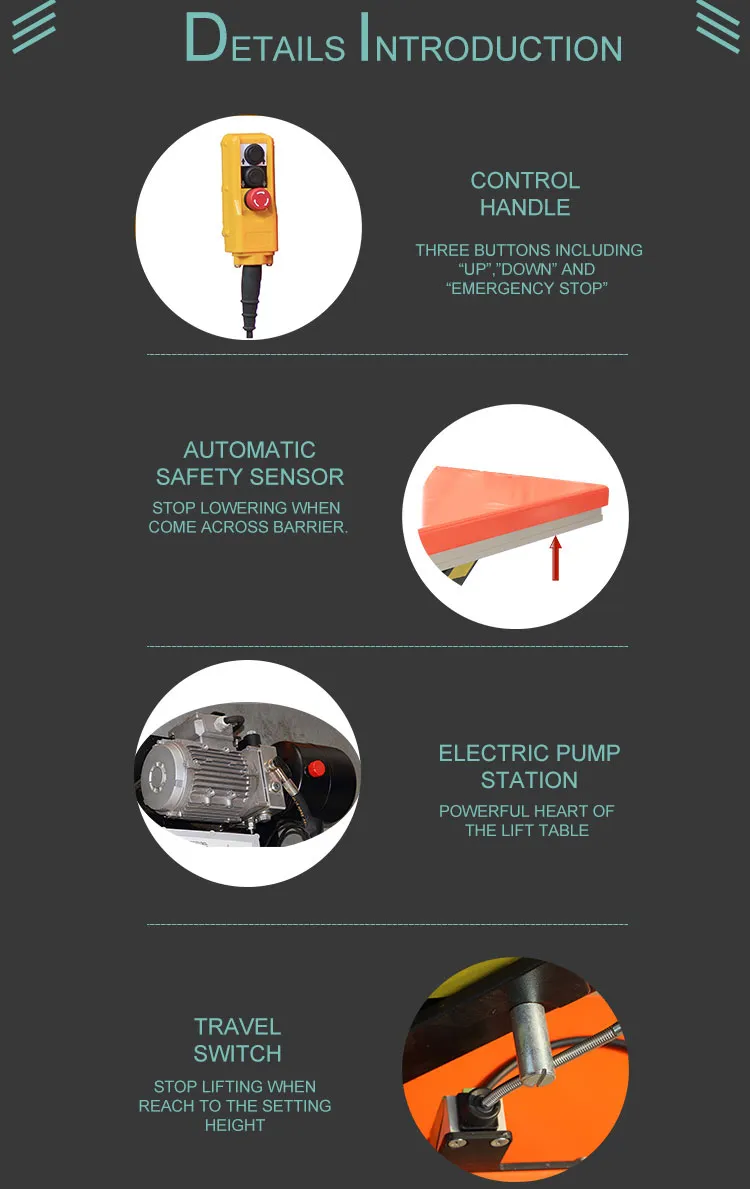

- ✔ Explosion-proof valves
- ✔ Spillover valve
- ✔ Emergency decline valve
- ✔ Overload protection locking device
- ✔ Automatic Safety sensor: stop when come across barriers
| Model |
Load Capacity (KG) |
Self Height (MM) |
Max Platform Height (MM) |
Platform Size (MM) |
Lifting time (S) |
Voltage (V) |
Net weight (KG) |
| RS1001 | 1000 | 205 | 1000 | 1300×820 | 20~25 | 1phase or 3phase customized | 160 |
| RS1002 | 1000 | 205 | 1000 | 1600×1000 | 20~25 | 186 |
| RS1003 | 1000 | 240 | 1300 | 1700×850 | 30~35 | 200 |
| RS2001 | 2000 | 230 | 1000 | 1300×850 | 20~25 | 235 |
| RS2002 | 2000 | 230 | 1050 | 1600×1000 | 20~25 | 268 |
| RS4001 | 4000 | 240 | 1050 | 1700×1200 | 30~40 | 375 |
- 1. Shot blasting and stoving varnish, high anti-corrosion function.
- 2. High quality pump station for stable lifting and falling.
- 3. Anti-pinch scissor design with self-lubricating pin-rolls.
- 4. Removable lifting eye for easy installation.
- 5. Heavy duty cylinders with drainage system and check valve.
- 6. Pressure relief valve and flow control valve for speed adjustment.
- 7. Brief structure for easy operation and maintenance.
- 8. Up to American standard ANSI/ASME and Europe standard EN1570.
- ● Customized design as per requirement.
- ● Professional model recommendation.
- ● Shipment arrangement to destination port.
- ● Operation videos and technical guidance.
- ● 24-month quality guarantee with free parts.
Frequently Asked Questions
Q1: What is the load capacity and lifting height of these tables?
The standard load capacity ranges from 500kg to 4000kg, with lifting heights from 205mm to 4140mm. Both can be customized to meet specific requirements.
Q2: How is the product quality guaranteed?
We offer a 24-month quality warranty. During this period, if any parts break down, we send replacement parts free of charge.
Q3: Can the platform size be customized for specific cargo?
Yes, OEM & ODM services are provided. We can customize the platform size, lifting capacity, and even the color or logo according to your needs.
Q4: What safety features are included in the hydraulic scissor lift?
The lift includes explosion-proof valves, spillover valves, emergency decline valves, overload protection, and automatic safety sensors that stop the platform if barriers are encountered.
Q5: Is it difficult to maintain the equipment?
No, the equipment features a brief and robust structure, making it very easy to operate and maintain. We also provide maintenance manuals and video guidance.
Q6: What are the primary applications for this lift table?
It is mainly used in workshops, warehouses, and factories for material handling. It is also suitable for parking lots, showrooms, and building roof maintenance.
