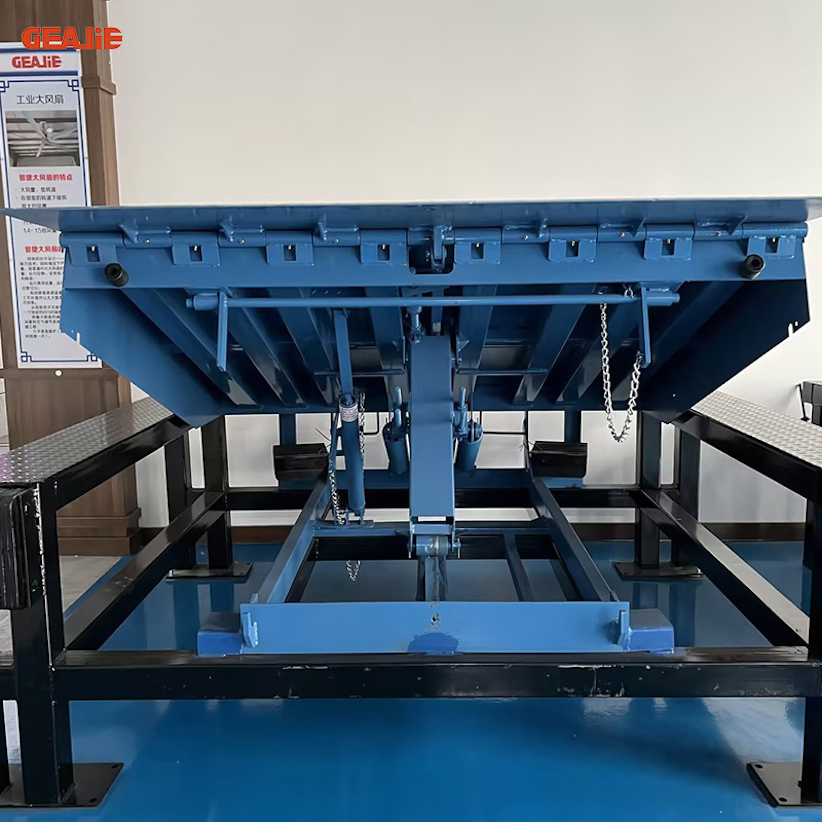

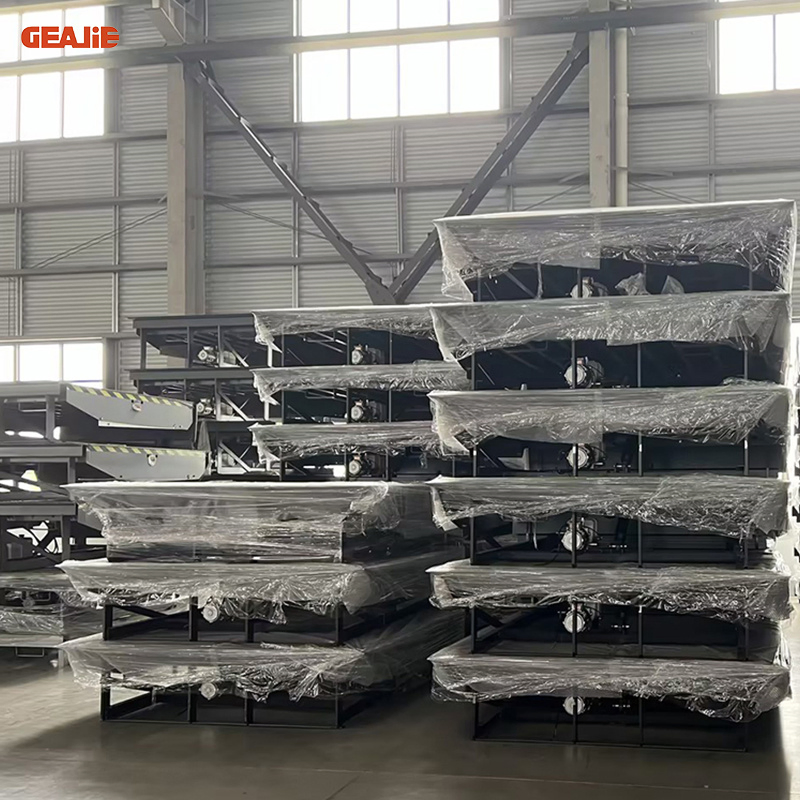

Hydraulic Truck Ramp Dock Leveller 6 Ton to 20 Ton Capacity Boarding Bridge and Container Platform for Loading Unloading

Customization: Available
After-sales Service: Available
Warranty: 1 Year

Product Description

● BASIC INFORMATION
Application
Warehouse Crane, Charge and Discharge
Lift Mechanism
Articulated Lift
Carrying Capacity
Weight Level (10000kg)
Driven Type
Hydraulic
Feature
Explosion-Proof, Insulating
Certification
CE, RoHS, ISO 9001, AAA
Type
Work Platform
Power Supply
380V/0.75kw
Hydraulic Unit
Swiss Bucher Hydraulic System
Working Range
-300 to +350mm
Lip Plate
Standard 400mm / 500mm Optional
Origin
China
● PRODUCT DESCRIPTION
Hydraulic Dock Leveller

Electric Hydraulic Dock Leveller

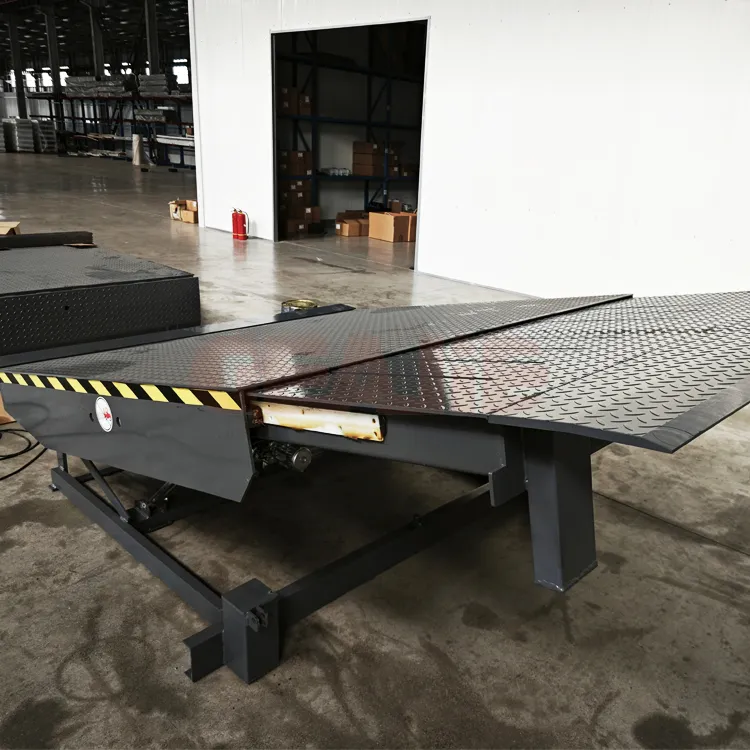

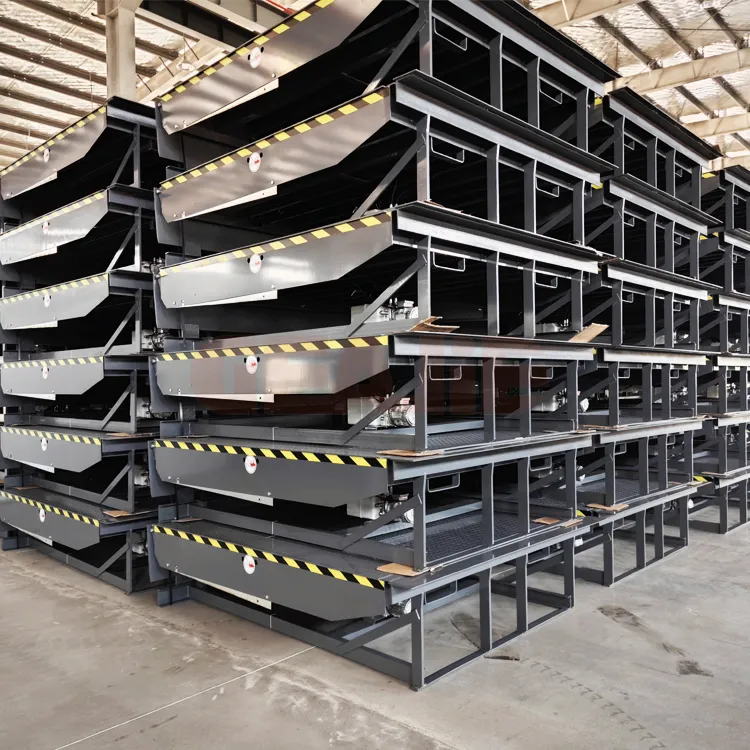

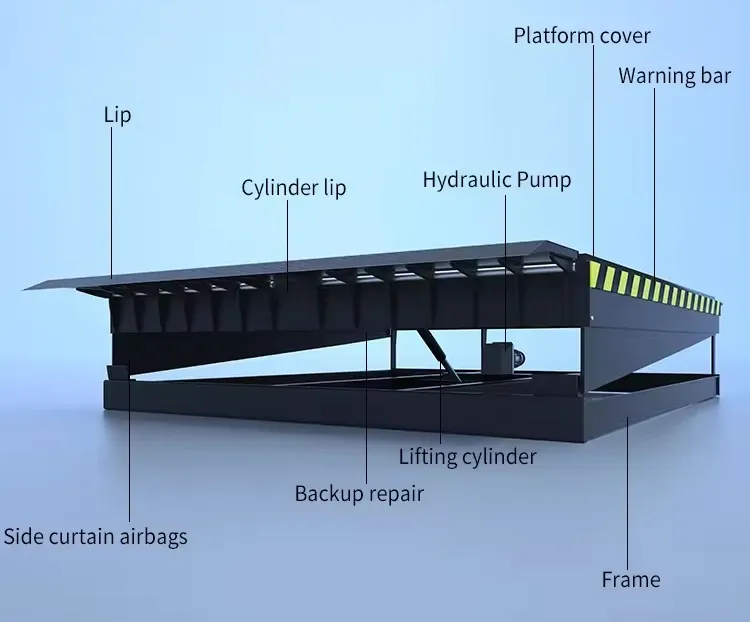

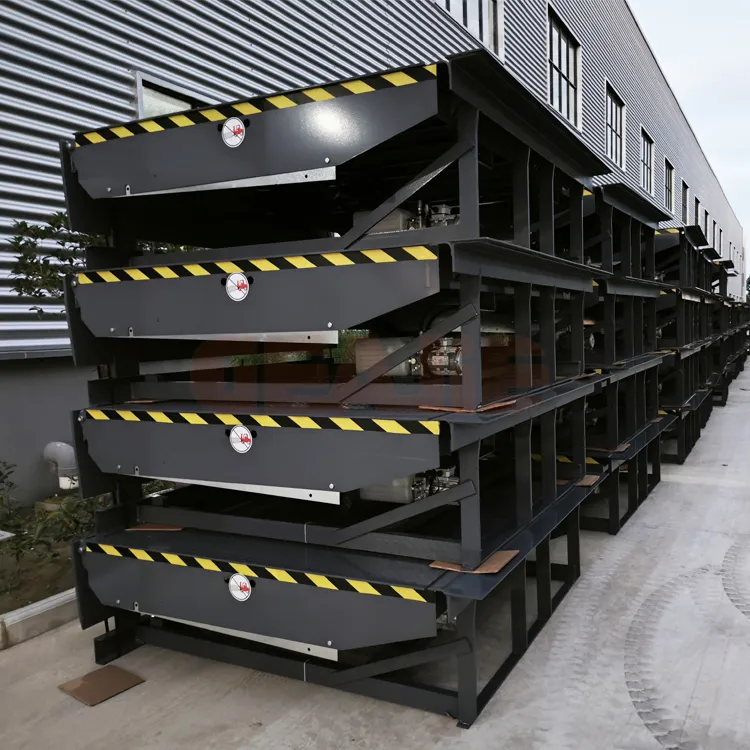

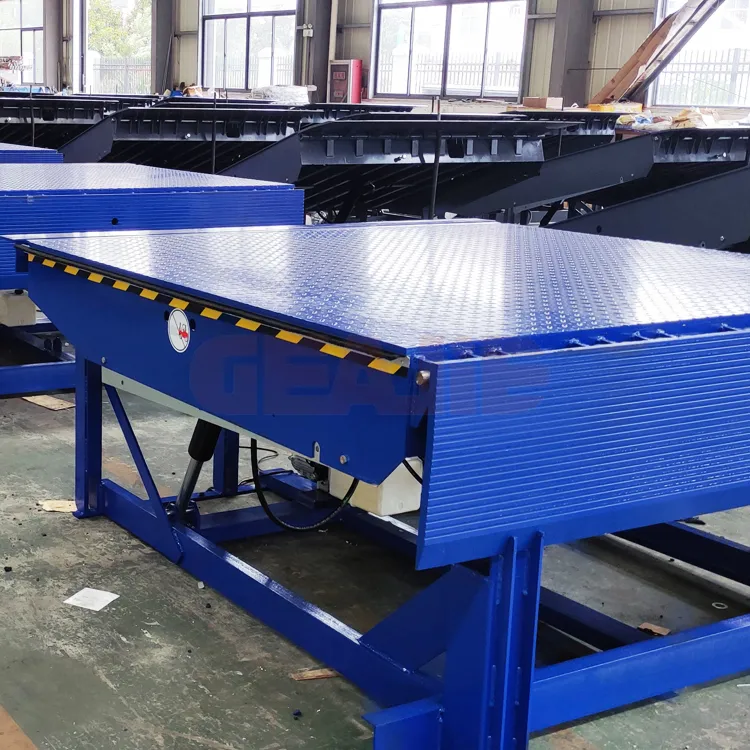

Product Show
Material Description
Application EnvironmentLogistics unloading port
Load Capacity6-25 tons
Standard Width1830mm, 2000mm, 2130mm
Countertop Structure8mm high-strength anti-skid pattern steel plate with reinforced bottom.
Lip Thickness14mm, 16mm, or 20mm according to capacity
Security ConfigurationPlatform anti-fall function, anti-pinch safety protection, maintenance support rod, night self-locking
● STRUCTURAL DRAWING & COMPONENTS

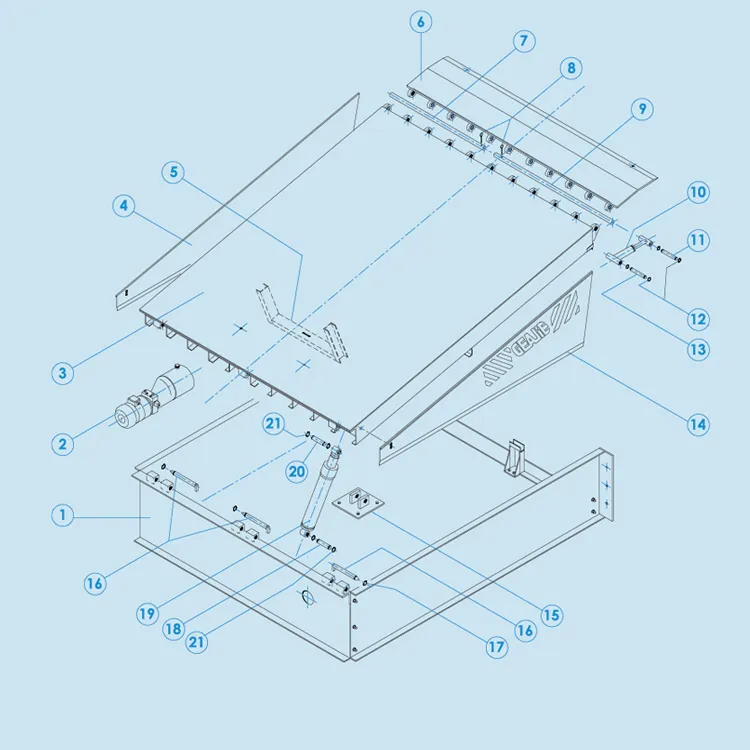

Structural Drawing
1. Mould 12. Seeger straight pins of the lip
2. Hydraulic control unit 13. Straight Pin body of the body
3. Upper plate 16. Upper plate rotation pivot
6. Swinging lip 19. Upper plate cylinder
● PRODUCT ADVANTAGES
  • Various Types: Available in hydraulic, pneumatic, and mechanical types to meet specific requirements.
  • Durable Material: High-strength steel with corrosion-resistant treatment for long-term industrial use.
  • High Load Capacity: Engineered for weights from light goods to heavy industrial machinery (up to 25 tons).
  • Safety First: Equipped with anti-slip surfaces, safety barriers, and sensors for personnel protection.
  • Smart Adjustability: Smooth height adjustment to bridge the gap between various truck heights and the dock.
Product Advantages Image

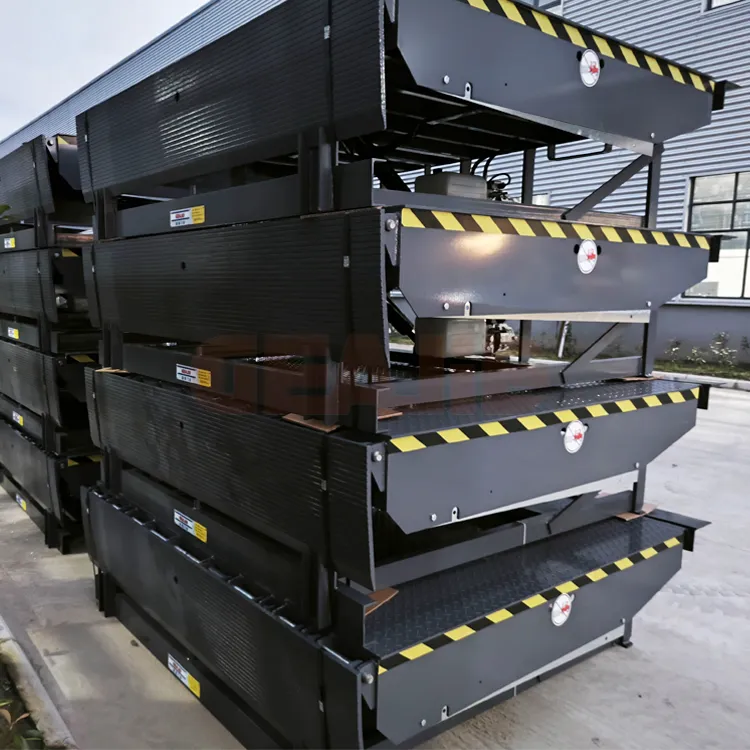

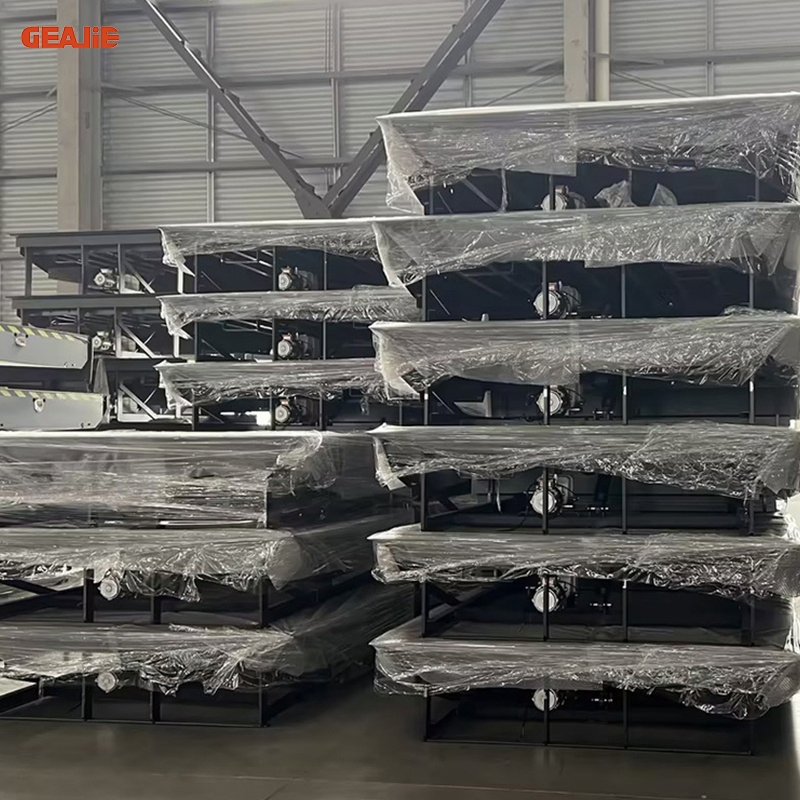

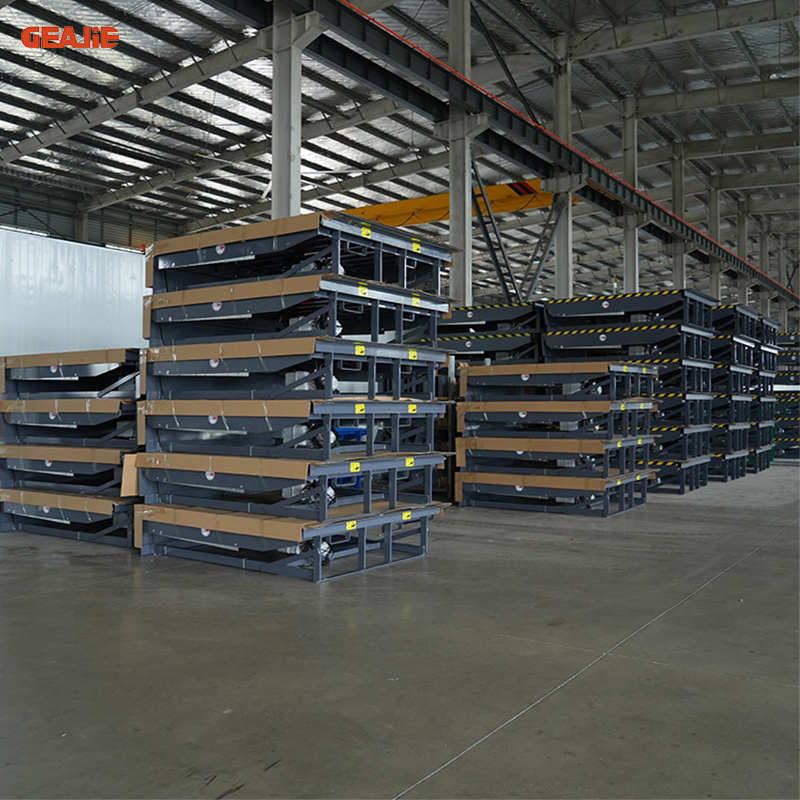

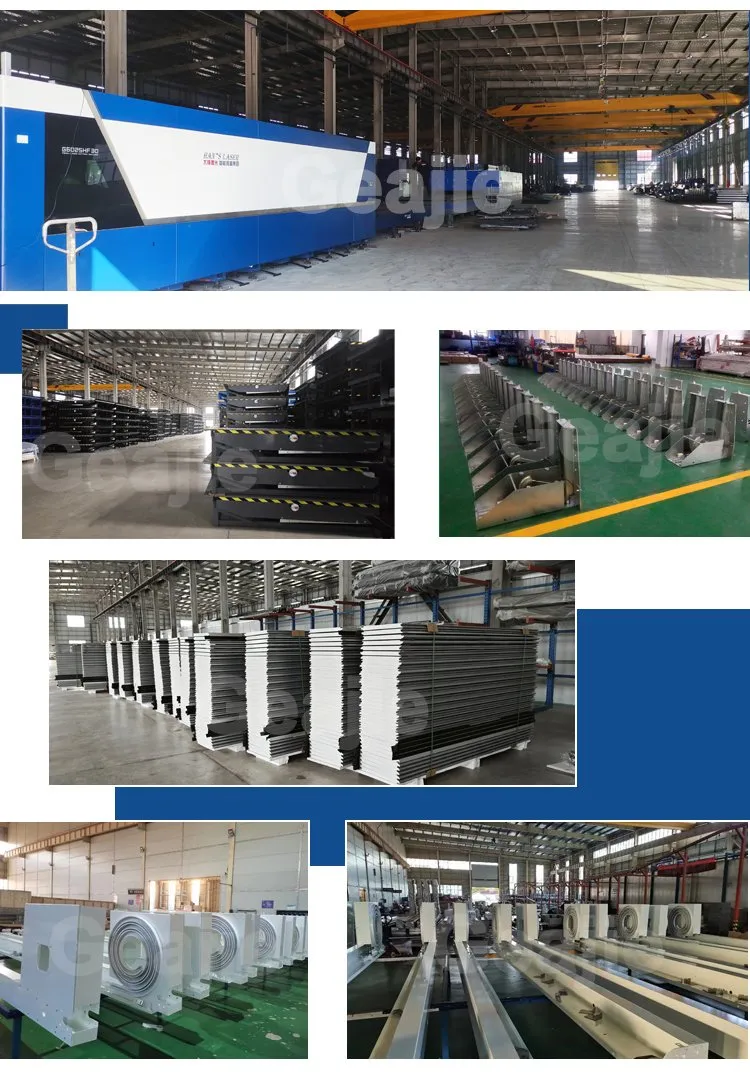

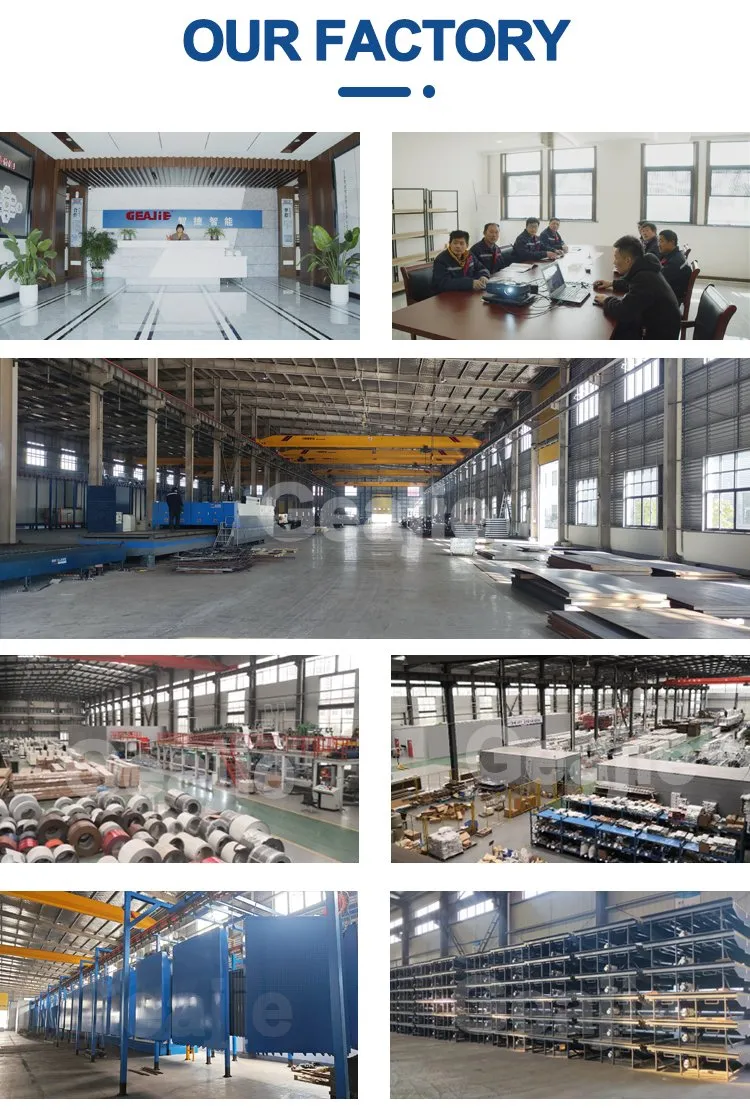

● FACTORY & PRODUCTION SHOW
Frequently Asked Questions
Q1: What is the Minimum Order Quantity (MOQ)?
A: Our standard MOQ starts from 1 set, making it accessible for both small projects and large industrial needs.
Q2: What are the maximum dimensions available for the dock levelers?
A: The maximum length can reach up to 6.5 meters, and the maximum width is 6 meters. All sizes are adjustable and customizable.
Q3: Do you provide other loading equipment and accessories?
A: Yes, we offer a full range of sliding doors, rapid doors, rolling shutter doors, loading platforms, door seals, industrial fans, and vehicle locks. We produce many parts in-house to ensure quality control.
Q4: How difficult is the installation process for these platforms?
A: Our products are designed for straightforward installation. Detailed guides are provided to ensure a smooth setup.
Q5: Which industries or locations typically use dock levelers?
A: They are widely used in factory outlets, logistics parks, outgoing ports, and any facility requiring efficient cargo handling.
Q6: What is the primary benefit of using a dock leveler?
A: It significantly improves the efficiency and safety of loading and unloading goods by bridging the gap between trucks and the facility floor.

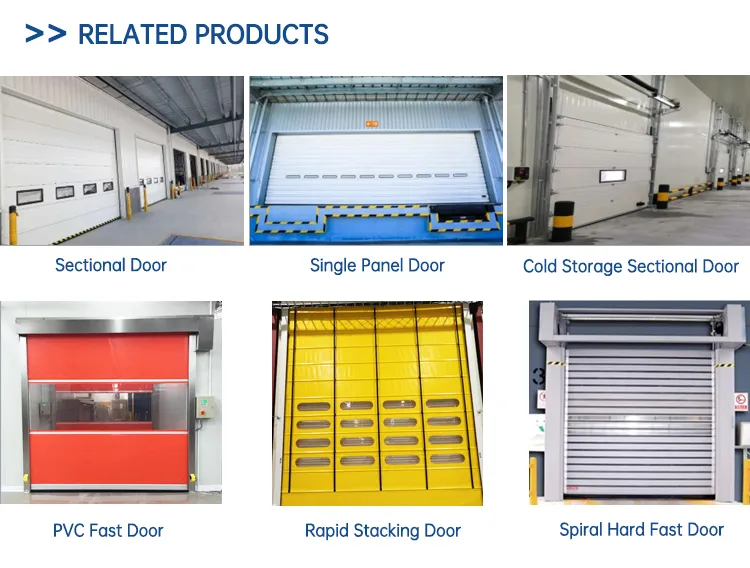

Related Products
