The Dock Leveler is designed for use in docks, logistics terminals, cold storage platforms and other locations where the efficient loading and unloading of goods is essential.

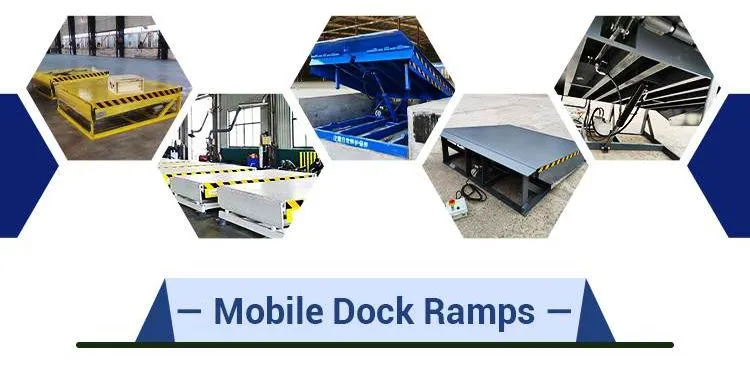

We offer a wide range of dock levelling solutions, including Hydraulic dock levelers, Telescoping lip dock levelers, Mechanical dock levelers, Vertical standing dock levelers, Air-powered dock levelers, EOM dock levelers and EOD dock levelers.

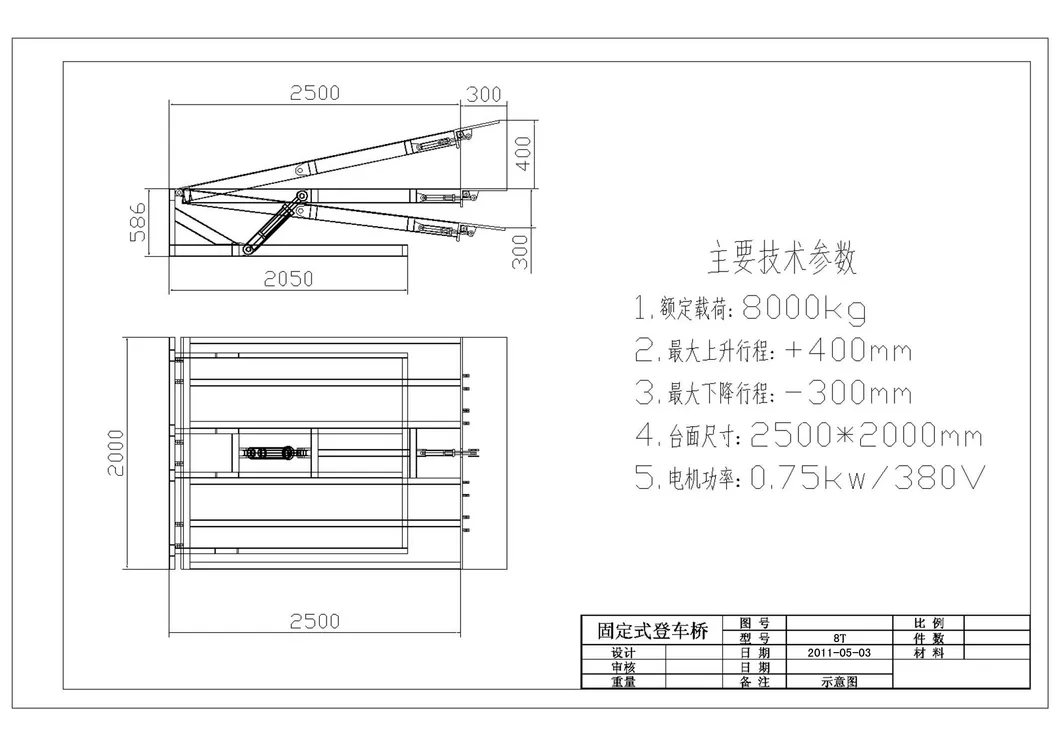

| Model | Capacity (T) | Platform Size | Distance | Lip Board Size | Motor Power |
|---|---|---|---|---|---|
| DCGQ6 | 6 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ8 | 8 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ10 | 10 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ12 | 12 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ6 | 6 | 2000*2000mm | 100 | 400mm | 0.75KW |
| DCGQ8 | 8 | 2000*2000mm | 100 | 400mm | 0.75KW |

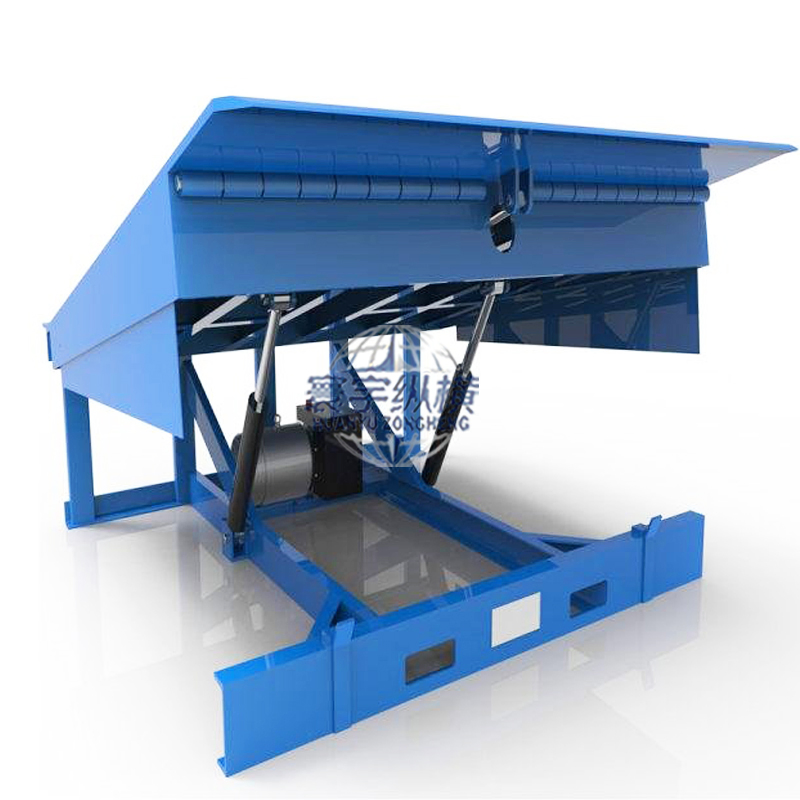

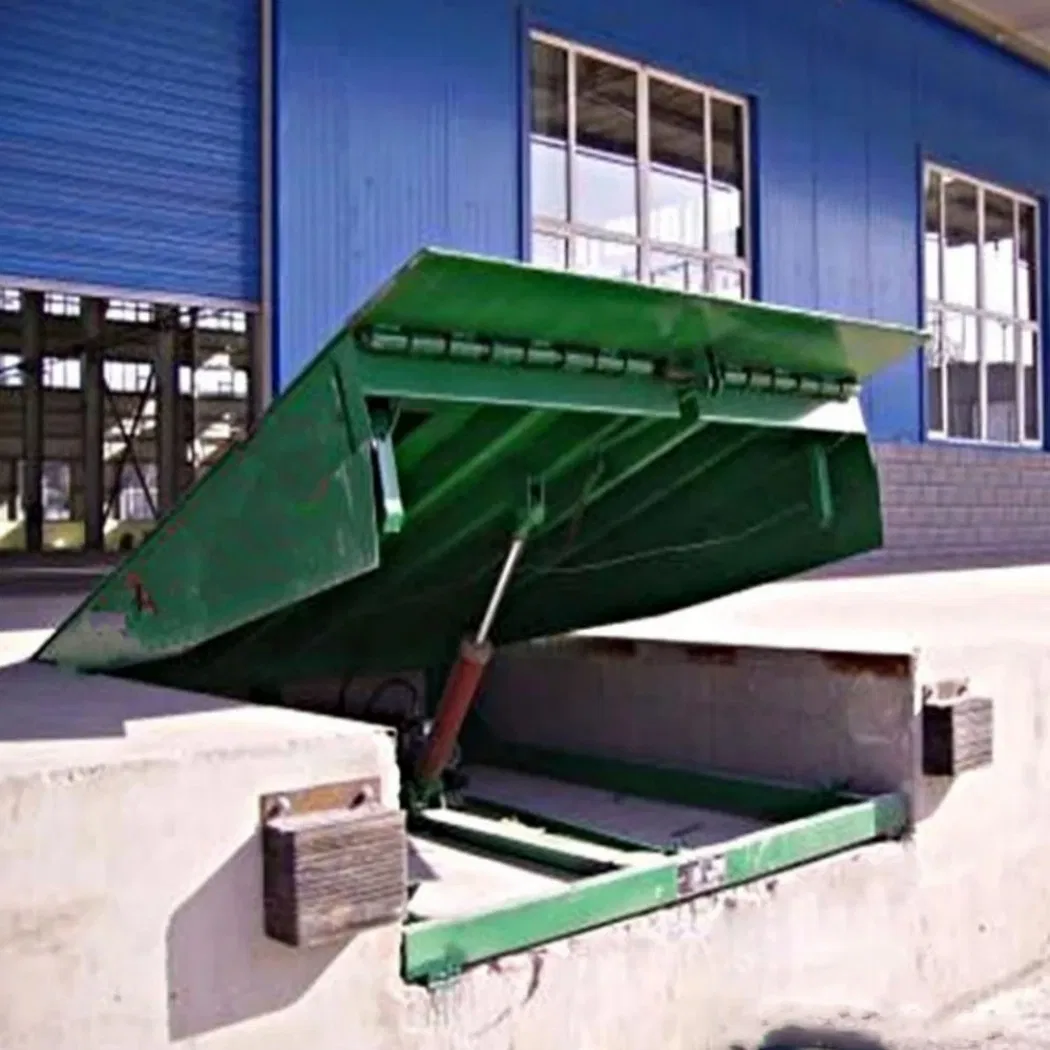

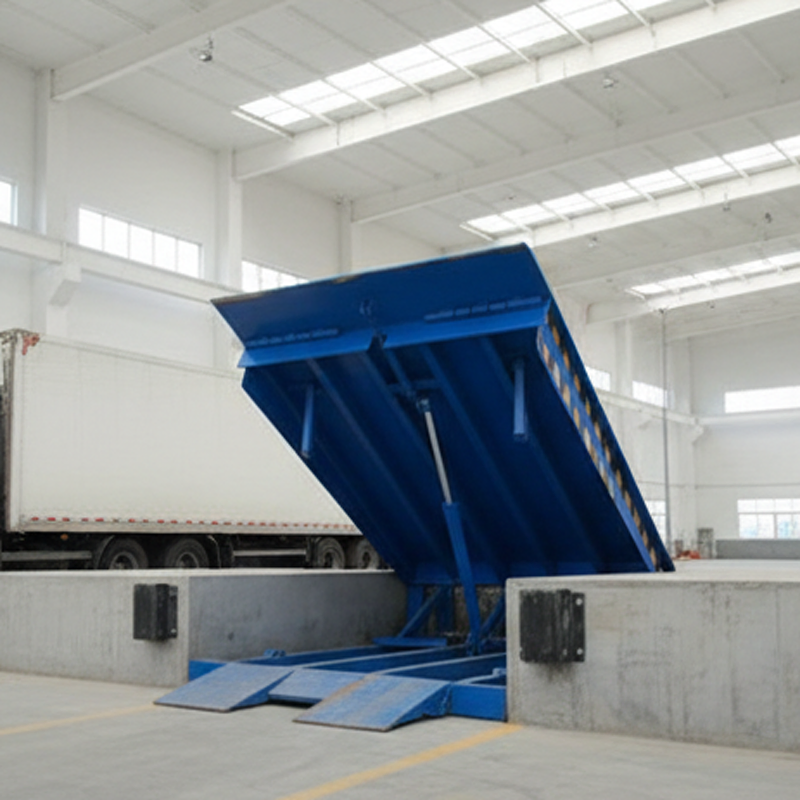

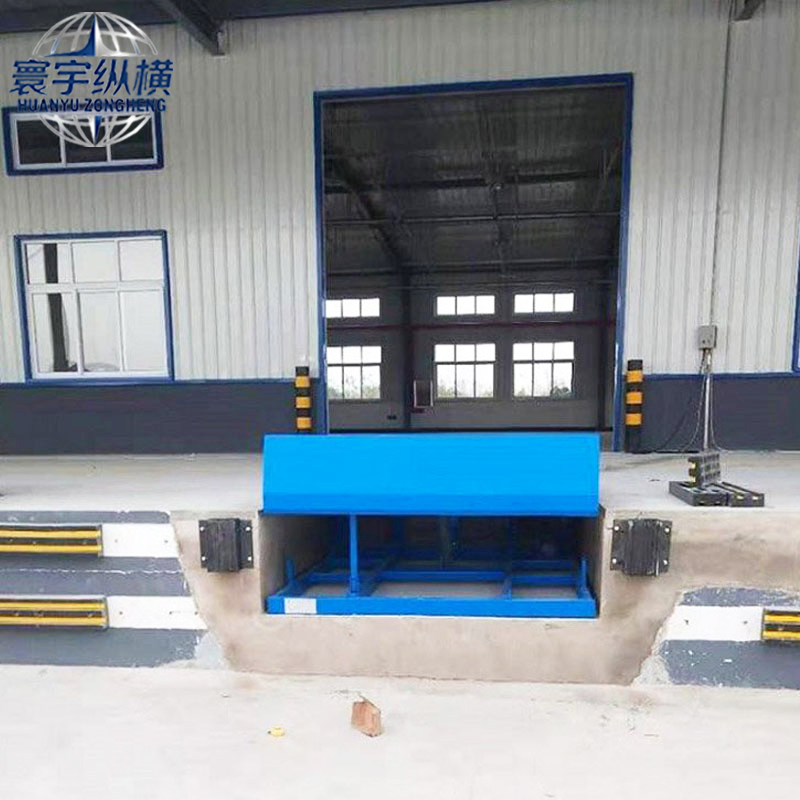

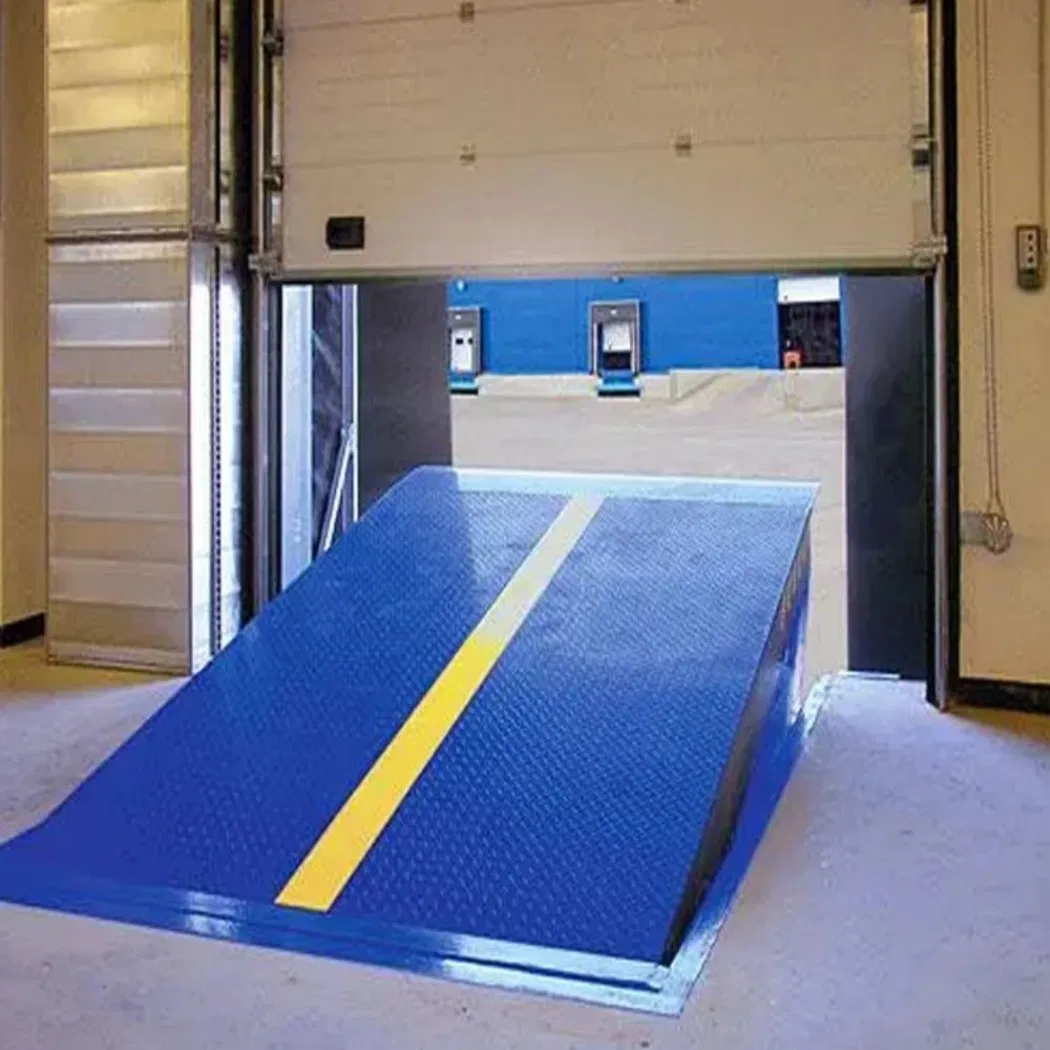

The Fixed Hydraulic Dock Leveler is an excellent auxiliary equipment for efficient material handling. It can move freely within containers, providing lightweight and efficient operation. Loading docks are equipped with anti-slip surfaces, anti-crush aprons, and emergency stop devices to minimize accident risks and ensure the safety of personnel and goods.
The adjustable height feature allows it to adapt to different vehicle types, making it suitable for various scenarios such as logistics warehouses, docks, and manufacturing plants. It reduces manual handling, lowers labor intensity, and enables mechanized operation.

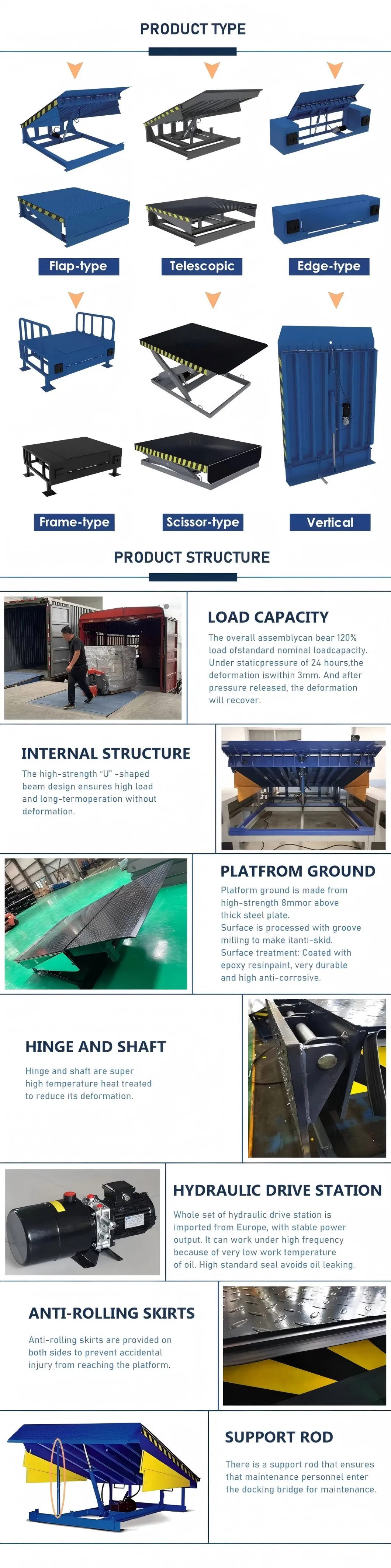

| System | Free maintenance design idea for a long run using application |
|---|---|

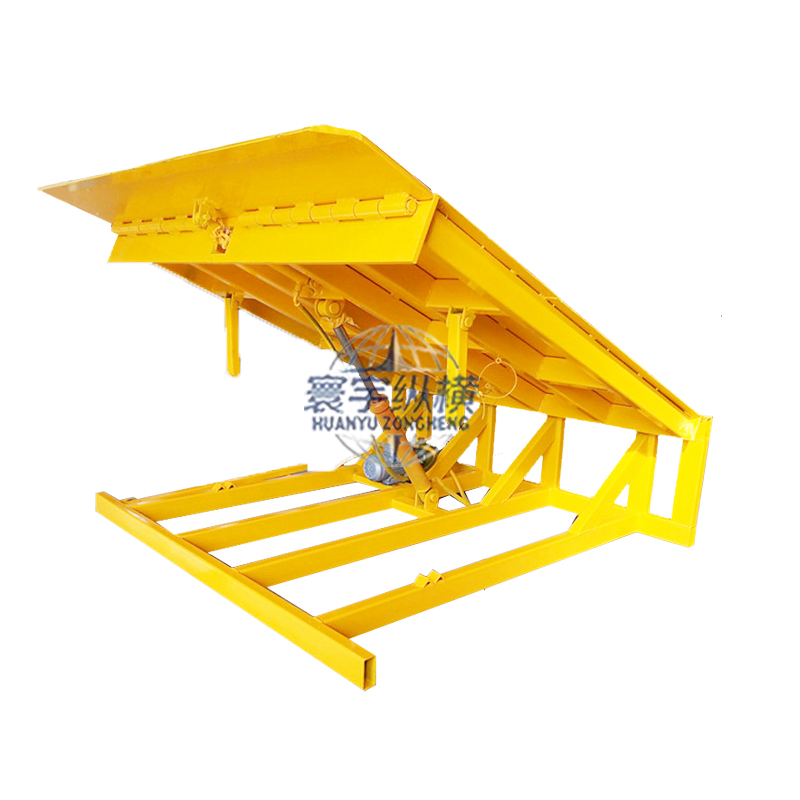

| Design | Hydraulic driving system for main deck and lip. Pump, pipe, and tank integrated under the deck. Velocity fuse ensures automatic stopping during heavy loading. |
| Safety | Full range foot guard, safety support bar for maintenance, tubular hinges, and galvanized shafts for rust prevention. |
| Structure | 8mm high-strength non-slip steel main plate; 14# I-beam steel reinforcement; 15mm thickness extension lip plate; Sandblasting treatment for superior coating adhesion. |

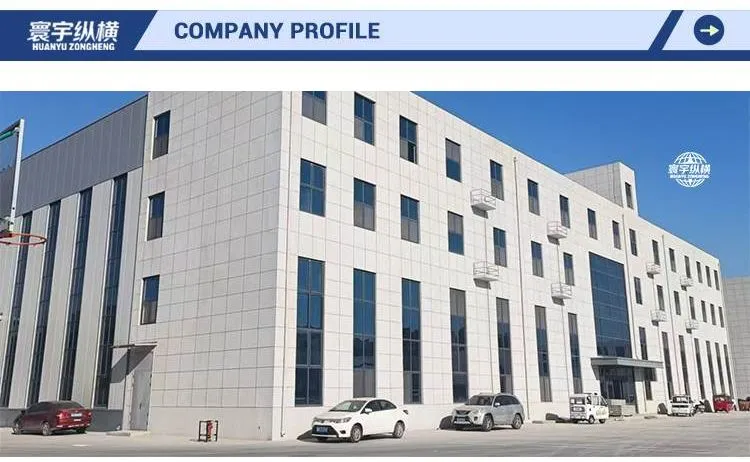

Our facility is a modern technology-based manufacturing enterprise integrating design, production, sales, installation, and after-sales service. Our product portfolio consists of multiple series, mainly including Wrapping Machines, lifting work platforms, and vehicle boarding bridges.
The equipment produced has successively obtained ISO system certification, CE safety certification, and multiple national invention patents. Complying with industry standards, the products are widely used in glass products, papermaking, chemicals, building materials, textiles, beverages, electronics, food, and metallurgy. The products are sold worldwide and have received high praise from customers.
