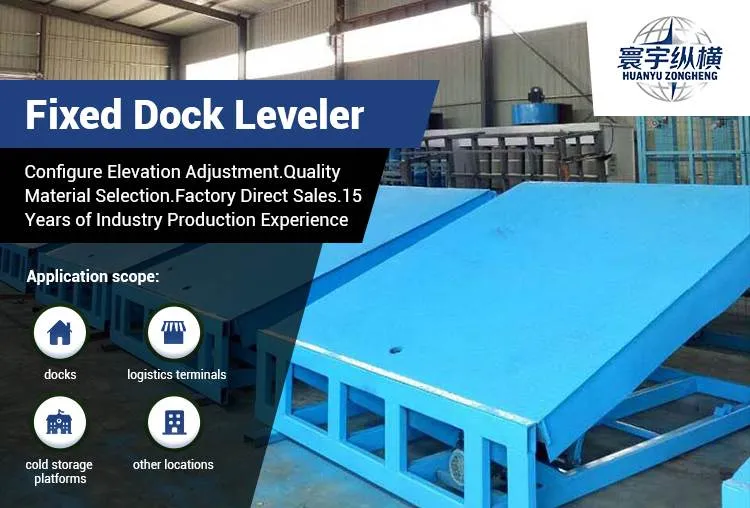

The Dock Leveler is designed for use in docks, logistics terminals, cold storage platforms and other locations where the efficient loading and unloading of goods is essential.
Hydraulic dock levelers, Telescoping lip dock levelers, Mechanical dock levelers, Vertical standing dock levelers, Air-powered dock levelers, EOM dock levelers and EOD dock levelers.

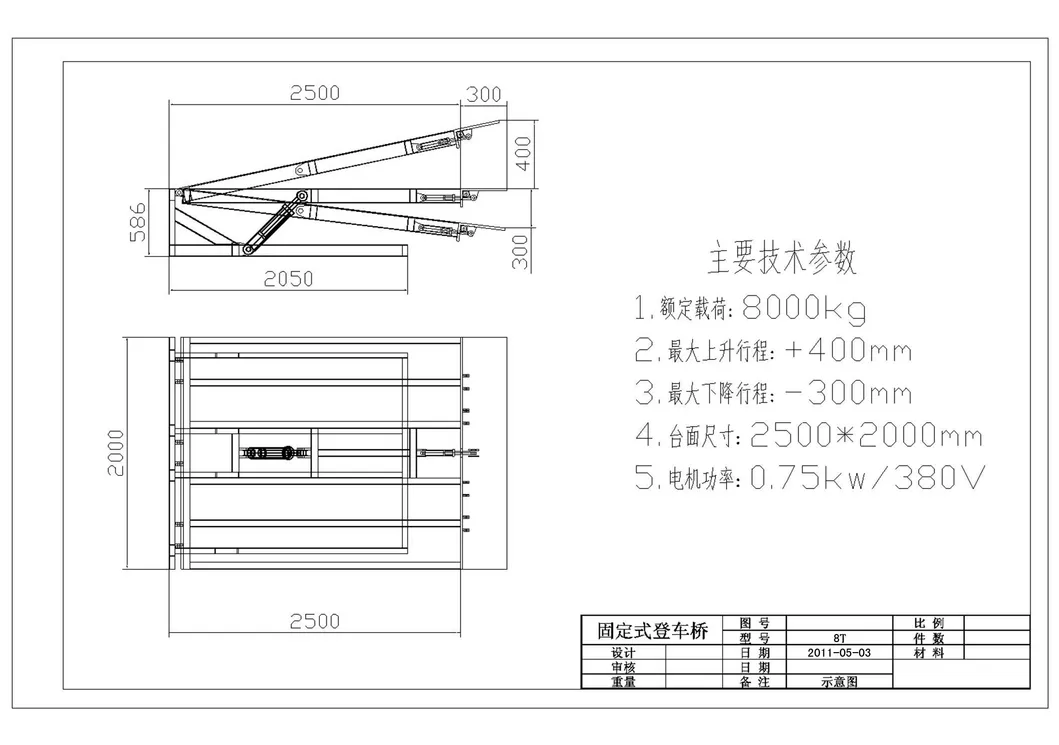

| Model | Capacity (T) | Platform Size (mm) | Distance (mm) | Lip Board Size (mm) | Motor Power |
|---|---|---|---|---|---|
| DCGQ6 | 6 | 2500*2000 | 100 | 400 | 0.75KW |
| DCGQ8 | 8 | 2500*2000 | 100 | 400 | 0.75KW |
| DCGQ10 | 10 | 2500*2000 | 100 | 400 | 0.75KW |
| DCGQ12 | 12 | 2500*2000 | 100 | 400 | 0.75KW |
| DCGQ6 | 6 | 2000*2000 | 100 | 400 | 0.75KW |
| DCGQ8 | 8 | 2000*2000 | 100 | 400 | 0.75KW |
| DCGQ10 | 10 | 2000*2000 | 100 | 400 | 0.75KW |
| DCGQ12 | 12 | 2000*2000 | 100 | 400 | 0.75KW |

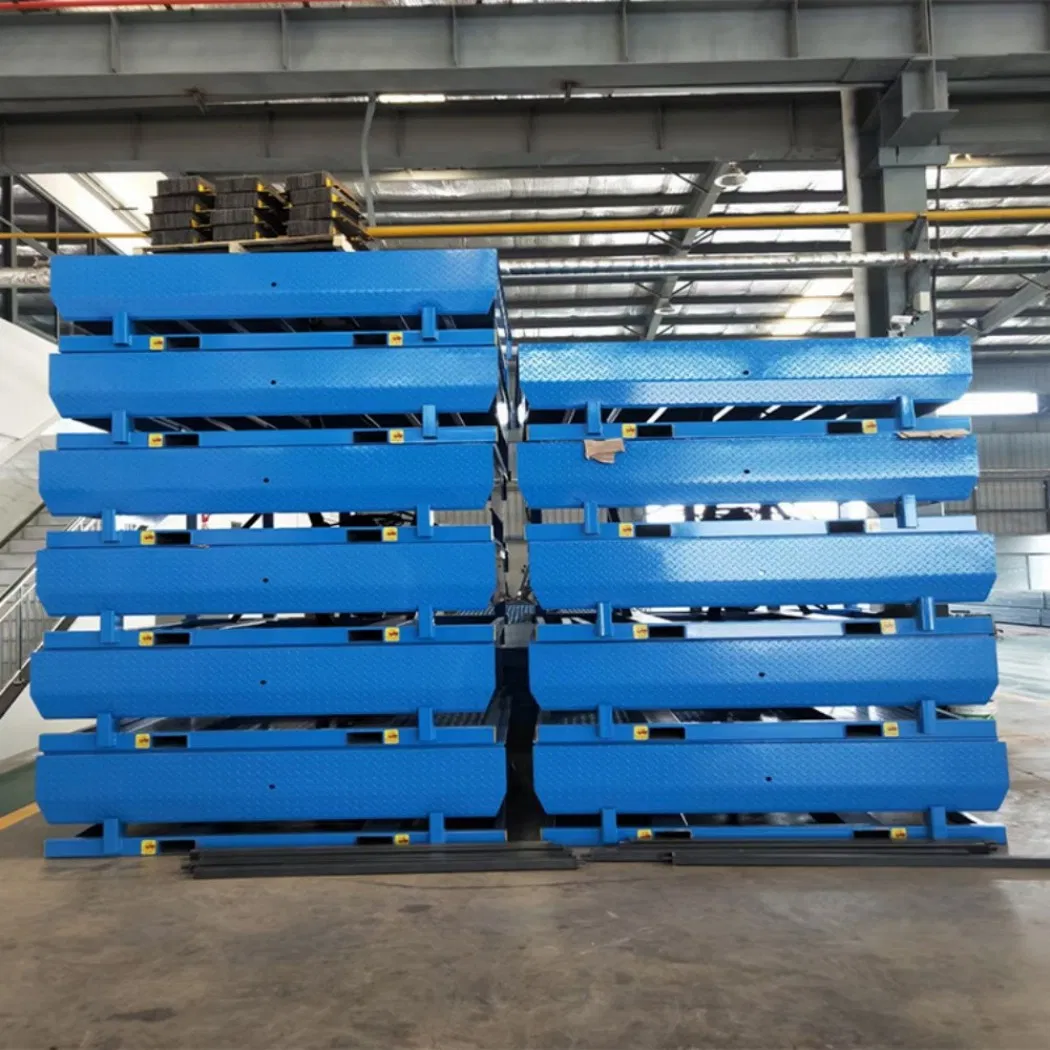

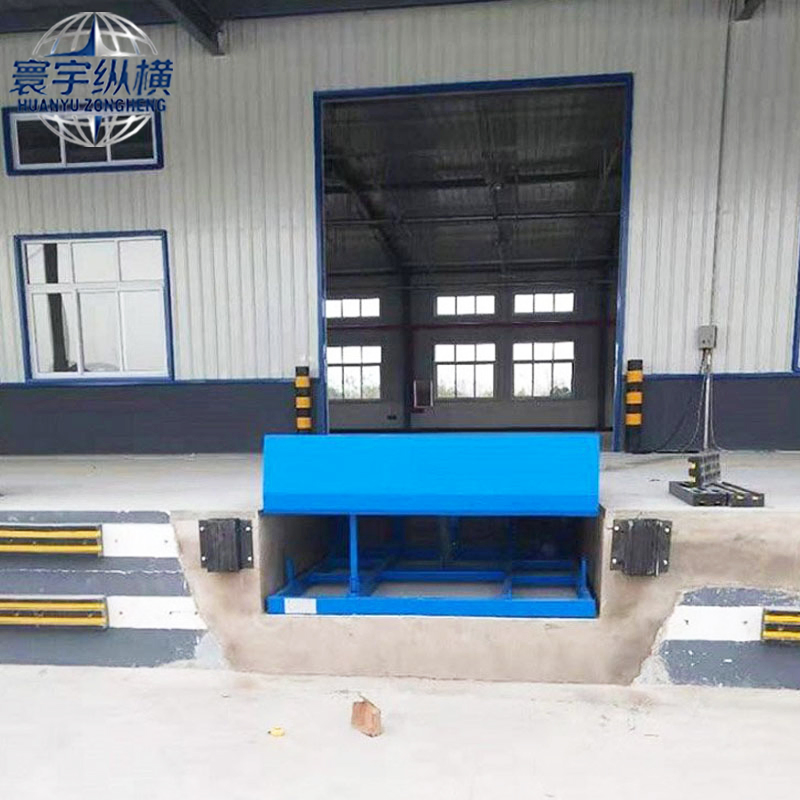

Fixed Hydraulic Dock Leveler is an excellent auxiliary equipment for efficient material handling. It can move freely within containers, providing lightweight and efficient operation. Loading docks are equipped with anti-slip surfaces, anti-crush aprons, and emergency stop devices to minimize accident risks and ensure the safety of personnel and goods.

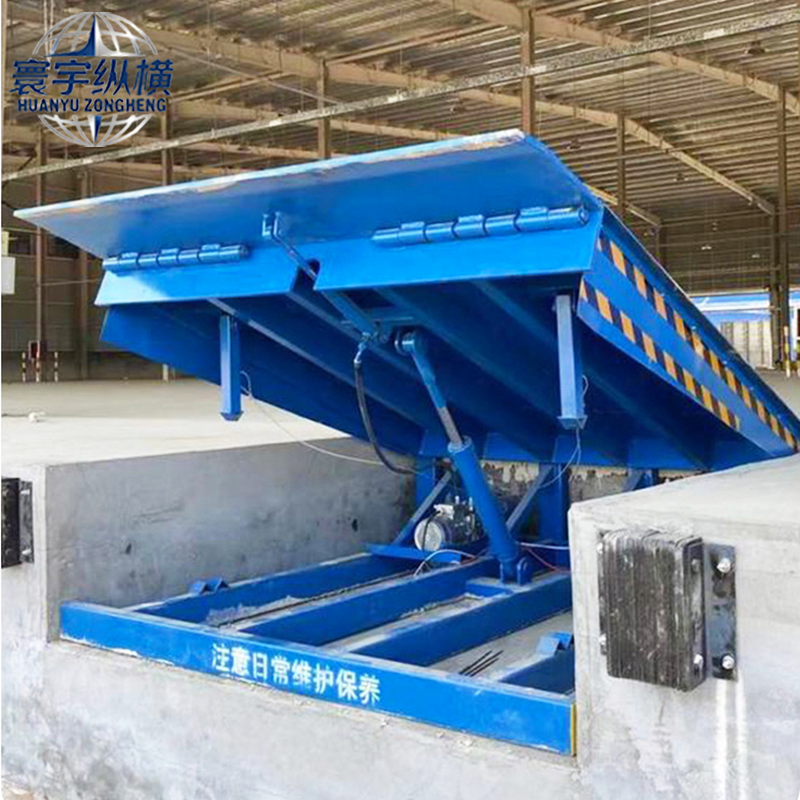

Free maintenance design idea for long run applications. Hydraulic driving system operates both the main deck and lip. The Pump, Pipe, and Tank are integrated under the deck. Hydraulic Velocity fuse (≤75 mm) ensures automatic stopping during heavy load failure.
Full range foot guards and penetrating safety support bars for maintenance. Front tubular hinge with 25mm diameter latch and galvanized long shaft surface treatment to prevent rust.
Main dock plate made of 8mm high-strength embossed non-slip steel. Extension lip plate is 15mm thick. Deck plate adopts 8 channels of unique 14# I-beam steel reinforcement.
The production facility is a modern technology-based manufacturing enterprise integrating design, production, installation, and after-sales service. Equipment has successively obtained ISO system certification, CE safety certification, and multiple national invention patents. Products are widely used in industries such as glass, papermaking, chemicals, food, and metallurgy.
