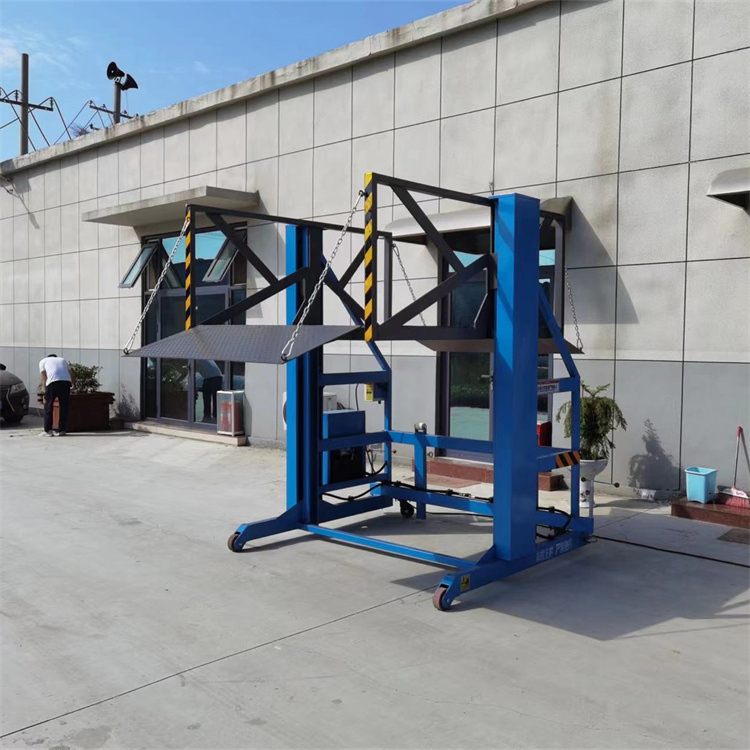

Movable Unloading Platform Electro-Hydraulic Container Loading and Unloading Lifting Platform
Movable Unloading Platform Electro-Hydraulic Container Loading and Unloading Lifting Platform
Movable Unloading Platform Electro-Hydraulic Container Loading and Unloading Lifting Platform
Movable Unloading Platform Electro-Hydraulic Container Loading and Unloading Lifting Platform
Movable Unloading Platform Electro-Hydraulic Container Loading and Unloading Lifting Platform
1 / 5
Movable Unloading Platform Electro-Hydraulic Container Loading and Unloading Lifting Platform
Movable Unloading Platform Electro-Hydraulic Container Loading and Unloading Lifting Platform
Movable Unloading Platform Electro-Hydraulic Container Loading and Unloading Lifting Platform
Movable Unloading Platform Electro-Hydraulic Container Loading and Unloading Lifting Platform
Movable Unloading Platform Electro-Hydraulic Container Loading and Unloading Lifting Platform

Movable Unloading Platform Electro-Hydraulic Container Loading and Unloading Lifting Platform

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋

Overview & Basic Info

Model NO.
SJYD
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Lift Chain
Driven Type
Hydraulic
Certification
CE, ISO 9001
Maximum Height
1700mm
Minimum Height
8mm
Specification
2T/3T
HS Code
8428909090
📦

Packaging & Delivery

Package Size
330.00cm * 197.00cm * 970.00cm
Gross Weight
850.000kg
Packaging
Wooden Box
⚙️

Product Description

The mobile loading and unloading platform adopts high-strength guide rail structure and hydraulic lifting. It offers convenient movement without the need for pits. It can be seamlessly used with manual or electric pallet trucks to achieve one-person rapid loading and unloading operations, representing a safe and efficient modern logistics solution.

Key Features:

  • Controlled by 24V safe voltage with wireless remote control.
  • Industrial waterproof aviation plug (Protection degree: IP44).
  • Equipped with power failure emergency descending device.
  • Includes travel limit device for enhanced safety.
📊

Product Parameters

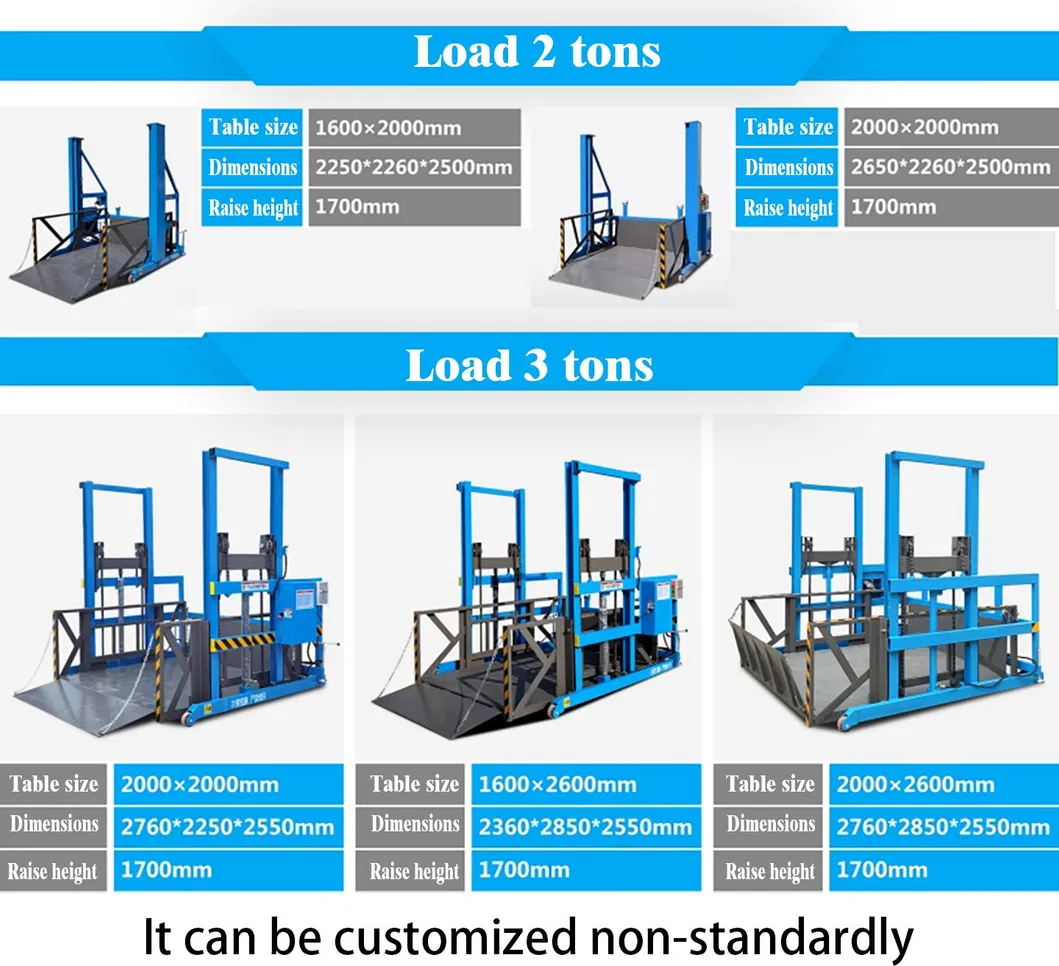

Model Table Size Lifting Height Load Panel Material Power Dead Weight
SJYD-2T 1600*2000mm 1700mm 2000KG 4.5mm Patterned Steel 2.2kw/3kw 718KG
2000*2000mm 1700mm 2000KG 4.5mm Patterned Steel 2.2kw/3kw 800KG
SJYD-3T 1600*2000mm 1700mm 3000KG 4.5mm Patterned Steel 4kw 988KG
2000*2000mm 1700mm 3000KG 4.5mm Patterned Steel 4kw 1060KG
1600*2600mm 1700mm 3000KG 4.5mm Patterned Steel 4kw 1108KG
2000*2600mm 1700mm 3000KG 4.5mm Patterned Steel 4kw 1200KG
🖼️

Visual Display

Movable Unloading Platform 1
Movable Unloading Platform 2
Movable Unloading Platform 3

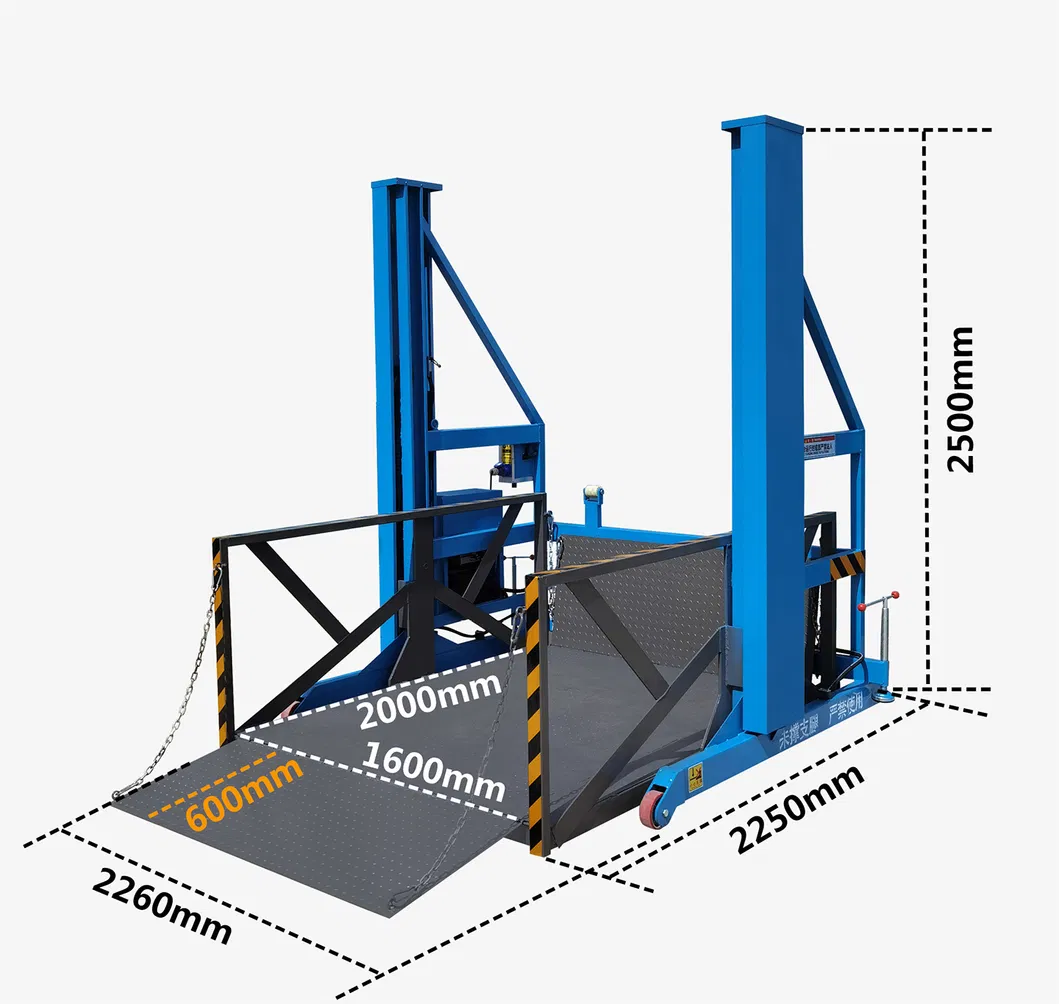

Movable Unloading Platform 4

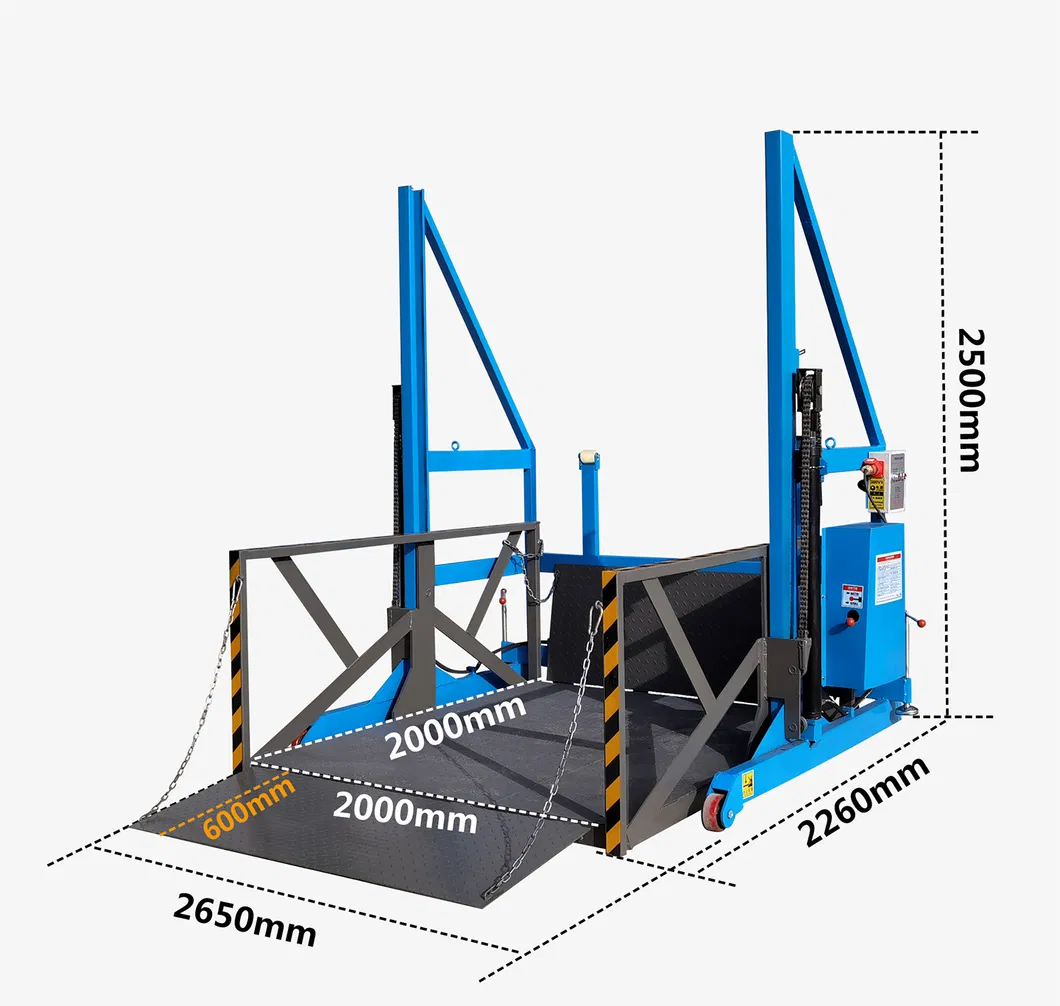

Movable Unloading Platform 5

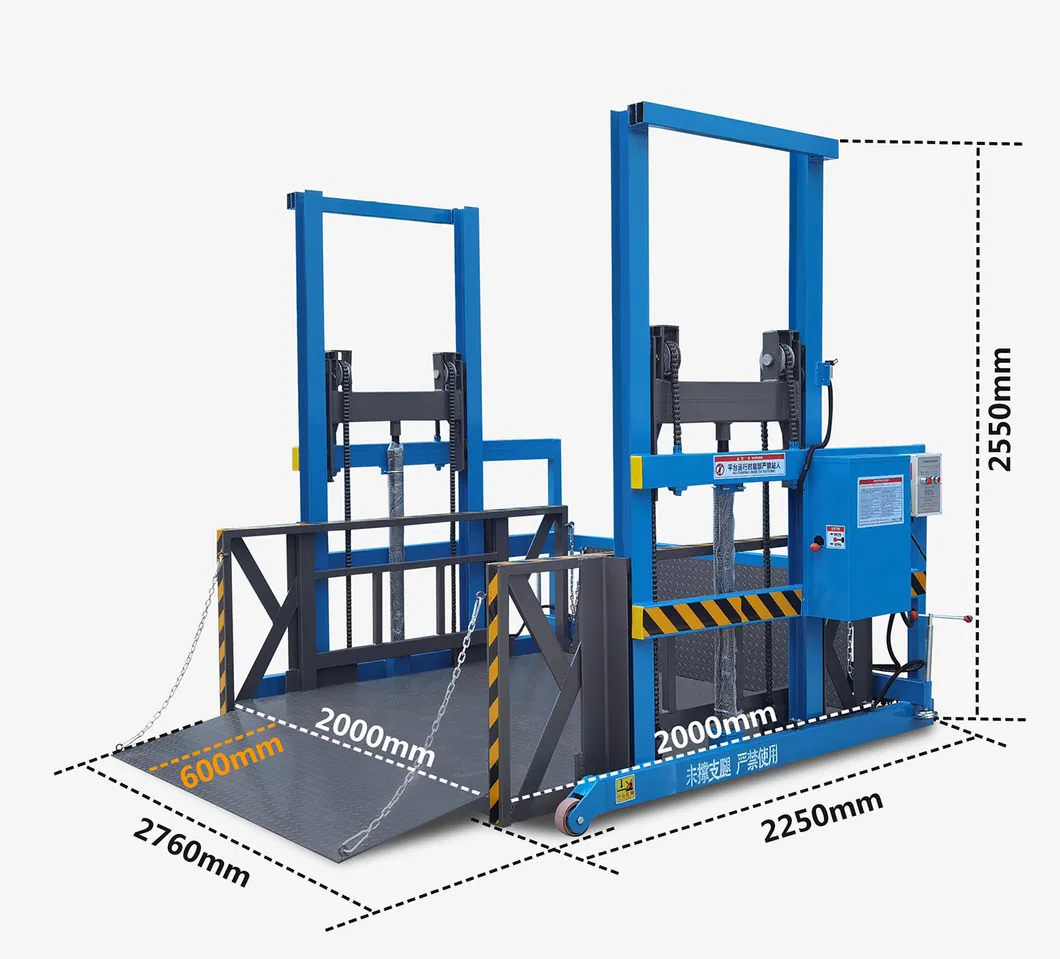

Movable Unloading Platform 6

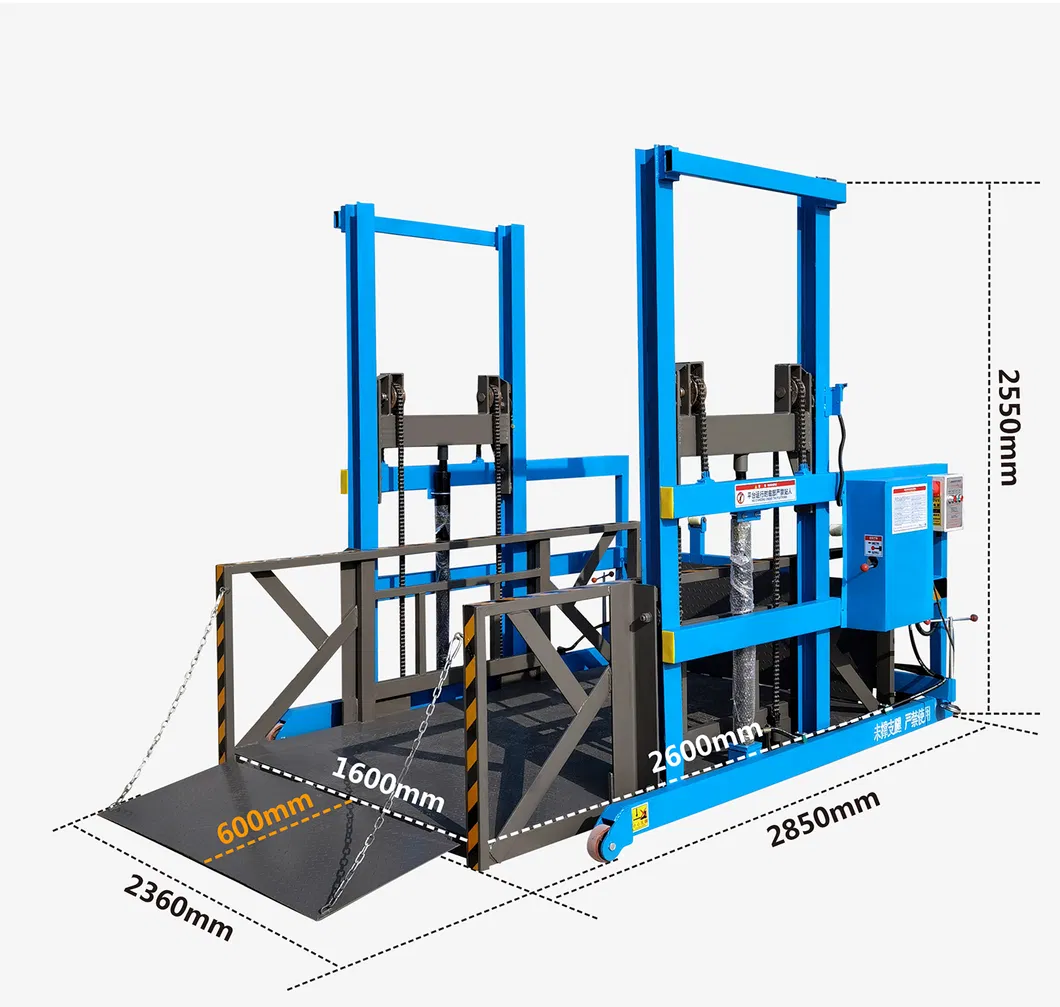

Movable Unloading Platform 7

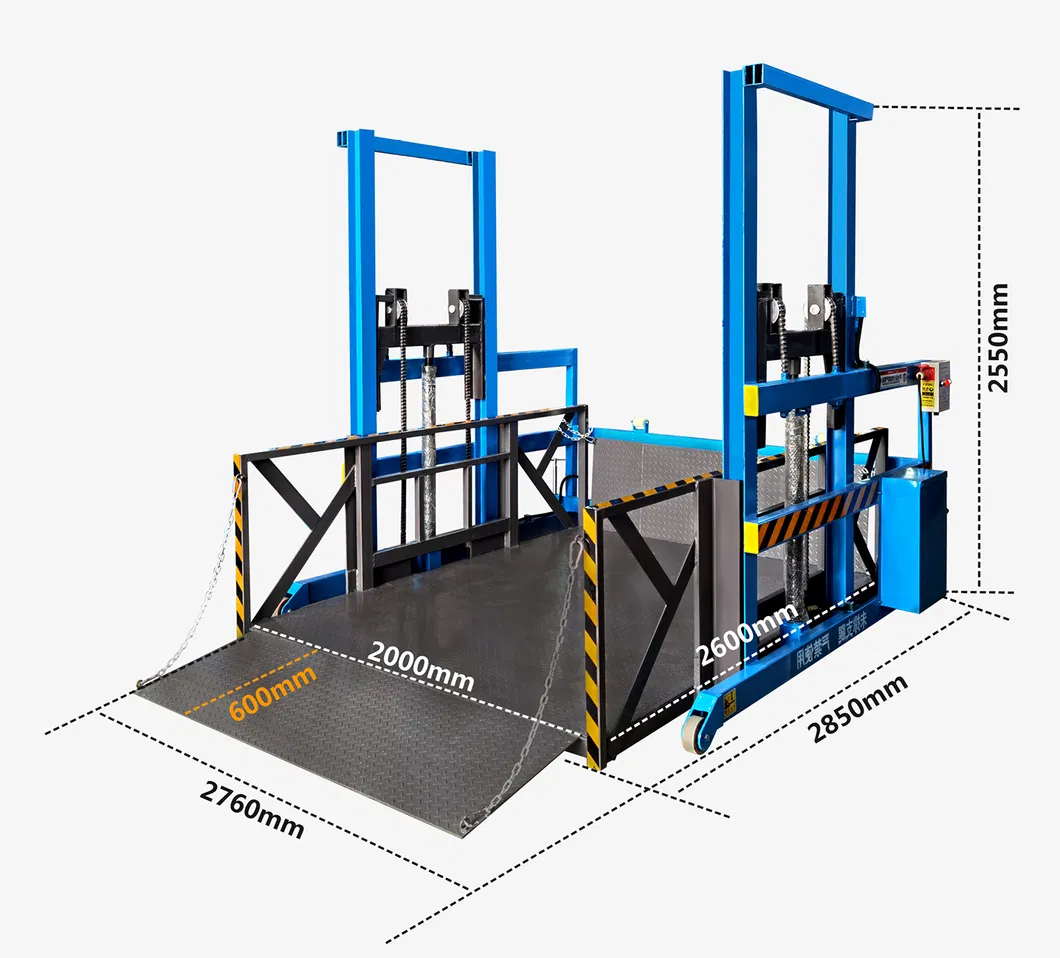

Movable Unloading Platform 8

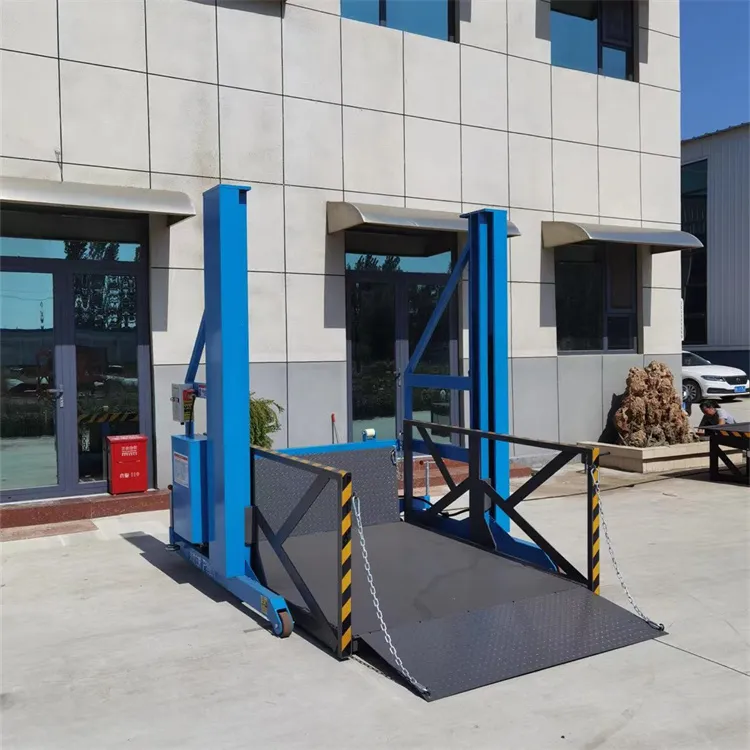

Movable Unloading Platform 9

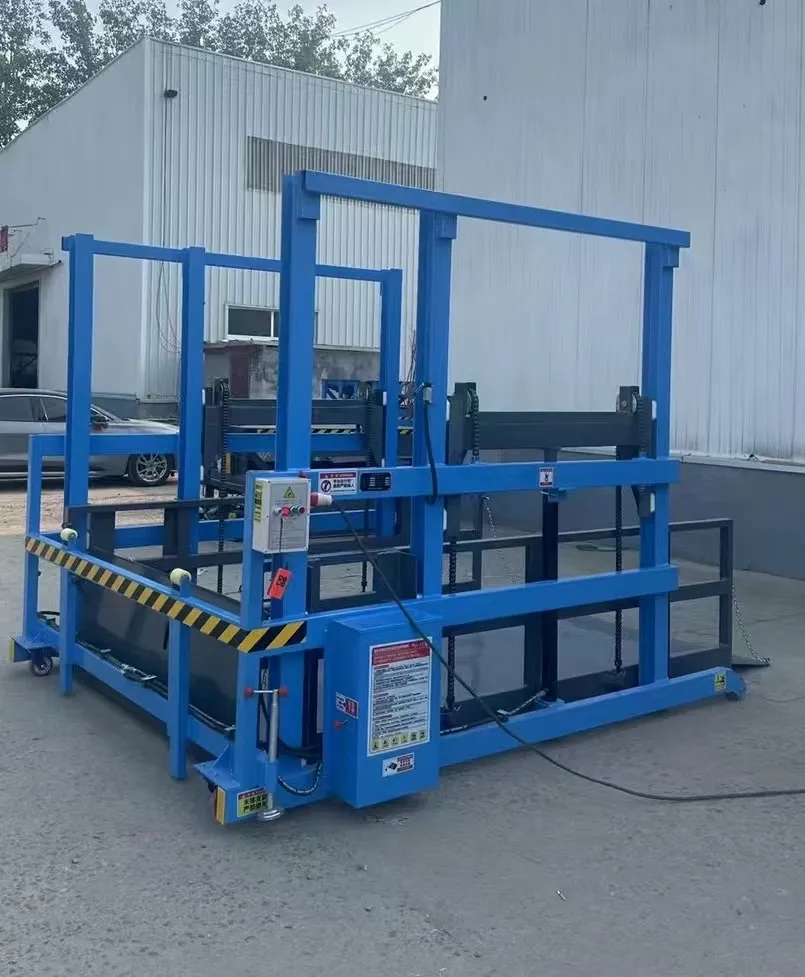

Movable Unloading Platform 10

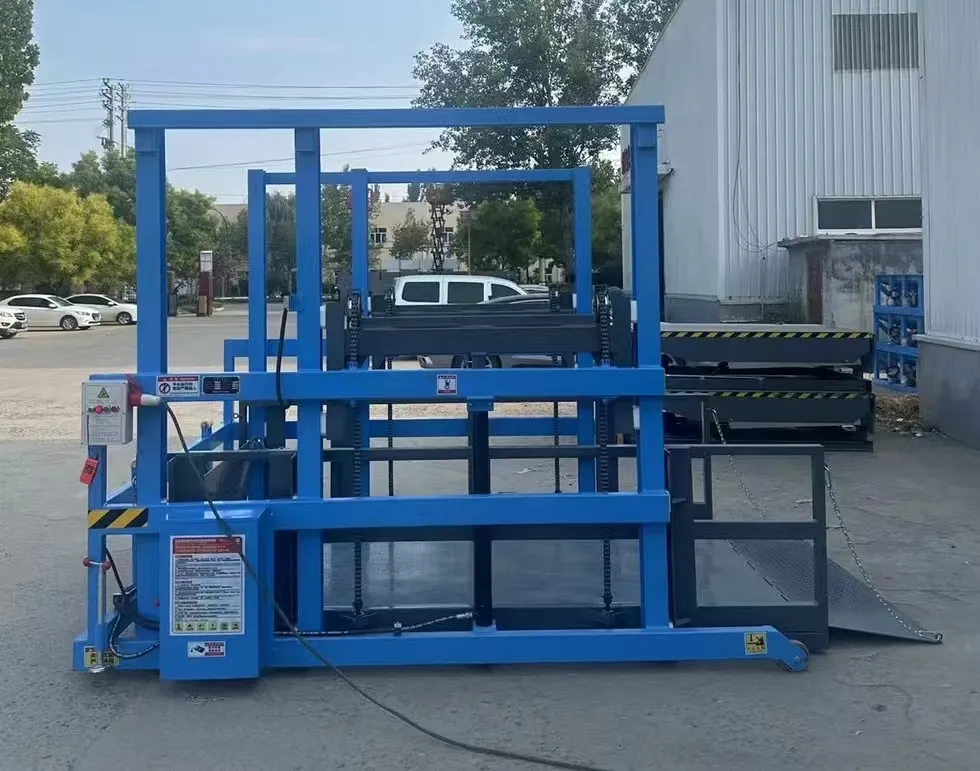

Movable Unloading Platform 11

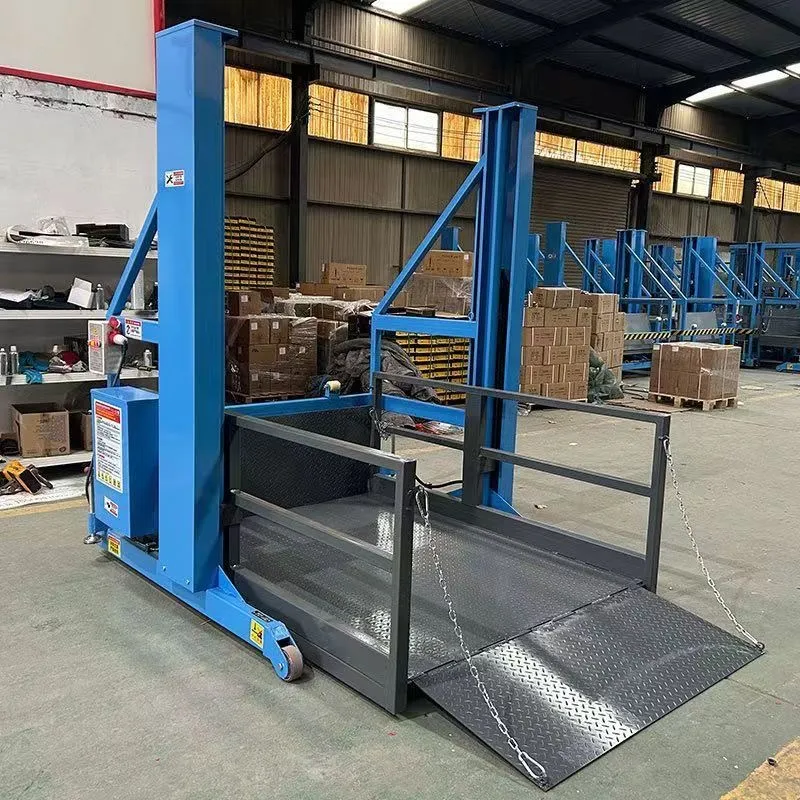

Movable Unloading Platform 12
❓

Frequently Asked Questions

Does this platform require a foundation pit?
No, this mobile loading and unloading platform is designed for convenient movement and does not require any pit for installation.
What safety devices are included in the SJYD series?
The platform is equipped with a 24V safe voltage control system, wireless remote control, an emergency descending device for power failures, and a travel limit device.
What is the maximum load capacity available?
The SJYD series comes in two main specifications: 2000KG (2T) and 3000KG (3T) loading capacities.
Can the table size be customized?
Yes, while standard sizes like 1600*2000mm and 2000*2600mm are available, the table size is customizable to meet specific requirements.
What is the material used for the platform panel?
The panel is constructed from 4.5mm high-strength patterned steel plate for anti-slip safety and durability.
Is the equipment waterproof for outdoor use?
The platform uses an industrial waterproof aviation plug with an IP44 protection degree, making it suitable for various industrial environments.
