Multifunctional Lifting Equipment Mobile Loading and Unloading Platform
Multifunctional Lifting Equipment Mobile Loading and Unloading Platform
Multifunctional Lifting Equipment Mobile Loading and Unloading Platform
Multifunctional Lifting Equipment Mobile Loading and Unloading Platform
Multifunctional Lifting Equipment Mobile Loading and Unloading Platform
1 / 5
Multifunctional Lifting Equipment Mobile Loading and Unloading Platform
Multifunctional Lifting Equipment Mobile Loading and Unloading Platform
Multifunctional Lifting Equipment Mobile Loading and Unloading Platform
Multifunctional Lifting Equipment Mobile Loading and Unloading Platform
Multifunctional Lifting Equipment Mobile Loading and Unloading Platform

Multifunctional Lifting Equipment Mobile Loading and Unloading Platform

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information

Model NO.:SJYD
Lift Mechanism:Lift Chain
Driven Type:Hydraulic
Maximum Height:1700mm
Control Mode:Wireless Remote Control
Certification:CE, ISO 9001
Application:Workshop, Shipboard, Warehouse, Building Crane
HS Code:8428909090
Packaging:Wooden Box (Size: 330cm * 197cm * 970cm)

Product Description

⚙️
The mobile loading and unloading platform adopts a high-strength guide rail structure and hydraulic lifting for convenient movement. No pits are required, and it can be used with manual or electric pallet trucks to achieve rapid one-person operations.
🛡️
Safety is prioritized with a 24V safe voltage control system and wireless remote control. It features an industrial waterproof aviation plug (IP44), power failure emergency descending device, and travel limit device.

Technical Parameters

Model Table Size Lifting Height Load Capacity Panel Material Power Dead Weight
SJYD-2T 1600*2000mm 1700mm 2000KG 4.5mm Patterned steel plate 2.2kw/3kw 718KG
2000*2000mm 1700mm 2000KG 4.5mm Patterned steel plate 2.2kw/3kw 800KG
SJYD-3T 1600*2000mm 1700mm 3000KG 4.5mm Patterned steel plate 4kw 988KG
2000*2000mm 1700mm 3000KG 4.5mm Patterned steel plate 4kw 1060KG
1600*2600mm 1700mm 3000KG 4.5mm Patterned steel plate 4kw 1108KG
2000*2600mm 1700mm 3000KG 4.5mm Patterned steel plate 4kw 1200KG

Product Display

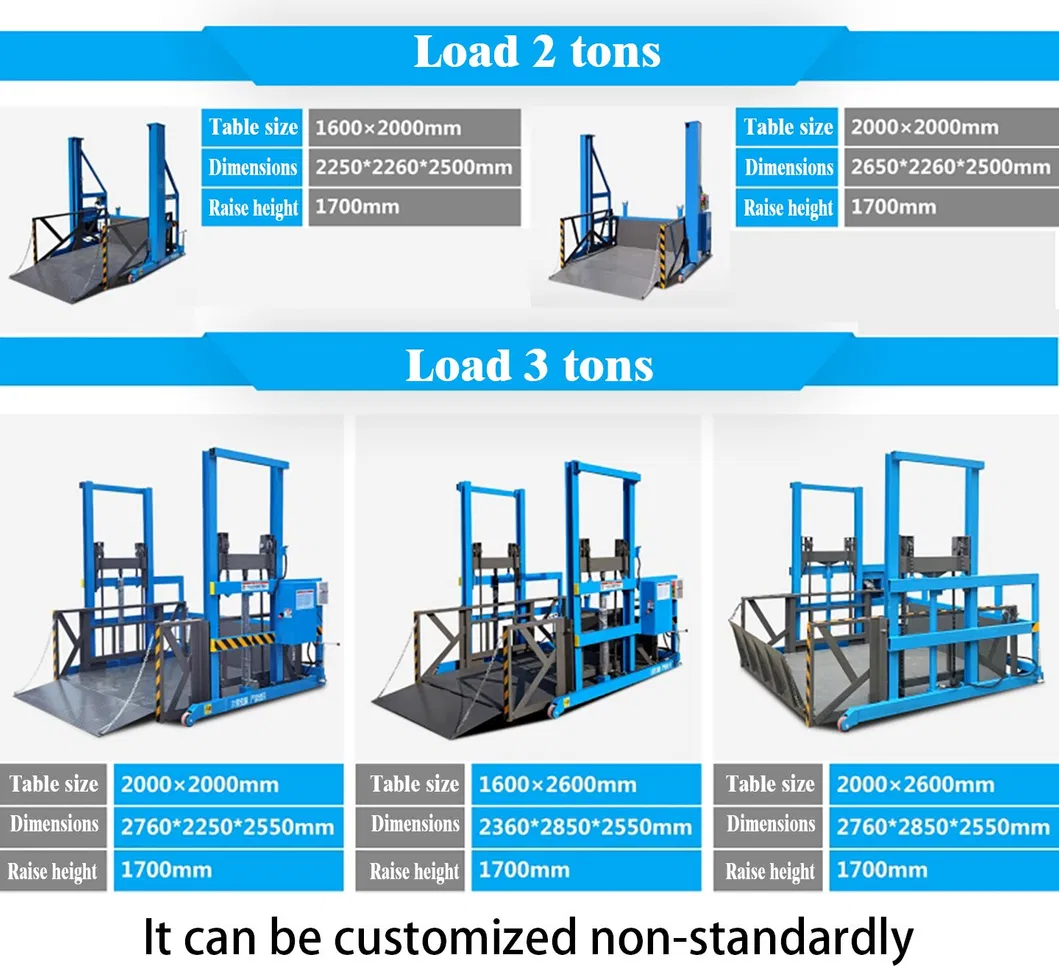

Mobile Loading Platform 1
Mobile Loading Platform 2
Mobile Loading Platform 3

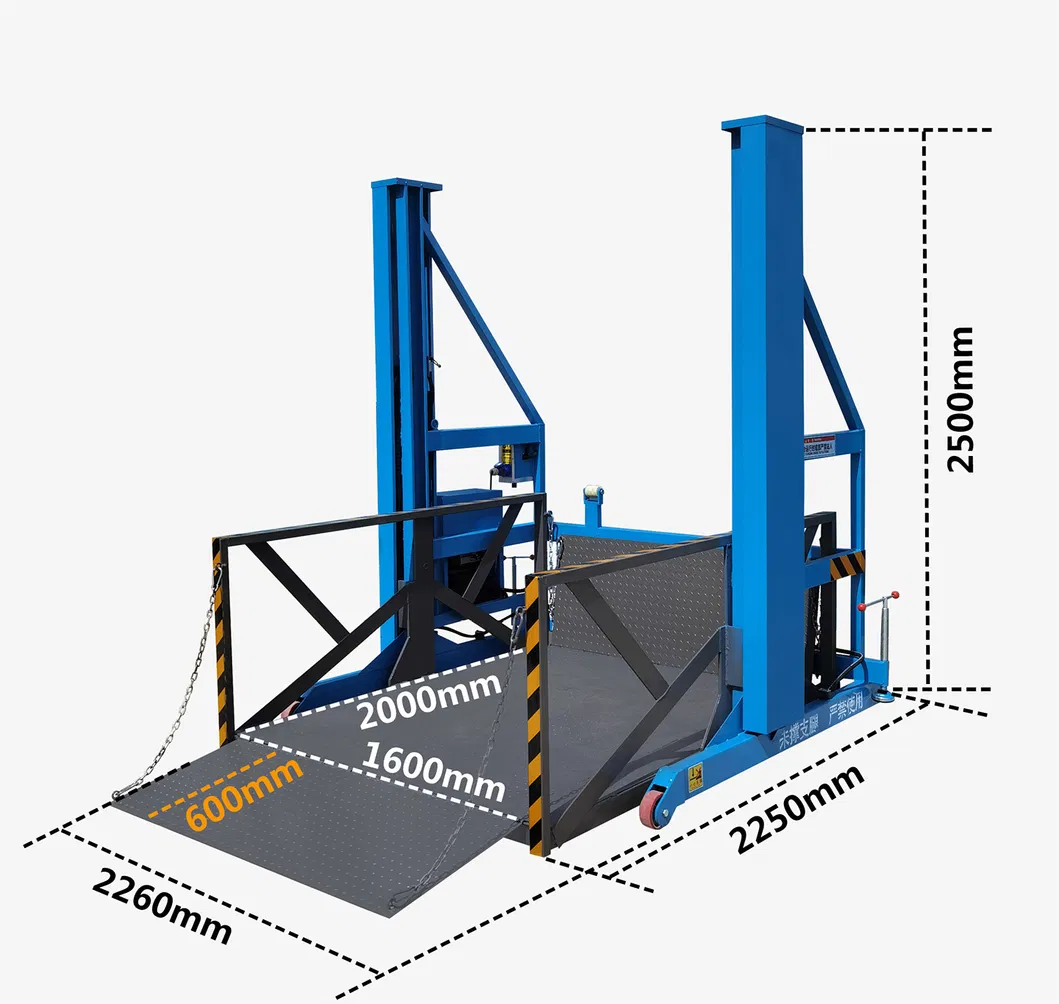

Mobile Loading Platform 4

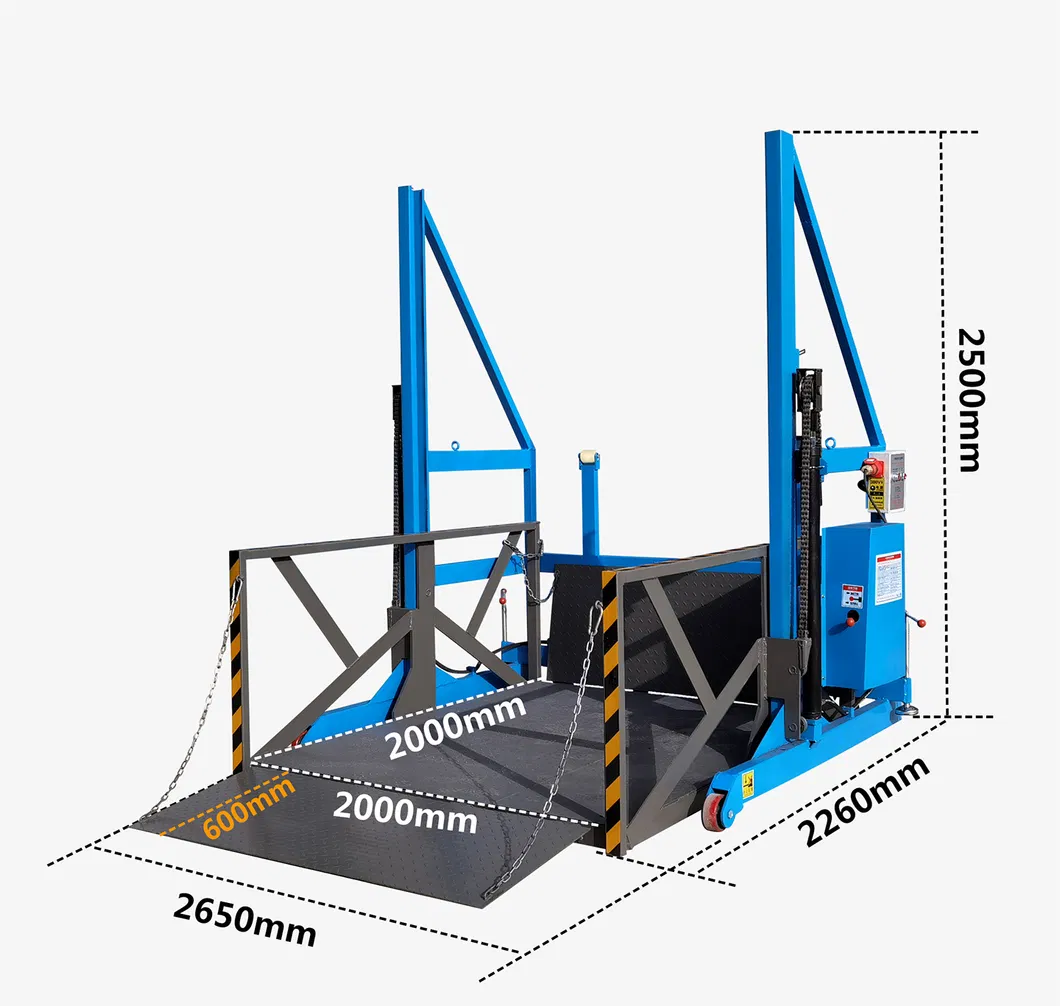

Mobile Loading Platform 5

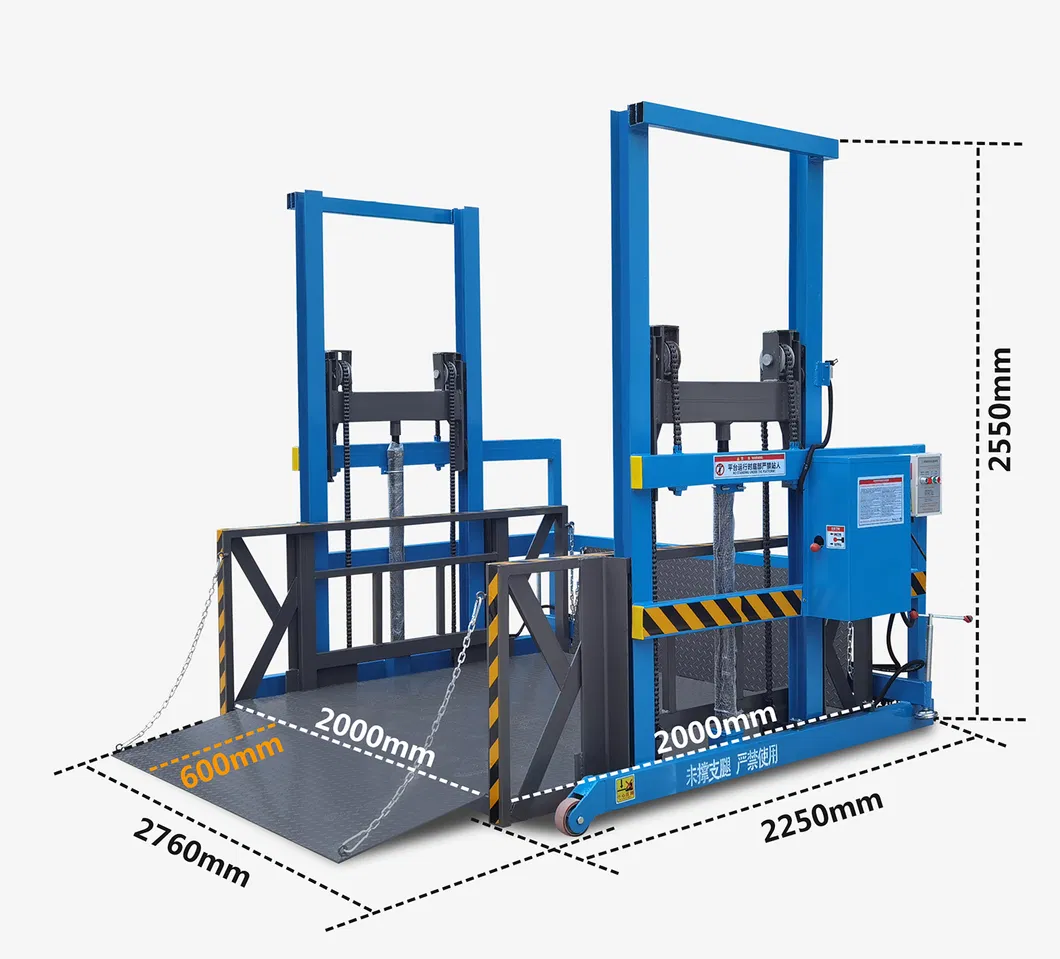

Mobile Loading Platform 6

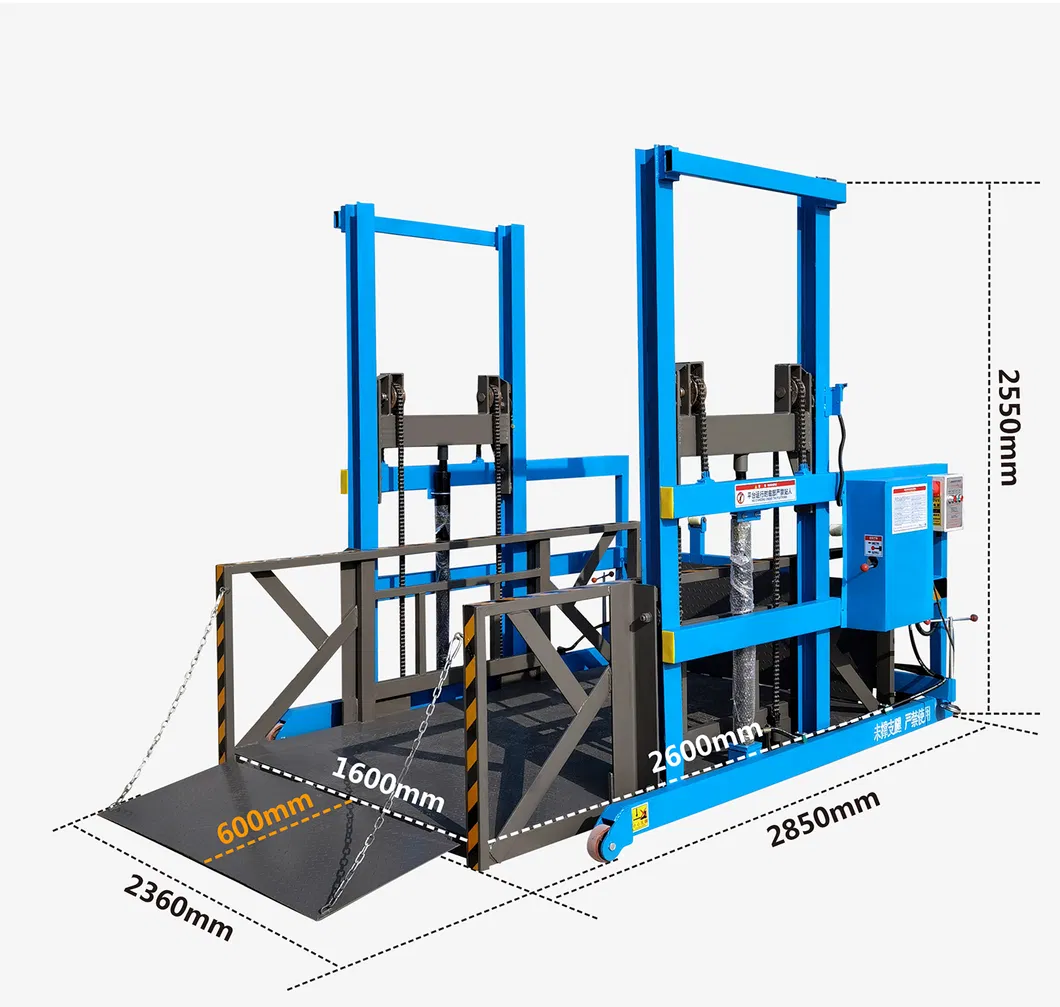

Mobile Loading Platform 7

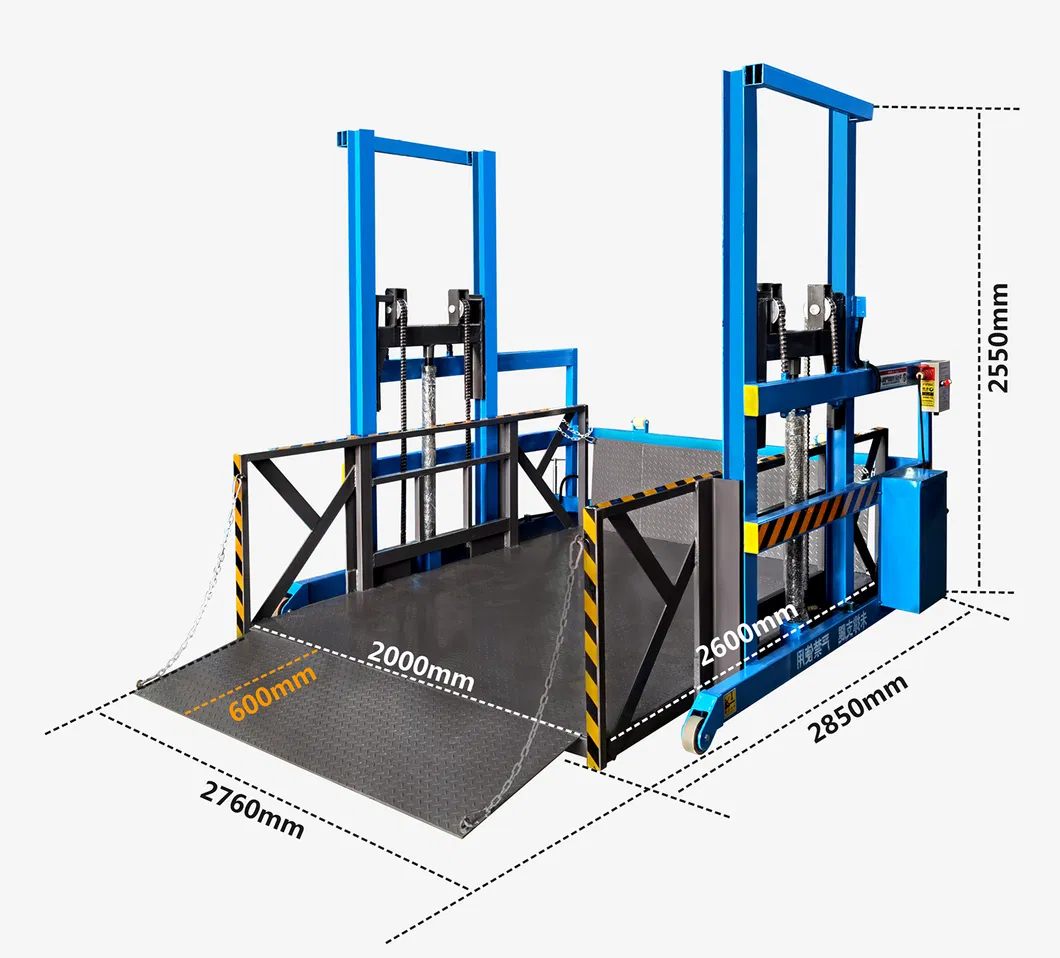

Mobile Loading Platform 8

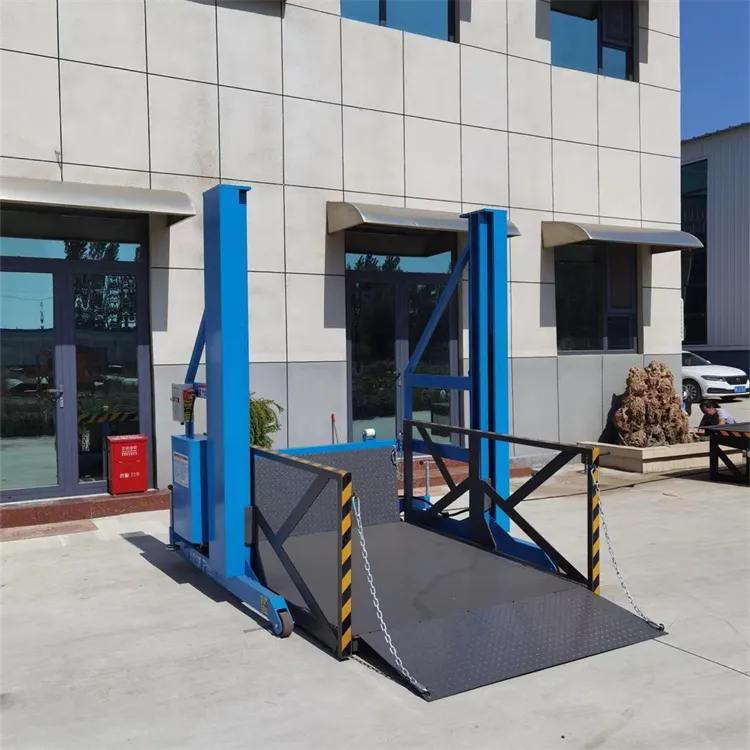

Mobile Loading Platform 9

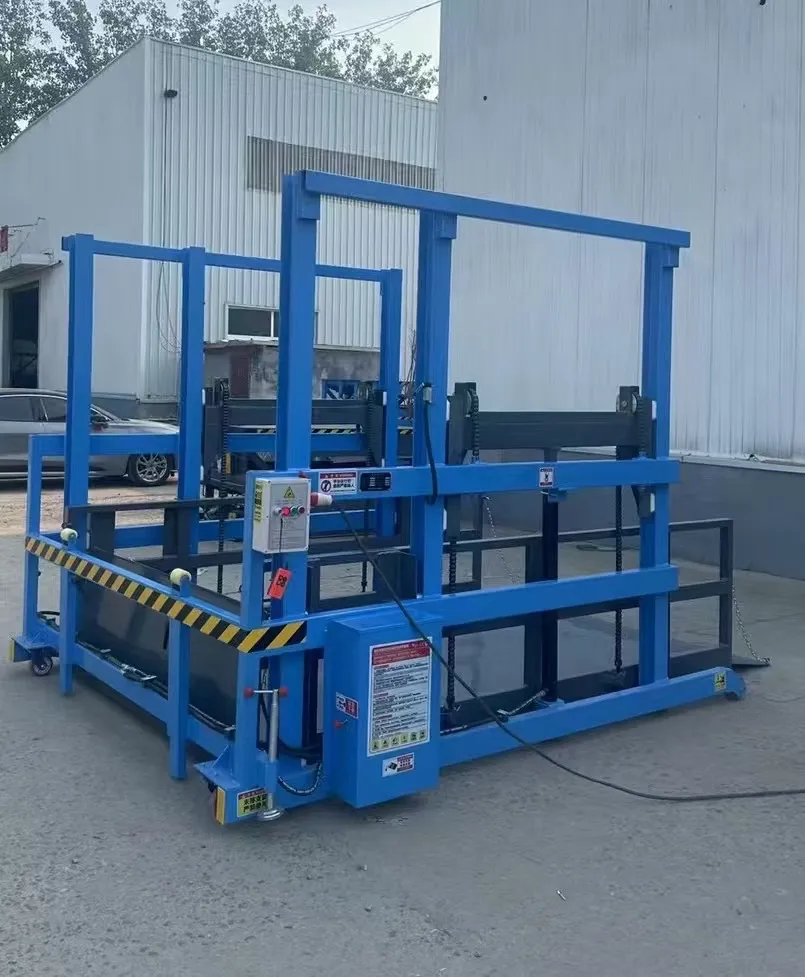

Mobile Loading Platform 10

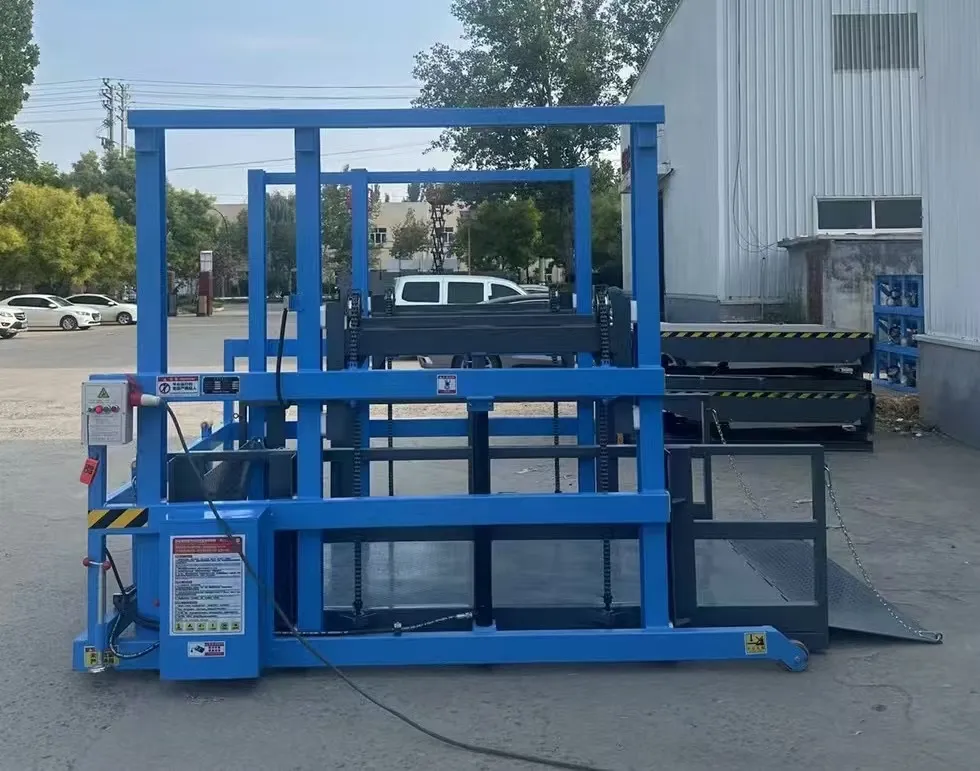

Mobile Loading Platform 11

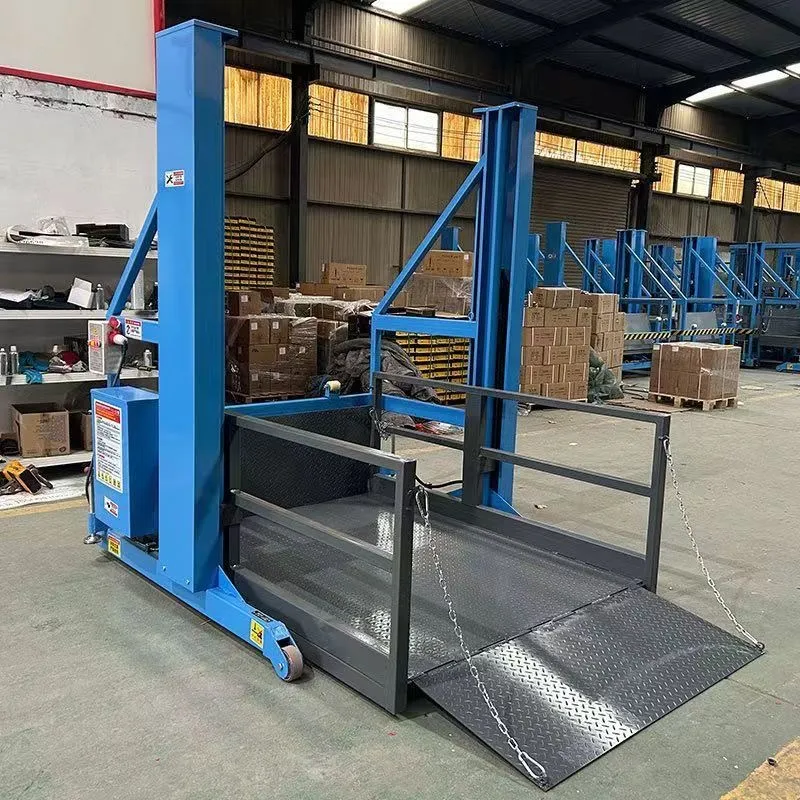

Mobile Loading Platform 12

Frequently Asked Questions

What is the maximum capacity of the SJYD platform?
The SJYD series is available in 2T (2000KG) and 3T (3000KG) load capacities to suit different industrial needs.
Is it necessary to dig a pit for installation?
No, this mobile loading and unloading platform is designed for ground-level use and does not require any pits, making it highly flexible.
How is the platform controlled?
The equipment uses a wireless remote control system operating at a safe 24V voltage for ease of use and worker safety.
Can the table size be customized for specific cargo?
Yes, while we offer standard sizes like 1600*2000mm and 2000*2600mm, the table size is fully customizable based on your requirements.
What safety features are included for power failures?
The platform is equipped with an emergency descending device that allows it to be lowered safely even during a power outage.
What materials are used for the platform panel?
The panel is constructed from 4.5mm patterned steel plate, providing a rugged, non-slip surface for safe loading and unloading.
