| Application | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane | Lift Mechanism | Telescoping Lift |
| Carrying Capacity | Weight Level | Moves | Stationary |
| Driven Type | Hydraulic | Running Mode | Stationary |
| Feature | Explosion-Proof, Insulating | Certification | GS, CE, RoHS, ISO 9001 |
| Material | Steel | Load | 6000-15000kgs |
| Power Source | Manual | HS Code | 8428909090 |

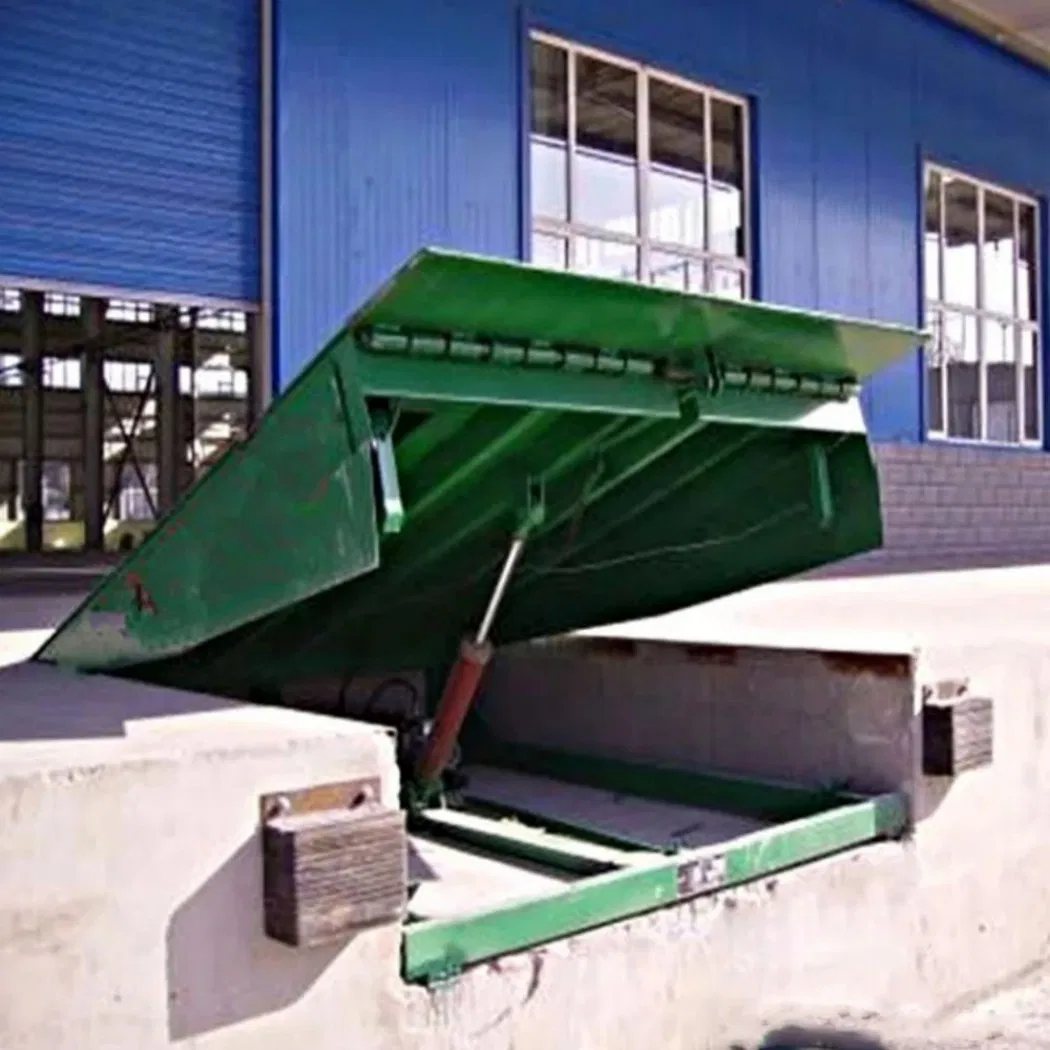

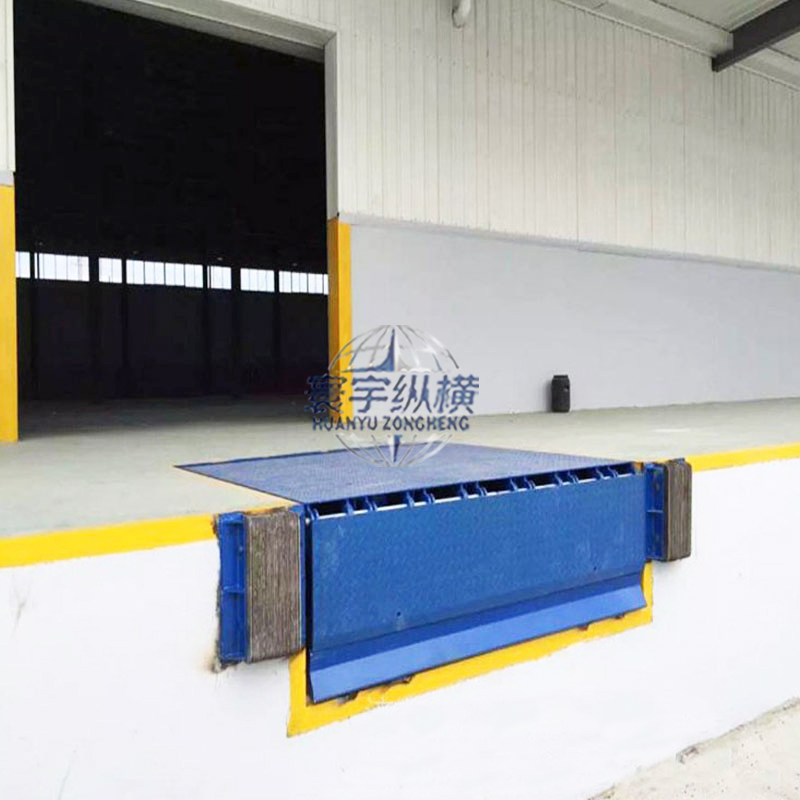

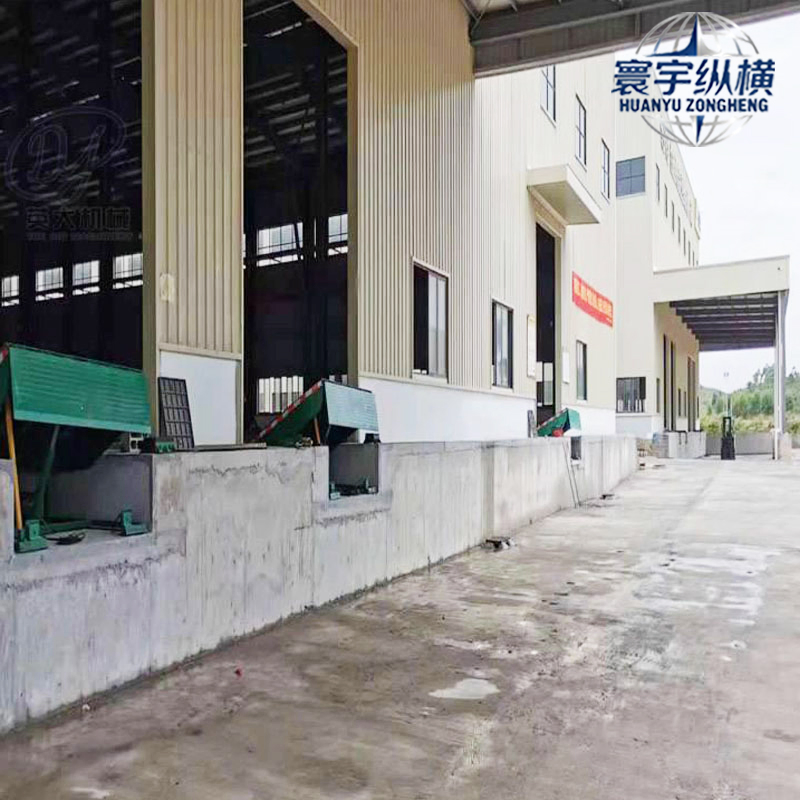

The Dock Leveler is designed for use in docks, logistics terminals, cold storage platforms and other locations where the efficient loading and unloading of goods is essential.

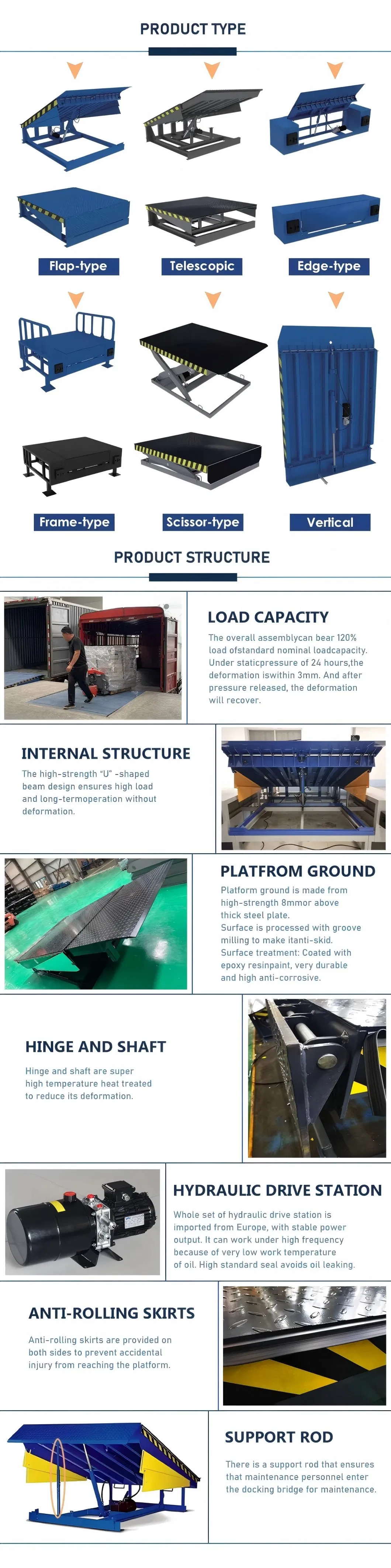

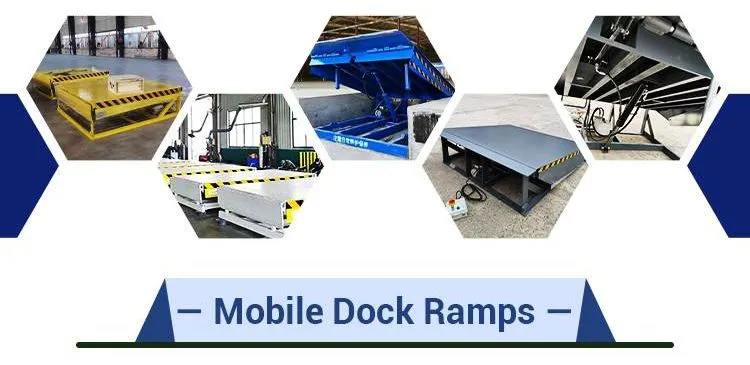

We offer a wide range of dock levelling solutions, including Hydraulic dock levelers, Telescoping lip dock levelers, Mechanical dock levelers, Vertical standing dock levelers, Air-powered dock levelers, EOM dock levelers and EOD dock levelers.

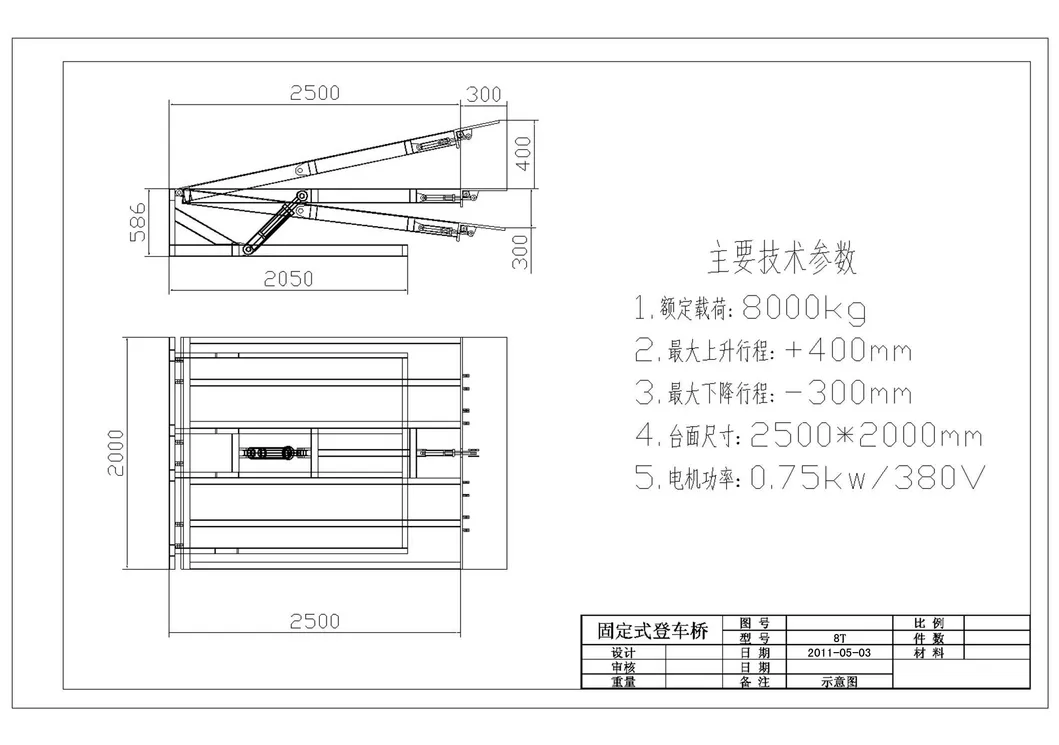

| Model | Capacity (T) | Platform Size | Distance (mm) | Lip Board (mm) | Motor Power |
|---|---|---|---|---|---|
| DCGQ6 | 6 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ8 | 8 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ10 | 10 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ12 | 12 | 2500*2000mm | 100 | 400mm | 0.75KW |

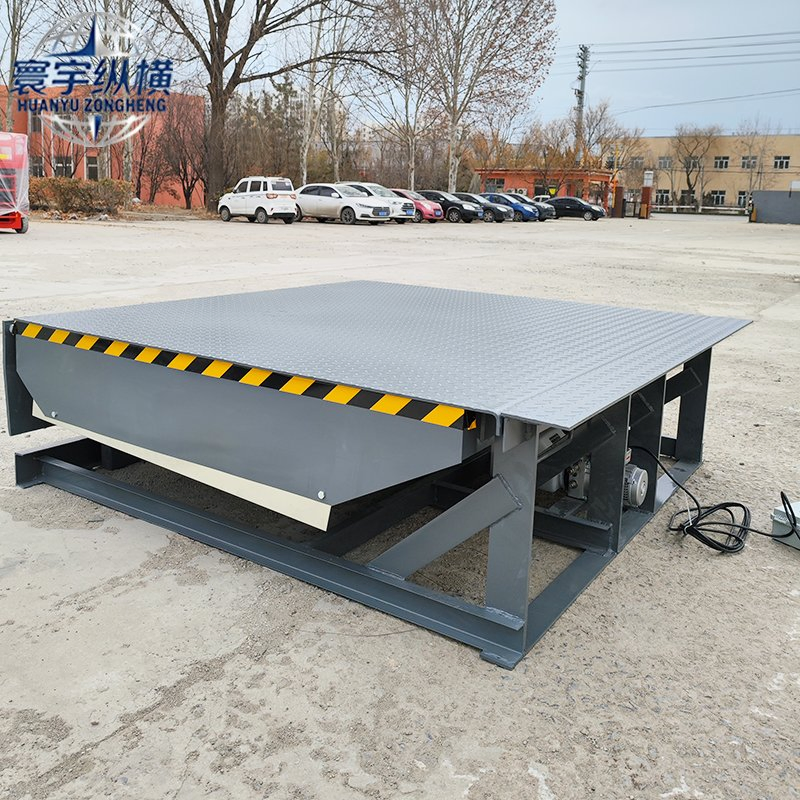

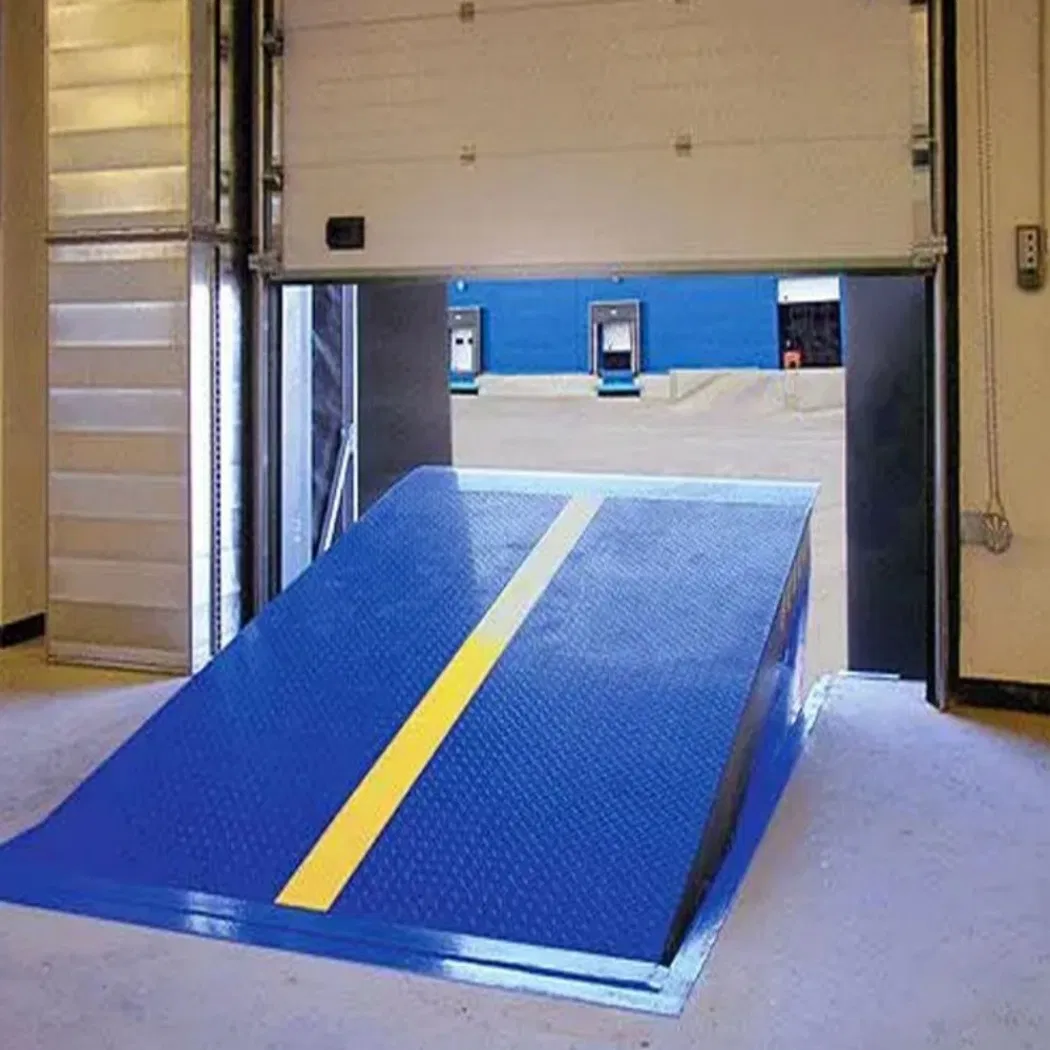

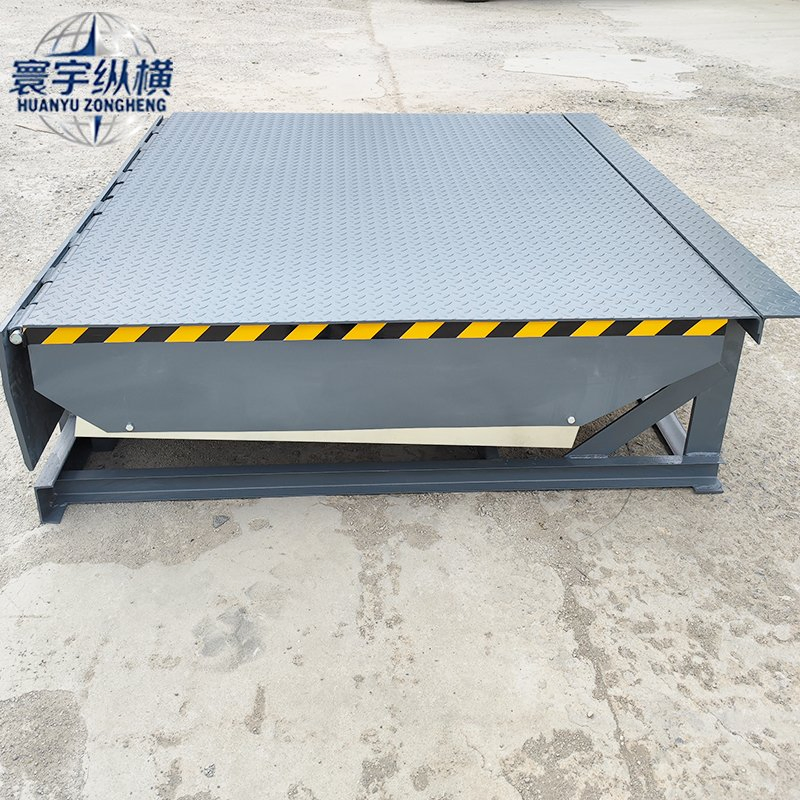

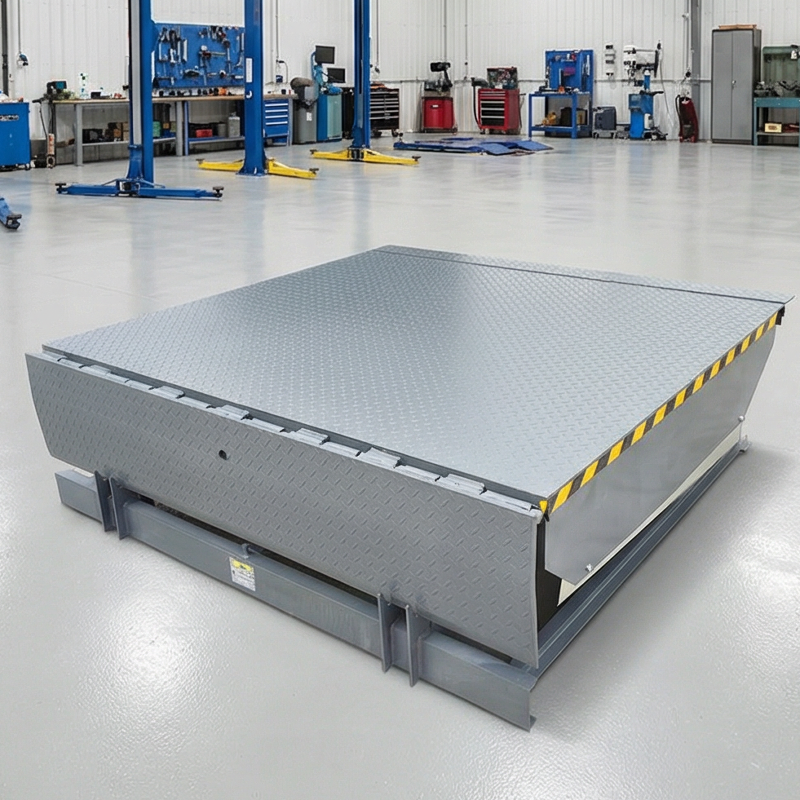

Fixed Hydraulic Dock Leveler is an excellent auxiliary equipment for efficient material handling. It can move freely within containers, providing lightweight and efficient operation. Our loading docks are equipped with anti-slip surfaces, anti-crush aprons, and emergency stop devices to minimize accident risks.
| System | Free maintenance design idea for a long run using application. |

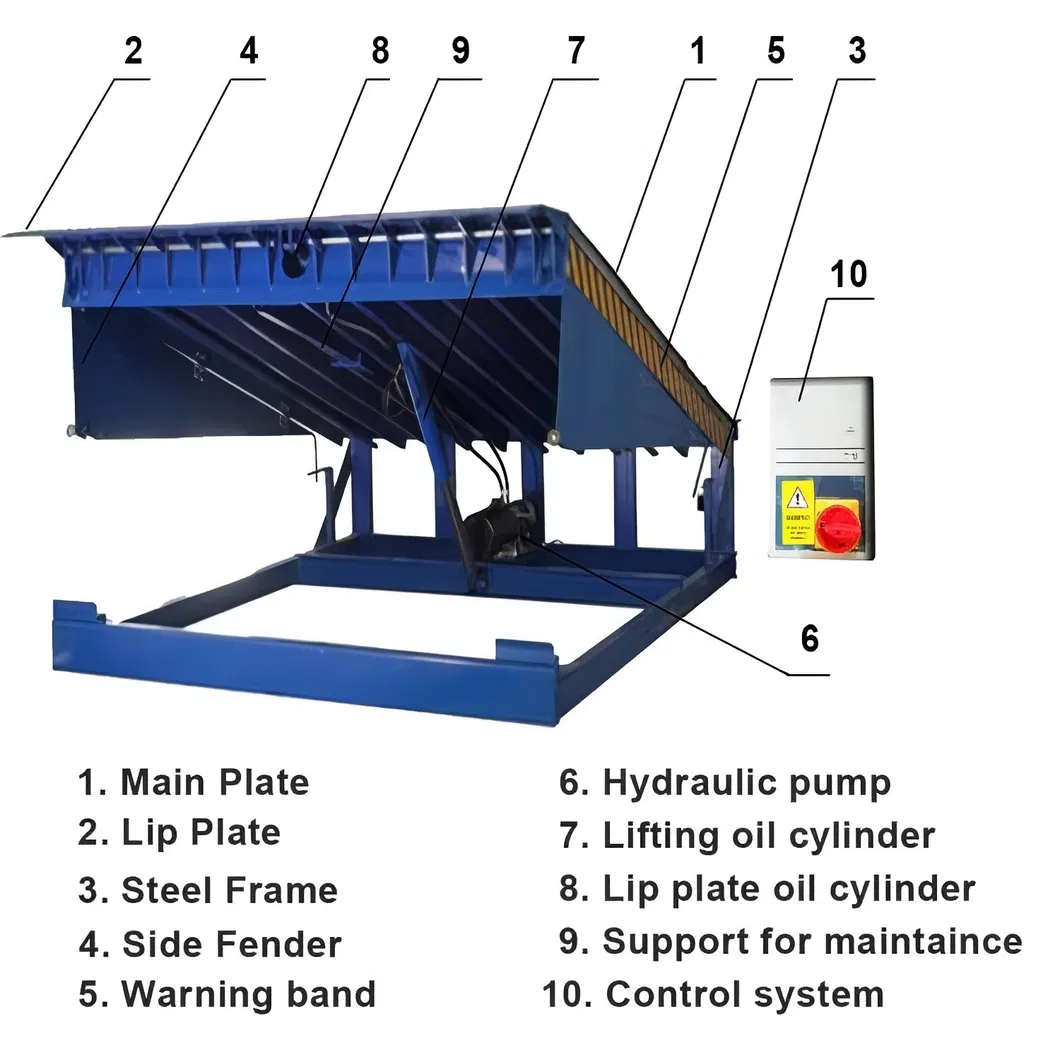

| Design | Hydraulic driving system for main deck and lip. Pump, pipe, and tank integrated under the deck. |
| Safety | Full range foot guard, penetrating safety support bar, and hydraulic velocity fuse for emergency stops. |
| Structure | Main plate made of 8mm high strength non-slip steel. Extension lip 15mm thickness. 14# I-beam steel reinforcement. |
Our facility is a modern technology-based manufacturing enterprise integrating design, production, sales, and installation. Our product portfolio includes Wrapping Machines, lifting work platforms, and vehicle boarding bridges. Our equipment has obtained ISO system certification and CE safety certification.
